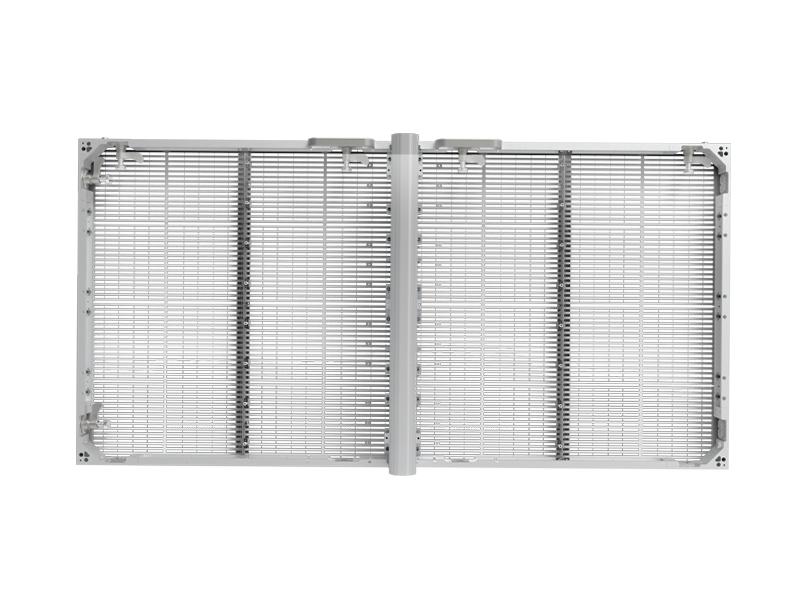

High Brightness Clear LED Display Trans Eyes

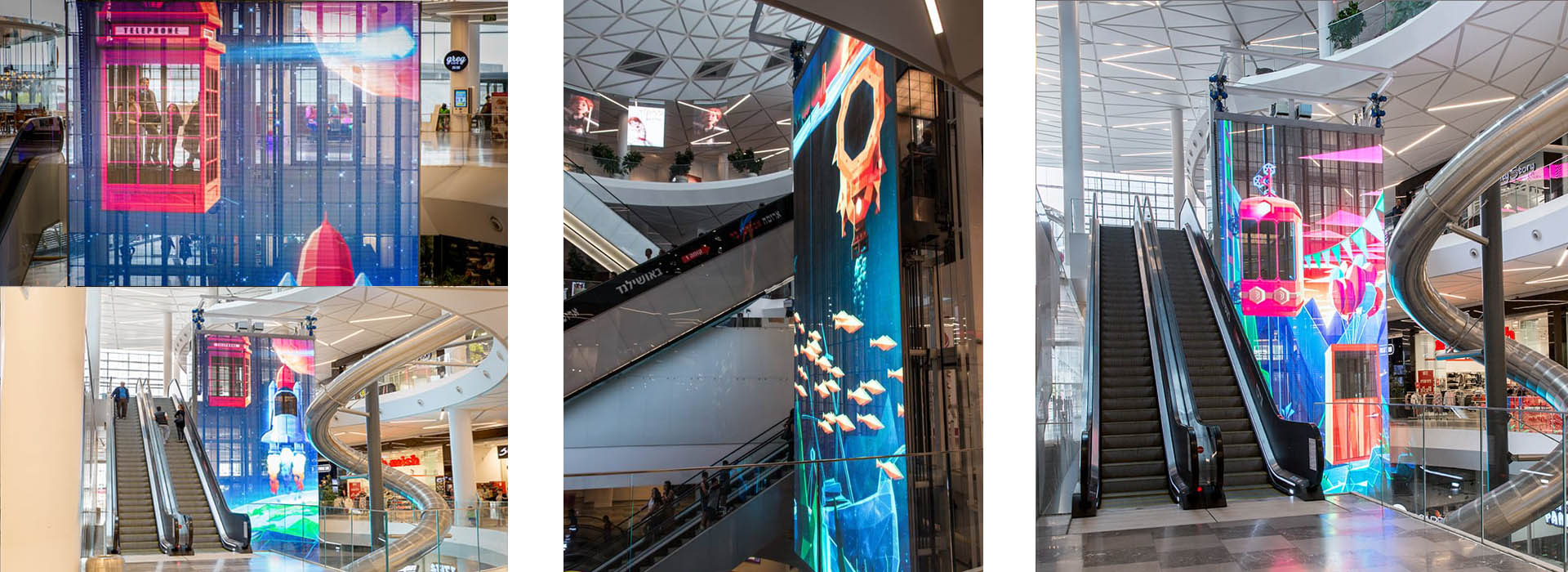

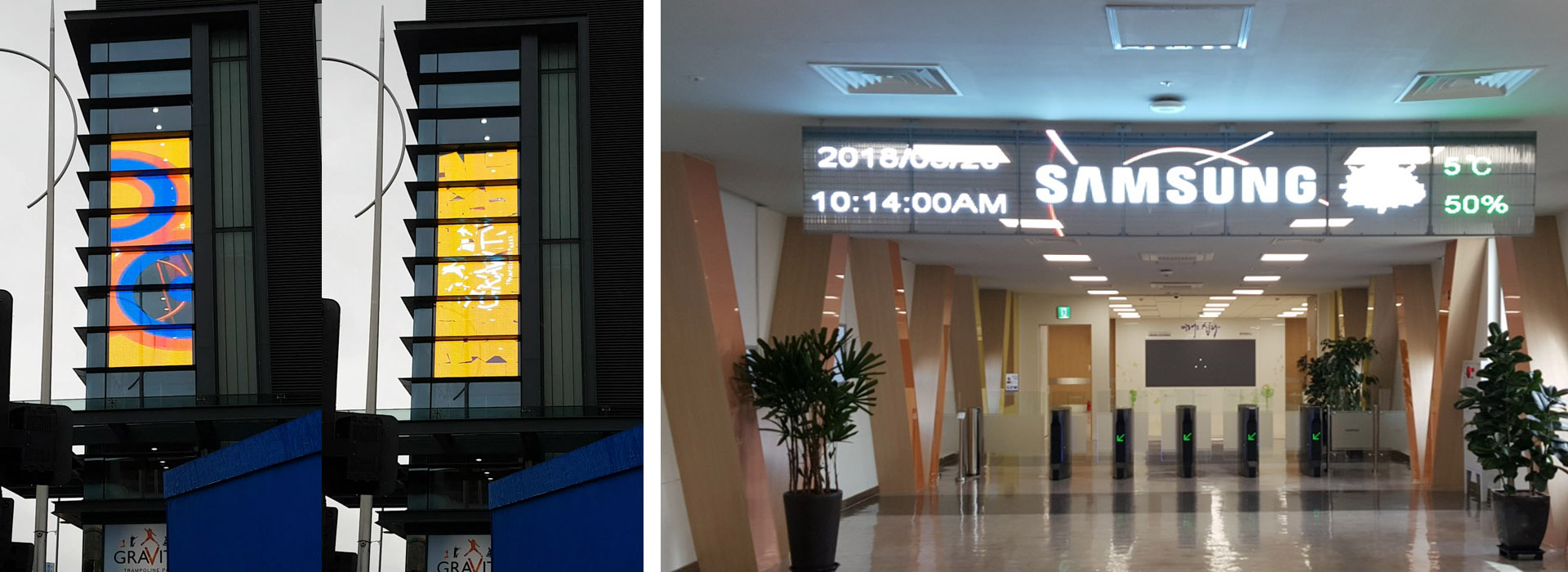

Huasuny is one of the first Transparent LED screen manufacturers in China. We have done a lot of transparent LED display projects for airport, retail store, shopping mall, exhibition etc.

1.Ultra thin and light weight

2. High transparency
3. Easy to set up and maintain
4. Front and rear service
5. Panel sizes can be customized

Inquiry now Brochure Download

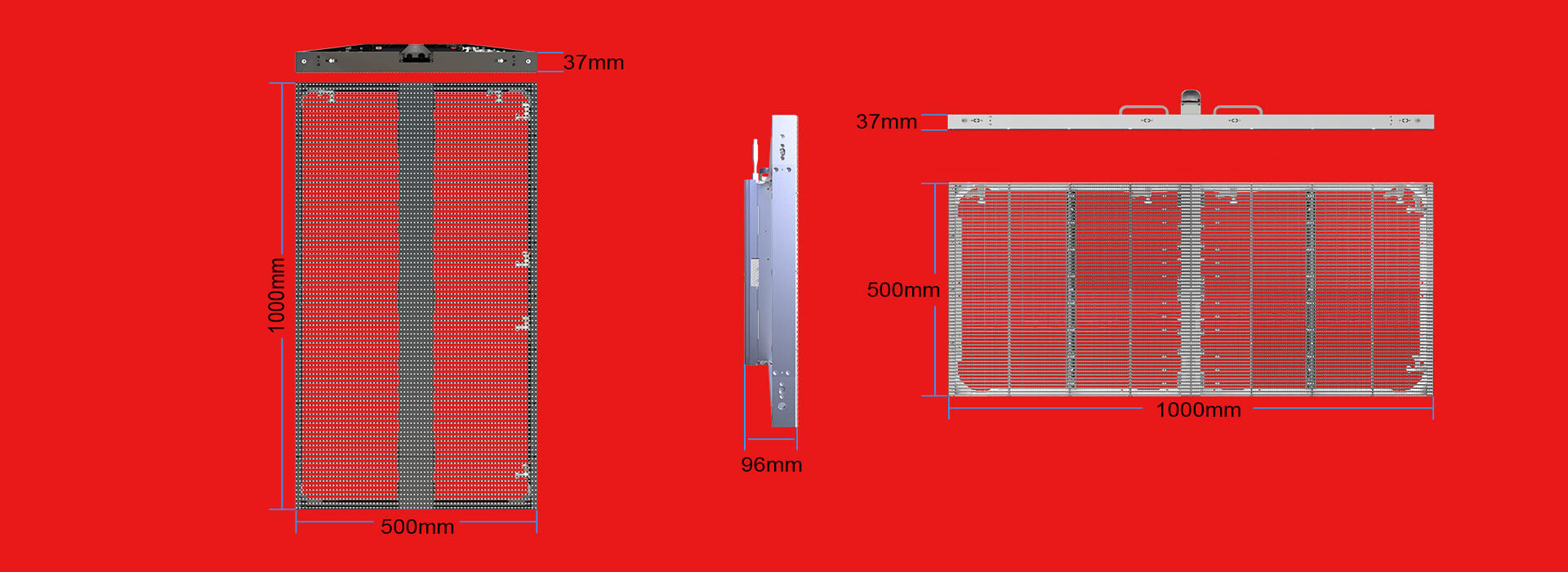

Slim and Exquisite Appearance Design

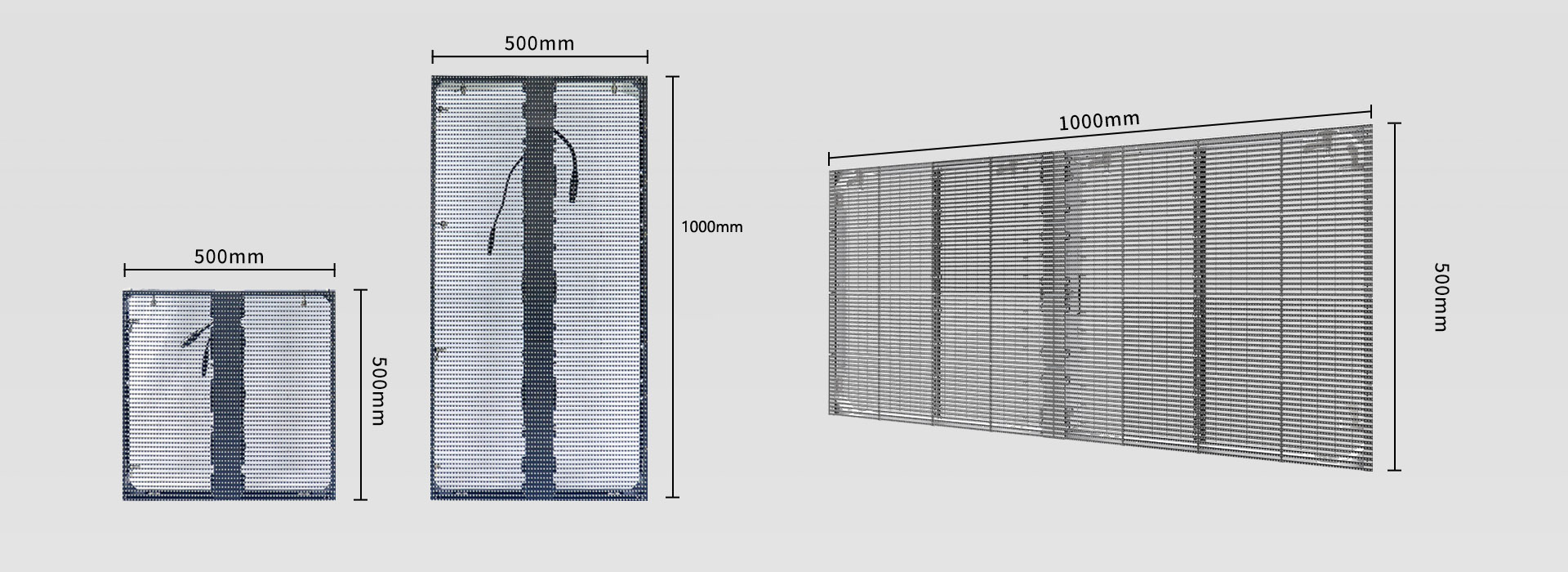

Beautiful standard cabinet. Dimensions: 500mm x 500mm; 500mm x1000mm; 1000mm x 500mm. Sizes and frame color also can be customized.

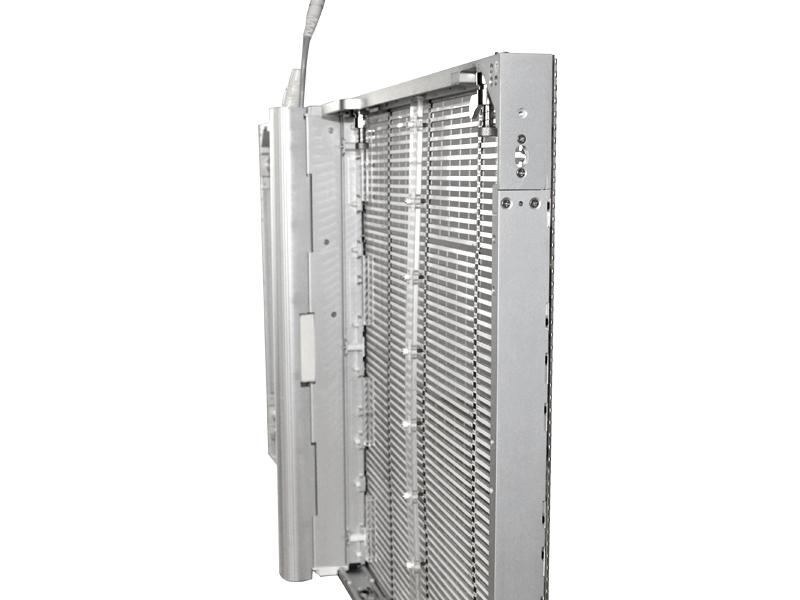

Ultra Thin and Light Weight

Weight is less than 10kg per square meter.

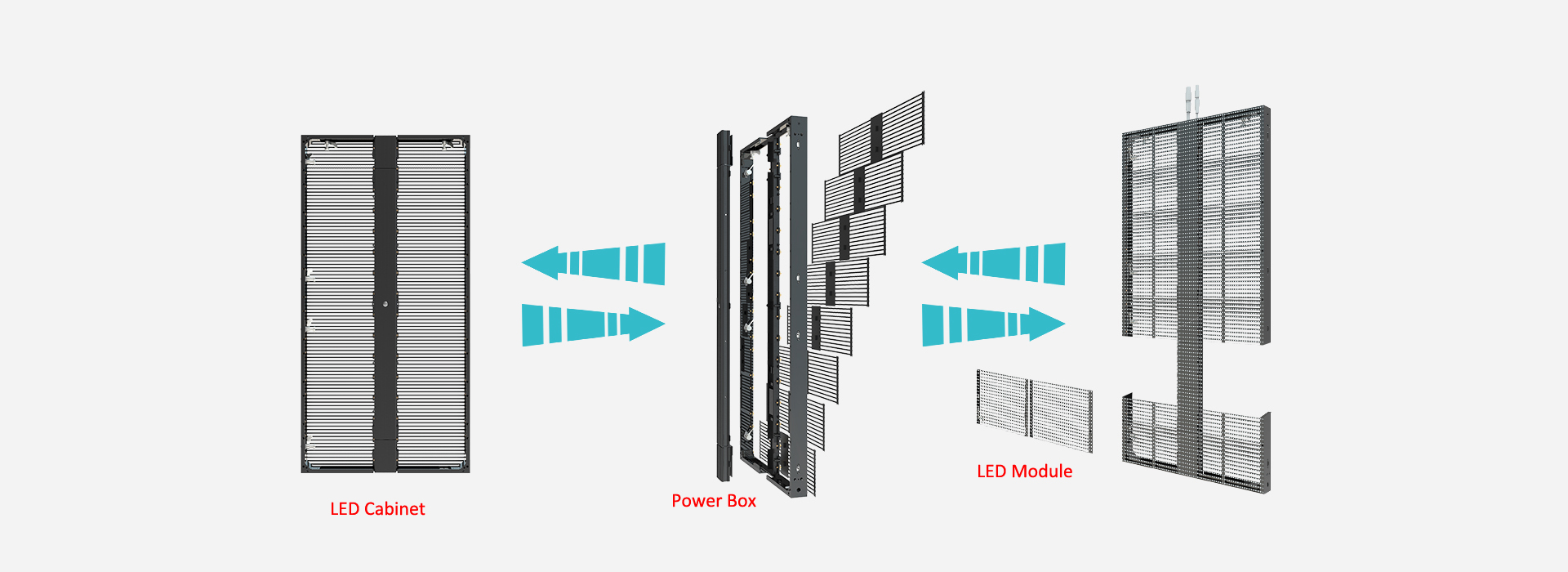

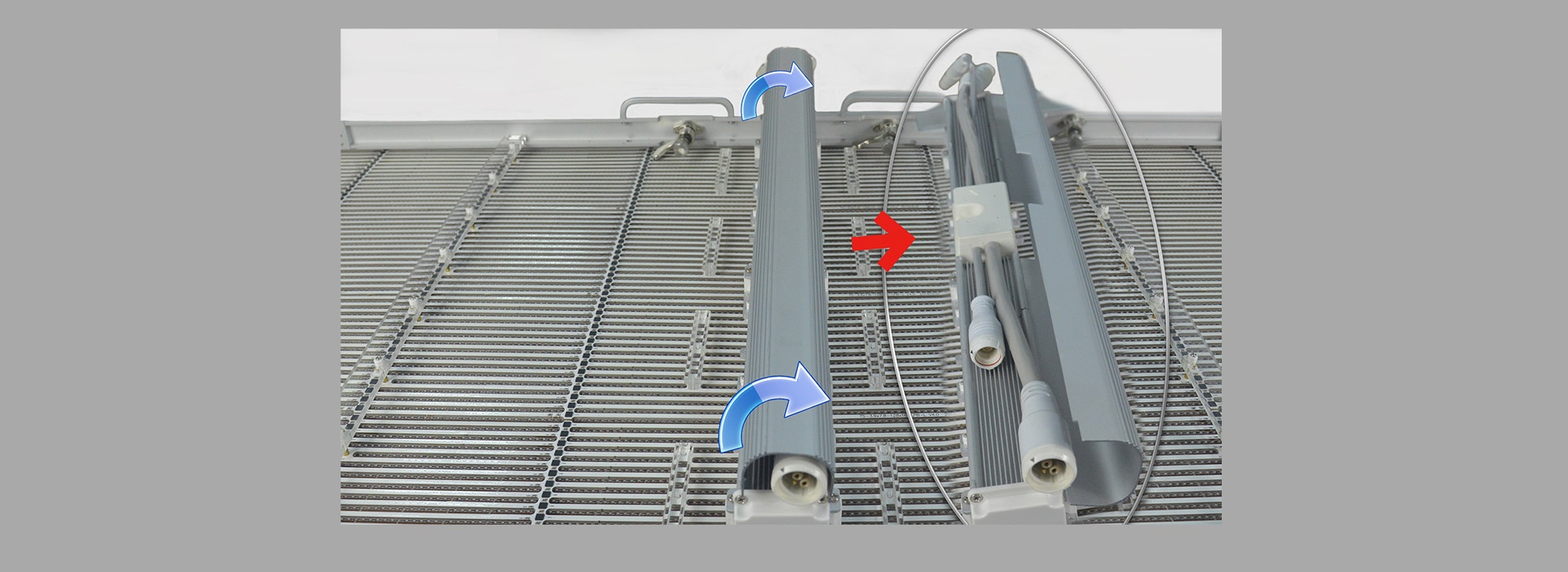

Modular Design, Simple and Strong Structure for Easy Maintenance

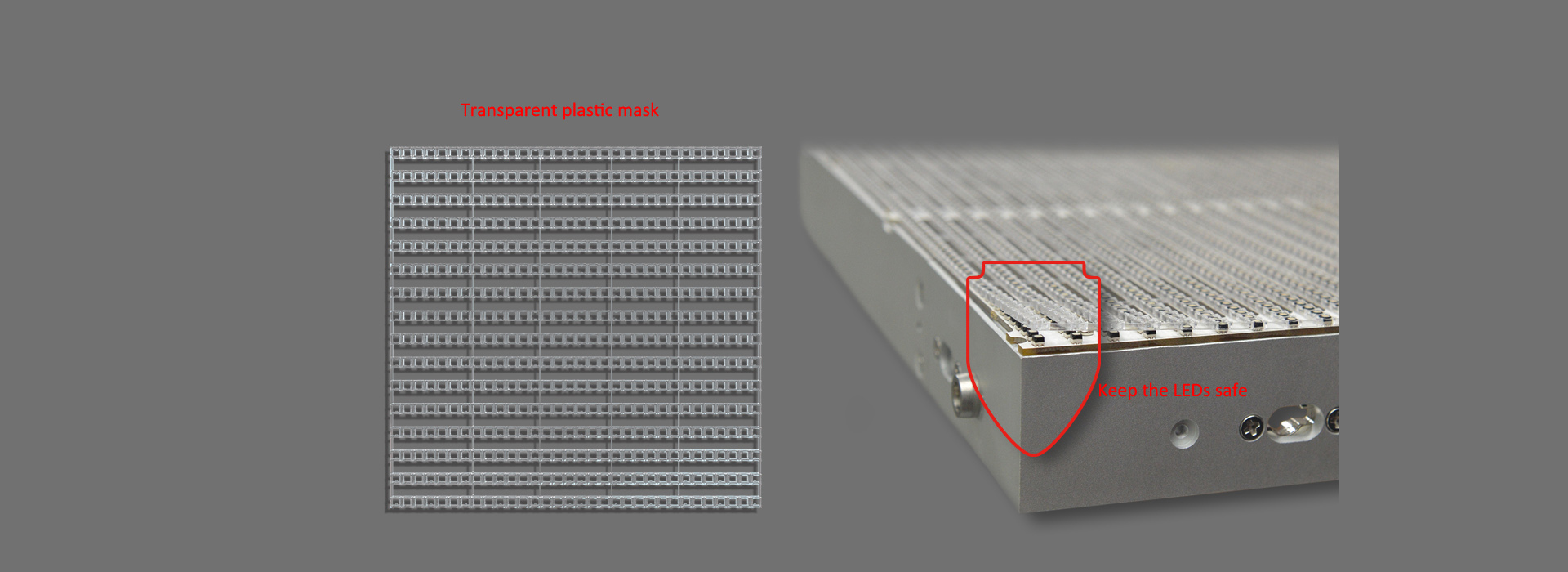

Unique Transparent Plastic Mask Keeps the LEDs Safe and Transparent.

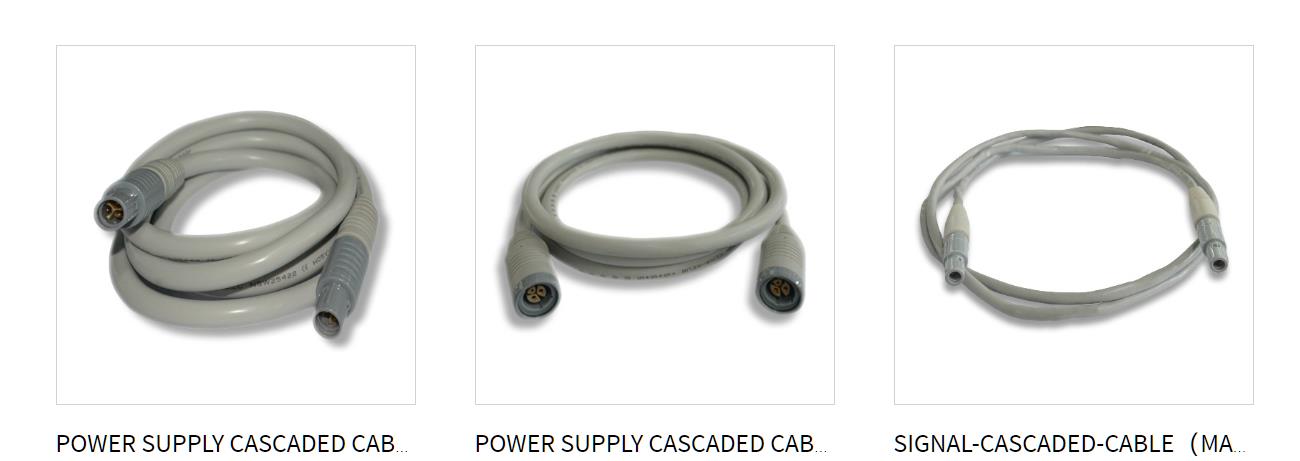

Hidden Cables Look More Simple and Neater

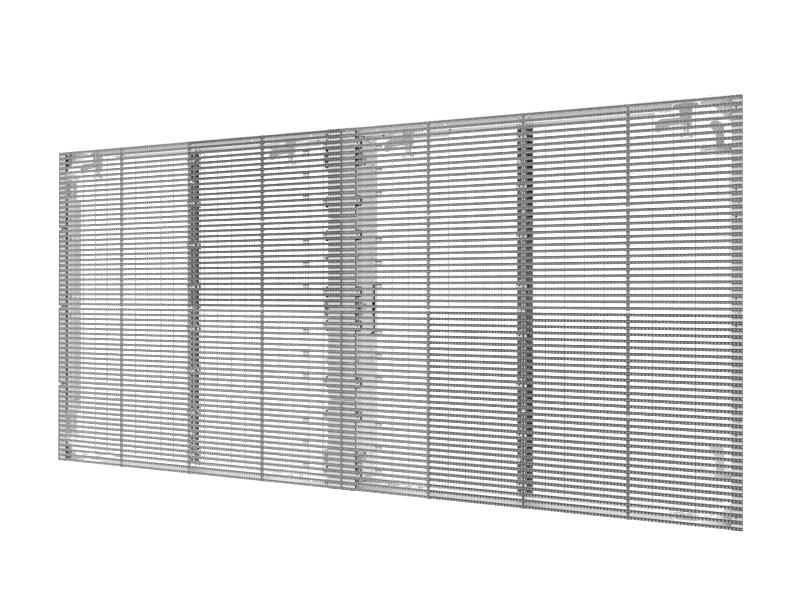

More Than 60% Transparency, Amzing Visual Effect

Specification

Model	TS-3	TS-6	TS-10
Pixel Pitch (mm)	X:3.9/Y:7.8	X:6.94/Y:10.42	X:10.42/Y:10.42
Pixel Density (pixel/㎡)	32768	13824	9216
Pixel Configuration	RGB 3-IN-1 SMD LED
Brightness White (Nits)	1500/3500	1500/4500	1500/4500
Optimal Visual Distance (m)	5	8	12
Transparency	60%	70%	70%
Recommend Size (W*H)	1000x500	1000x500	1000x500
Size can be customized (mm)	1000x500	1000x500	1000x500
Max Power Consumption (w/m²)	300/600	330/680	330/680
Average Power Consumption (w/m²)	100/200	110/225	110/225
Weight (kg/panel)	5	5	5
Power Input	100V ~ 240V AC, 50/60Hz
Gray Scale (bit)	13
Refresh Rate (Hz)	3840HZ
View Angle	Horizontal:120°; Vertical: 120°
Drive Mode	1/8	1/4	1/3
Signal Input	AV, S-Video, VGA, CVBS, HDMI, DVI, etc.
Body Material	Aluminium, acrylic
IP Rating	IP 20
Operating Temp./Humidity	-40℃ ~ +60℃/10%-90% RH

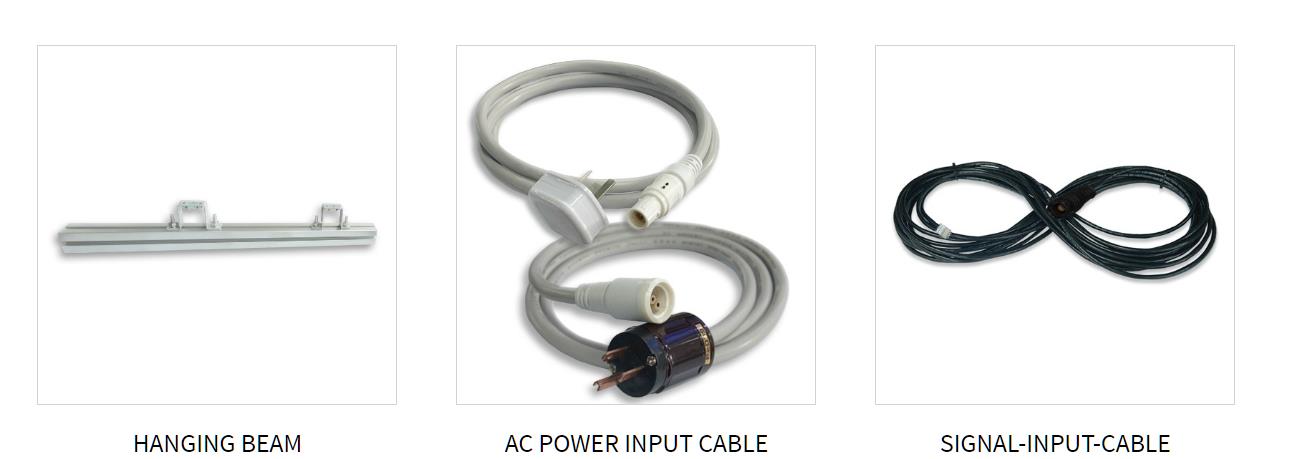

Installation	Hanging/Stacking

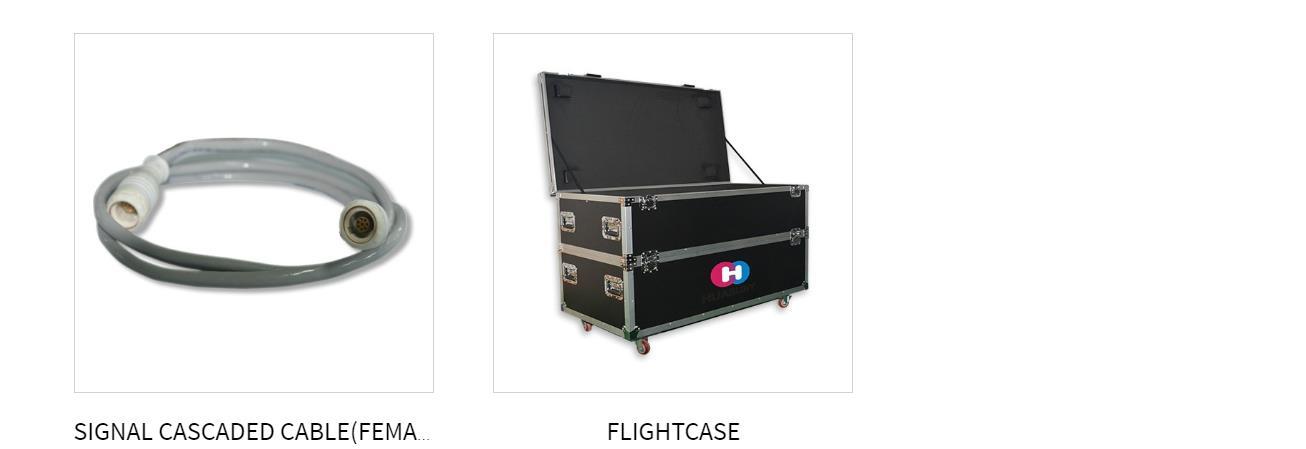

Package	Wooden case/Flight case
Certificates	CE, FCC, RoHS
