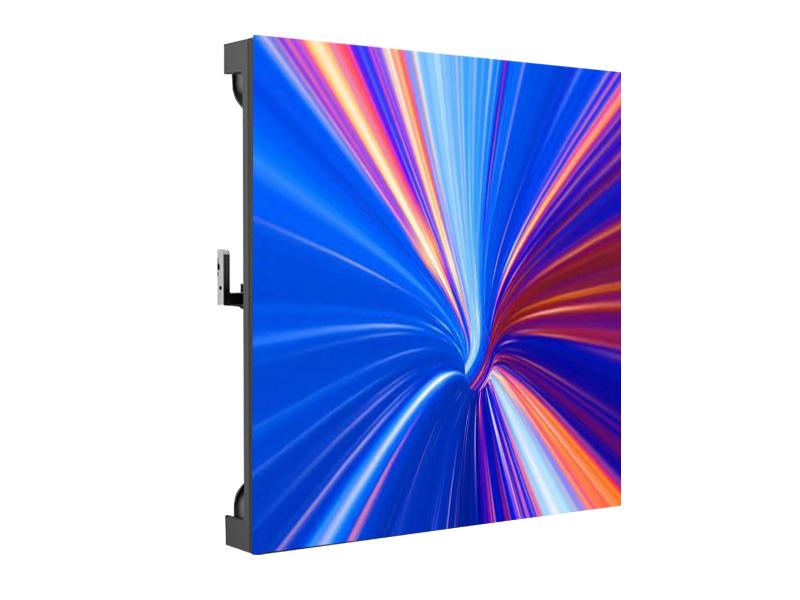

Outdoor Rental LED Display XO Panel

1. High quality indoor and outdoor stage LED screen.

2. Unique X structure design, safe and reliable.

3. Magnesium alloy materials frame, light weight and high efficient for installation and transportation.

4. Front and rear maintenance.

5. Pixel pitch P2.9, P3.9 and P4.8, perfect for stage, exhibition,entertainment,sports, large events etc.

6. All Huasuny X/XO panels can be used on X Rover Plus multifunction LED display integrated with video, lighting and movement.

Inquiry now

Innovative Design, High Performance Stage LED Screen

Unique X structure design. Contrast of 5000:1 and high refresh rate makes the visual impact vivid.

Ultra Thin,Light Weight And Reliable

Magnesium alloy materials frame,7kg/panel,

supporting 300kg pulling force , stable and safe.

Concave and Convex Setup For Curved LED Display

Curve locks system available for -10°~ +10, perfect for creative video walls design.

Front Service for Fast and Easy On-Site Maintenance

Modular design, 30 seconds to replace a power box;

Magnetic tool for module front service ; free of tool for rear service in 10 seconds.

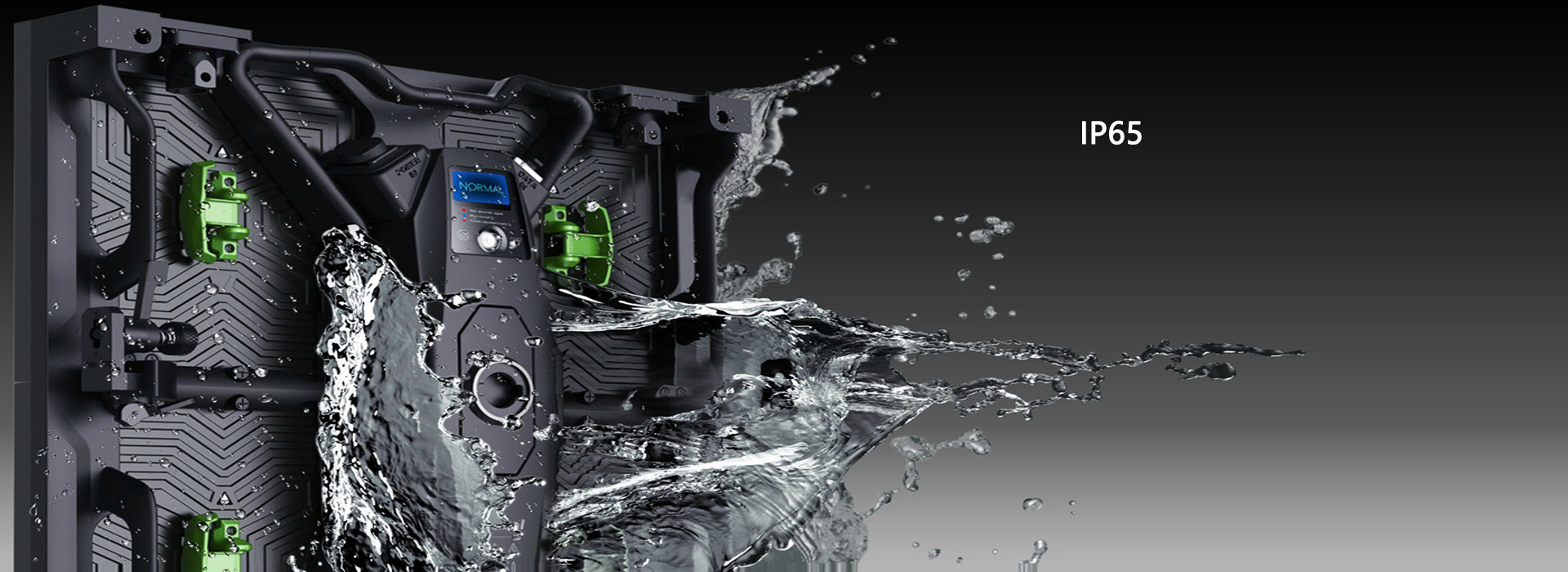

Waterproof For All Weather Applications

High brightness and IP65 for outdoor.

Applications

Specification

Item	X Panel Indoor				XO Panel Outdoor
Model	X 2.6	X 2.9	X 3.9	X 4.8	XO 3.9	XO 4.8
Pixel Pitch (mm)	2.604	2.9	3.9	4.8	3.9	4.8
Pixel Density(Pixels/m²)	147456	112896	65536	43264	65536	43264
Brightness (NITS)	1000/4000	1200	1200	1200	2500(Black LED)	2500(Black LED)
Brightness (NITS)	1000/4000	1200	1200	1200	3500(White LED)	3500(White LED)
Module Resolution (Pixels)	192x192	168x168	128x128	104x104	128x128	104x104
Panel Size (mm)	500x500x94	500x500x94	500x500x94	500x500x94	500x500x94	500x500x94
LED Type	SMD RGB 1515	SMD RGB 2020	SMD RGB 2020	SMD RGB 2020	SMD RGB 1921	SMD RGB 1921
LED Module Size (mm)	250x250	250x250	250x250	250x250	250x250	250x250
View Angle (Hor/Vert)	160°/140°	160°/140°	160°/140°	160°/140°	160°/140°	160°/140°
Refresh Rate (Hz)	3840	3840	3840	3840	3840	3840
Contrast	5000:1
Scan Mode	1/32	1/32	1/16	1/13	1/16	1/13
IP Rating	IP 40				IP65
Grey Scale (Bit)	16
Colors (Trillion)	281
Panel Weight (kgs)	7.5
Power Consumption (w/tile)	160
Power Consumption (w/m²)	Max 640; Avg220
Max Power Supply Cascade	10 tiles (100-120V)
Max Power Supply Cascade	20 tiles (200-240V)
Curve (Optional)	-10° ~ +10°
Max Stacking (Tiles)	12
Max Hanging (Tiles)	20
Life Span (Hours)	≥50000
Used for X Rover Plus Series	YES
Body Material	Magnesium alloy
Operating Temp./Humidity	-40 ℃ ~ +60 ℃/10% ~ 90% RH
Storage Temp./Humidity	-40 ℃ ~ +60 ℃/10% ~ 90% RH
Signal Input	AV,S-Video,VGA,CVBS,HDMI,DVI, etc
Power Input	100~240VAC/50~60Hz
Maintenance	Front & Rear
Certification	CE,FCC,RoHS,IP65
