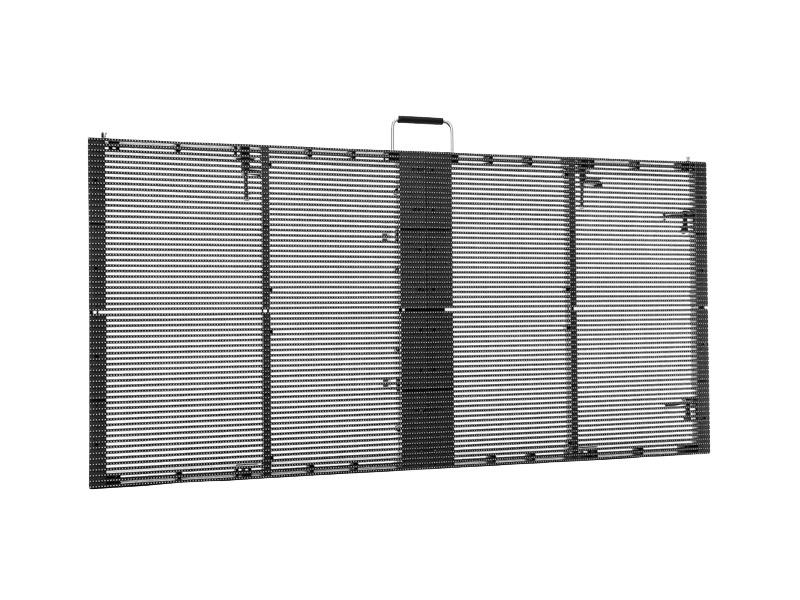

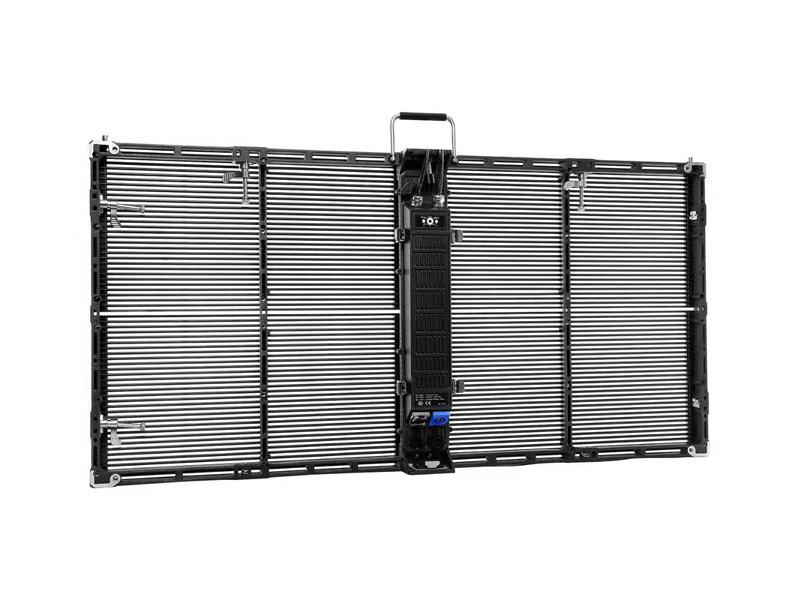

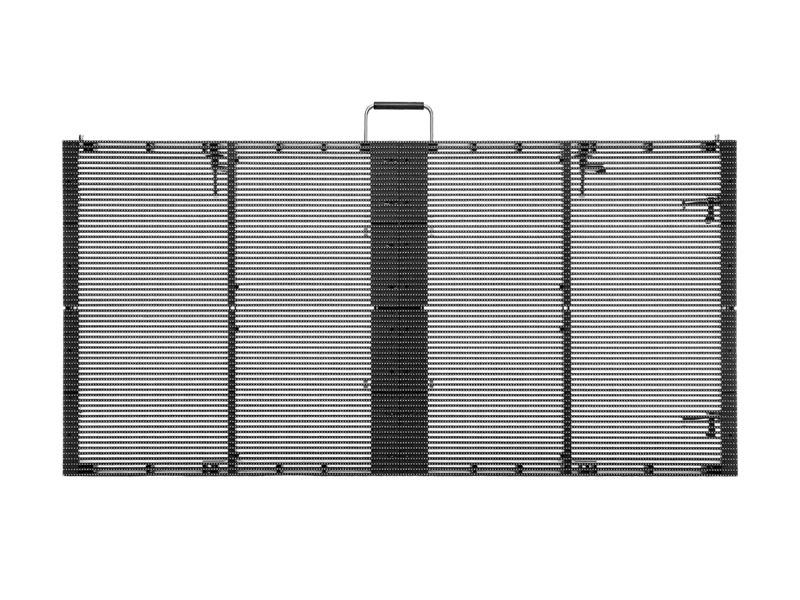

Outdoor Transparent LED Screen Glass LED Display

1. Outdoor Transparent LED Display are widely used for outdoor fixed and rental applications.

2. Standard cabinet size, easy and fast installation.

3. High brightness and IP65.

Inquiry now

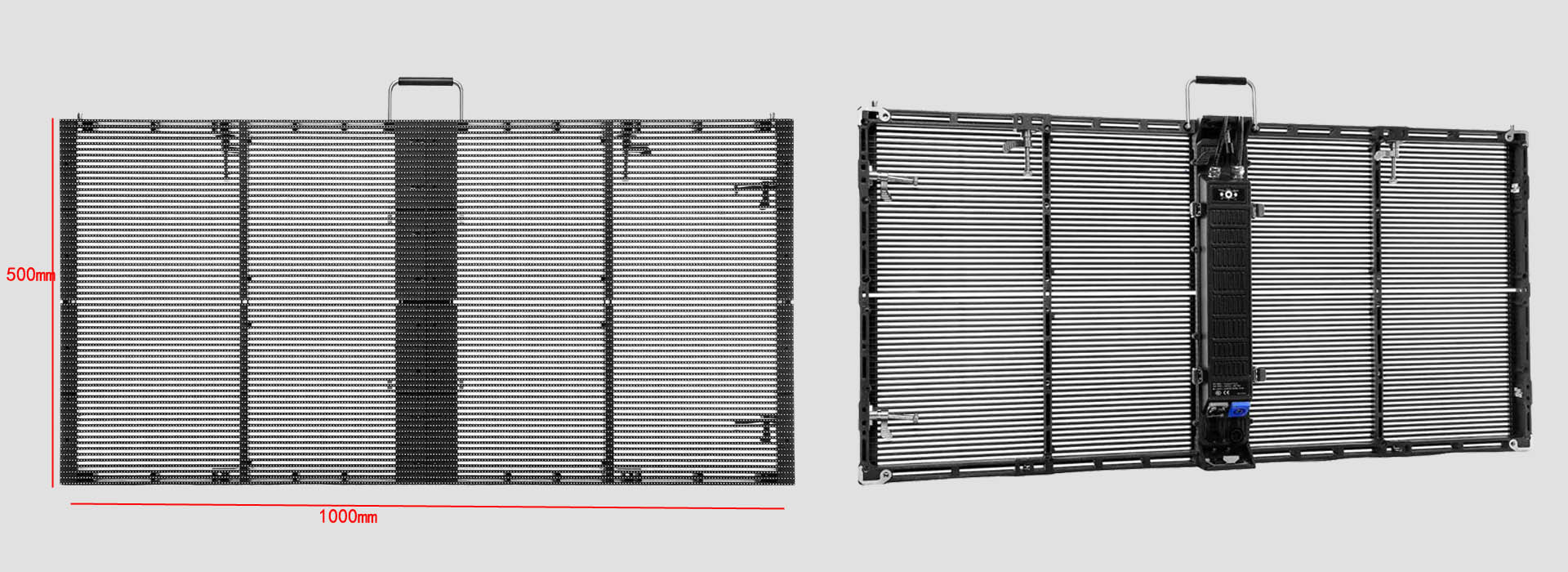

Standard Cabinet Size 500mm x 1000mm. High Brightness and Up to 70% Transparency

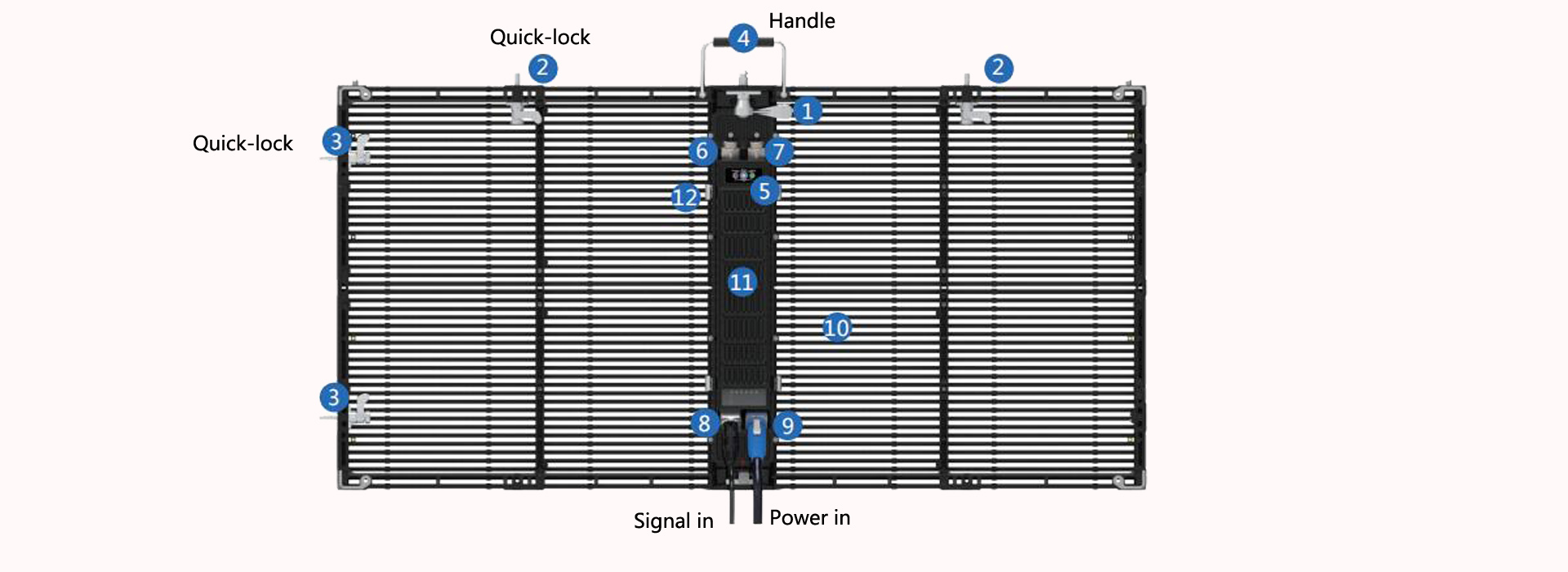

Utra Thin and Light Weight. Quick-locks Design for Easy & Fast Installation

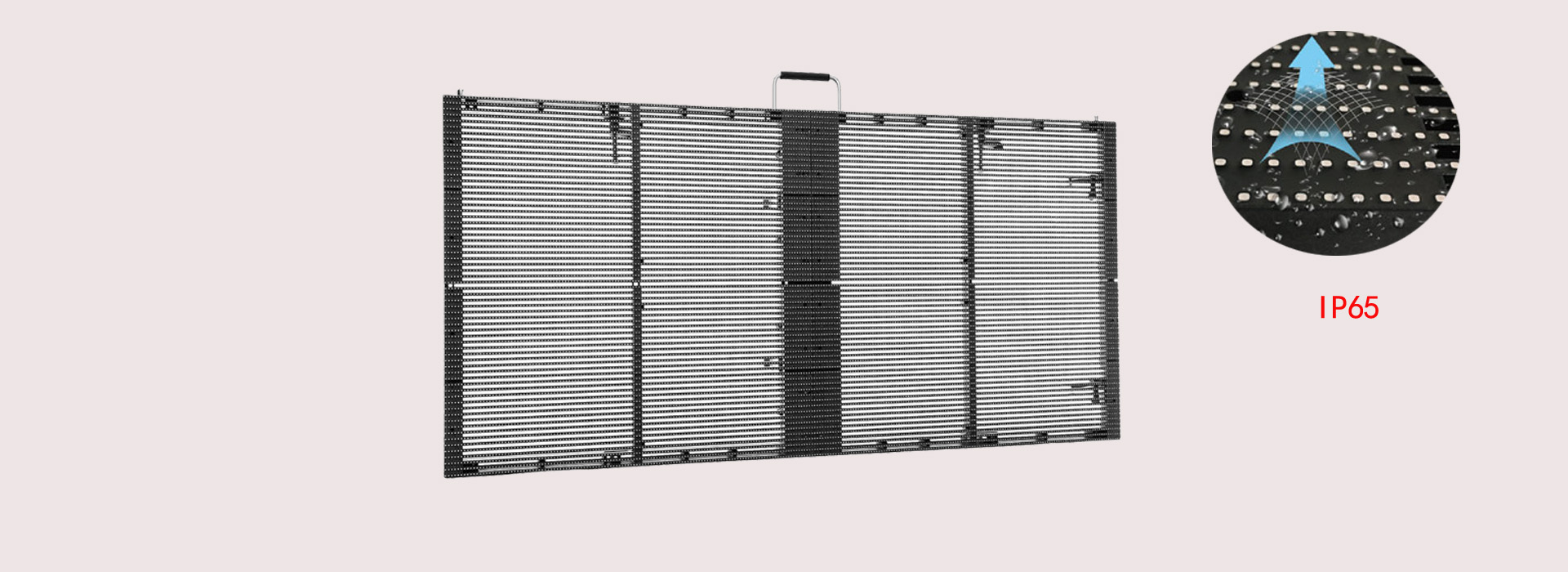

Special Glue Encapsulation Technology IP65 for All Weather Uses

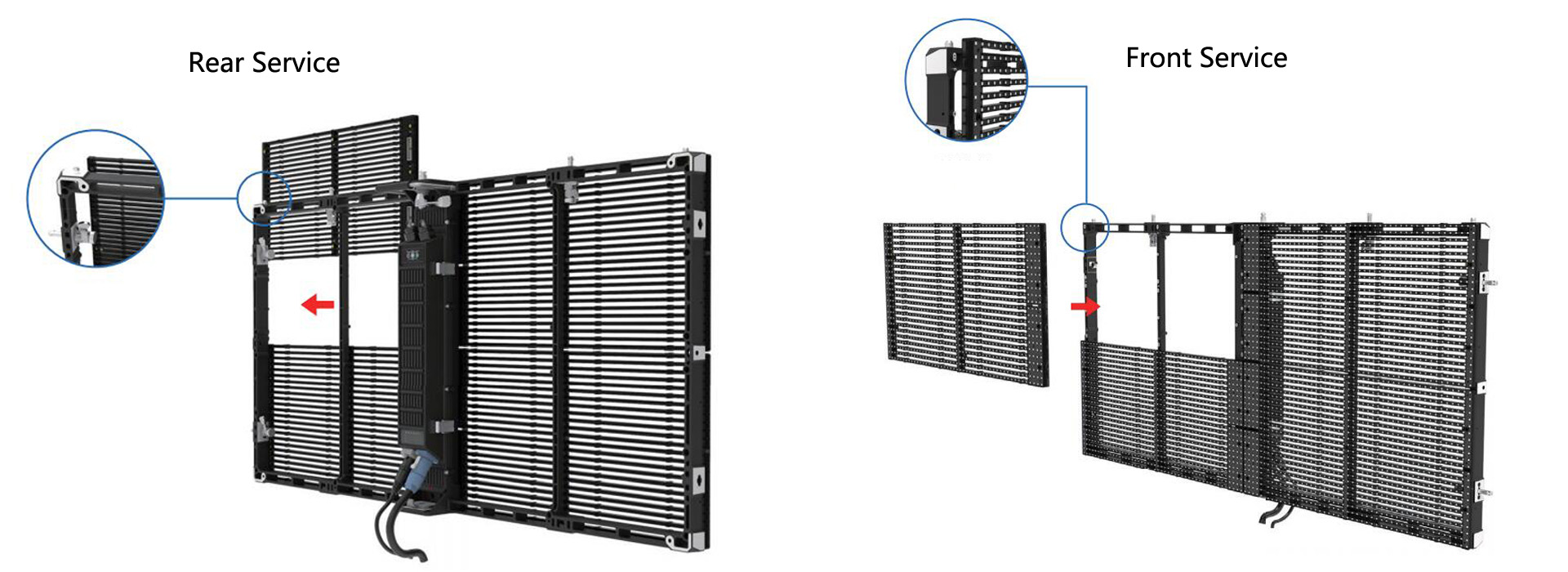

Front & Rear Service

Applications

Specification

Model	TSO-3	TSO-5	TSO-10	TSO-15
Pixel Pitch (mm)	X:3.9/Y:7.8	X:5.2/Y:10.42	X:10.42/Y:10.42	X:15.6/Y:15.6
Pixel Density (pixel/㎡)	32768	18432	9216	4096
Pixel Configuration	RGB 3-IN-1 SMD LED
Brightness White (Nits)	4500nits	4500nits	4500nits	6000nits
Optimal Visual Distance (m)	5	8	12	18
Transparency	55%	60%	65%	75%
Recommend Size (W*H)	1000*500	1000*500	1000*500	1000*500
Max Power Consumption (w/m²)	800	800	800	800
Average Power Consumption (w/m²)	260	260	260	260
Weight (kg/panel)	7.5	7.5	7.5	7.5
Power Input	100V ~ 240V AC, 50/60Hz
Gray Scale (bit)	13
Refresh Rate (Hz)	3840
View Angle	Horizontal:120°; Vertical: 120°
Signal Input	AV, S-Video, VGA, CVBS, HDMI, DVI, etc.
Body Material	Aluminium Frame
IP Rating	IP 65
Operating Temp./Humidity	-20℃ ~ +60℃/10%-90% RH
Installation	Hanging/Stacking
Package	Wooden case/Flight case
Certificates	CE, FCC, RoHS
