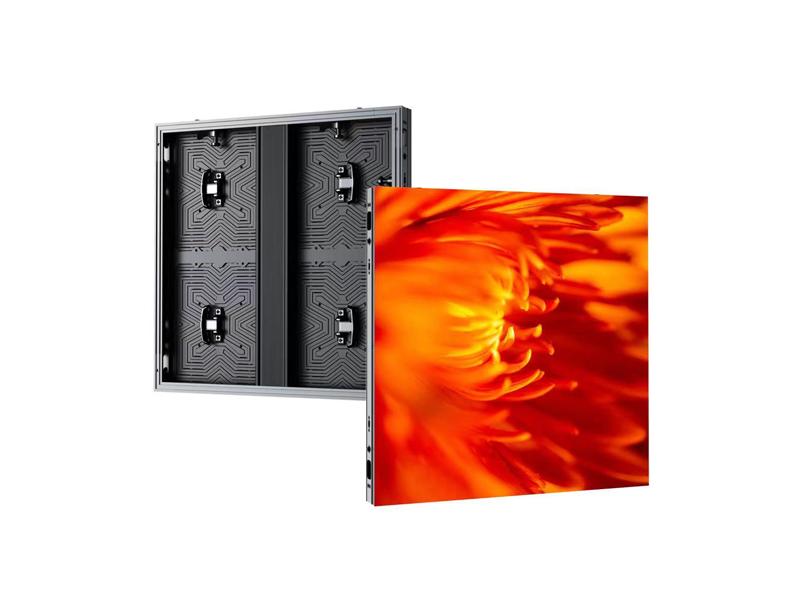

Unique Light Weight Indoor LED Screen Jade Series

Pixel pitches: 1.95, 2.6, 3.9, 4.8mm

800nits high brightness
Design flexibility
Ultra slim depth aluminium alloy cabinet

Four cabinet sizes available:

500*250mm,500*500mm

500*750mm,500*1000mm

IP40 secured design
Front or rear accessible

Inquiry now

Outstanding Effect of Display

16 Bits high-performance processing ICs with HDR technology, able to delivery a vivid image output even in low grade-scale mode.

Modular Design Technology

The Jade series offers four cabinet sizes, enabling a screen size configuration that fit the customer’s needs.

Multiple Installation Methods

Ultra-slim cabinet design, with 45mm edge thickness, is its most significant advantage.

This feature enables the Jade series to be installed and utilized in any type of venue without restriction.

Only 12kg/sqm, can be mounted directly on the wall without frame.

Also it supports hanging and stacking.

Front and Rear Installation and Maintenance

Jade series offers either front access or rear access, allowing customers to choose installation options

according to their environment and minimizing limitations in installation and maintenance.

Quick Installation

Seamless splice the cabinet with quick locks and magnetic latch module, easy to install and replace the modules.

High Visibility Under The Sunlight Designed for Window Facing LED Display

With a great brightness of 4,000nits, Jade series clearly delivers contents and attract public attention,

which is the ultimate display for outdoor visibility and enables clear visibility even when the viewer is wearing polarized sunglasses.

Adjusting Brightness Automatically

The screen brightness is automatically adjusted depending on the ambient light.

The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

Specification

Jade Indoor Display						Jade-II Window Facing Display
Model	Jade-1.9	Jade-2.6	Jade-2.9	Jade-3.9	Jade-4.8	Jade II-2.6	Jade II-2.9	Jade II-3.9
Pixel pitch (mm)	1.95	2.6	2.97	3.91	4.8	2.6	2.97	3.91
Module size (mm)	250x250
Pixel density (pixels/m²)	262144	147456	112896	65536	43264	147456	112896	65536
Module resolution (pixels)	256x256	192x192	168x168	128x128	104x104	192x192	168x168	128x128
Panel size（W*xHxT mm）	500mm x 250mm x 46mm \| 19.7'' x 9.84'' x 1.81'' 500mm x 500mm x 46mm \| 19.7'' x 19.7'' x 1.81'' 500mm x 750mm x 46mm \| 19.7'' x 29.52'' x 1.81'' 500mm x 1000mm x 46mm \| 19.7'' x 39.37'' x 1.81''
Brightness	800nits					4000nits
View angle（Hor/Vert）	160°/140°
Optimal visual distance	2.4m	3.2m	3.6m	4.7m	5.7m	3.2m	3.6m	4.7m
Refresh rate	3840Hz
Gray scale	14bit
Contrast	5000:1
Scan mode	1/32	1/32	1/28	1/16	1/13	1/32	1/28	1/16
Power consumption （max/avg）	720/240 W/m²
Power input	100~240VAC/50~60Hz
Working Voltage	DC 4.6V
Signal input	AV,S-Video,VGA,CVBS,HDMI,DVI
Control system	Nova
IP rating	IP40
Body material	Aluminum
Weight (kg/sq.m)	20 kg \| 44 lb
Max stacking /Tile	5
Max hanging/Tile	20
Life span	≥50000 H
Operating temperature	-20~+50℃
Maintenance	Front/rear
Certification	CE,FCC,RoHS
