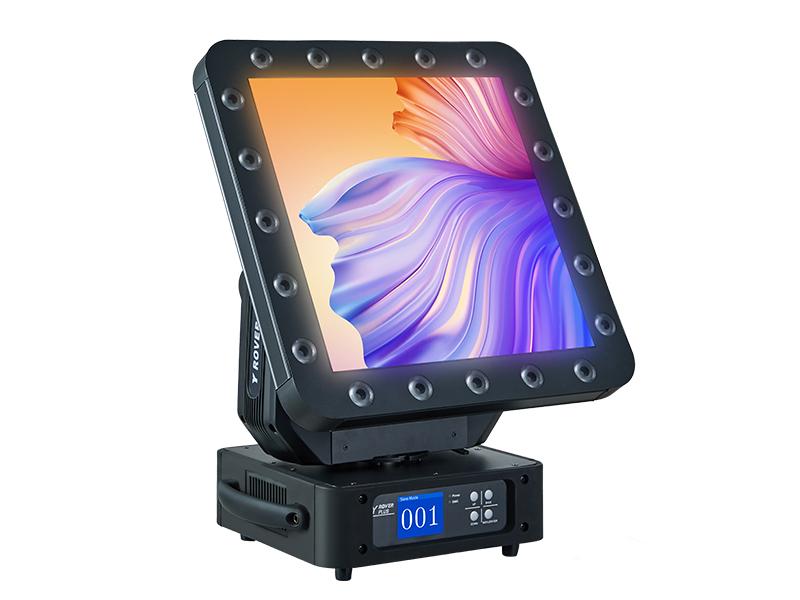

High Brightness Moving Head LED Display Y Rover

1. Pitch 2.6mm 4000 nits high-brightness LED screen, refresh rate 3840Hz image clarity.
2. Built in 20pcs high-power RGBW 4-in-1 LEDs with 8° high-quality PMMA lenses deliver sharp beams and professional lighting effects.
3. Lighting and video seamlessly integrated with stunning effect.
4. One model for multiple uses , avoid redundant investments.

Inquiry now

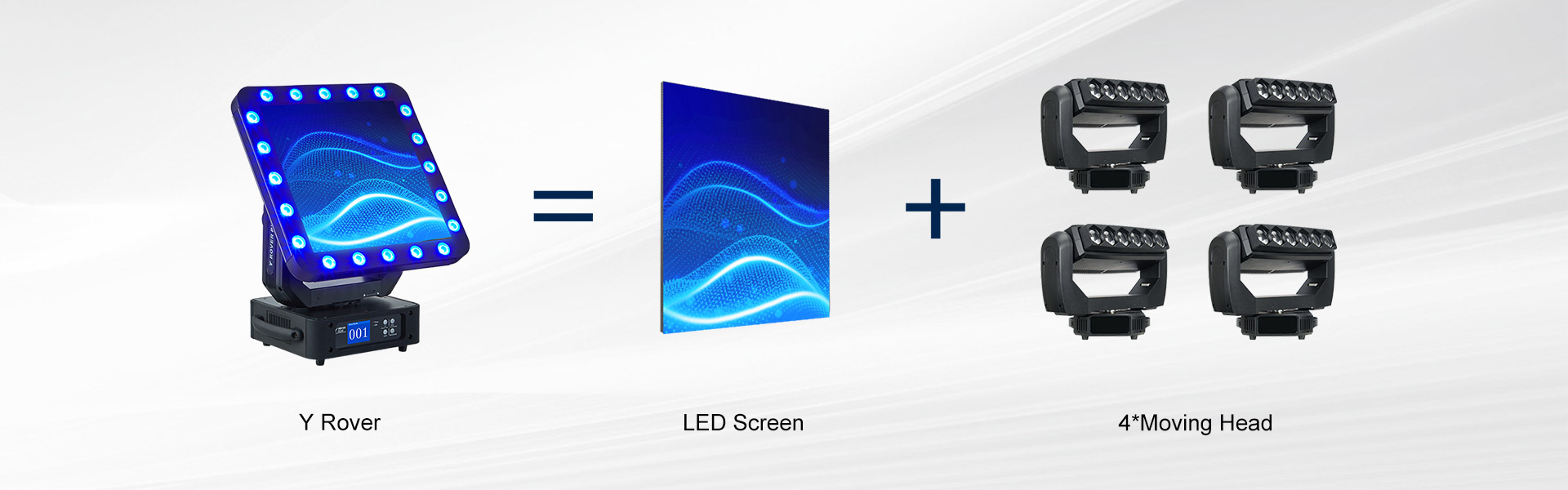

Video and lighting perfect combination investment greatly saved

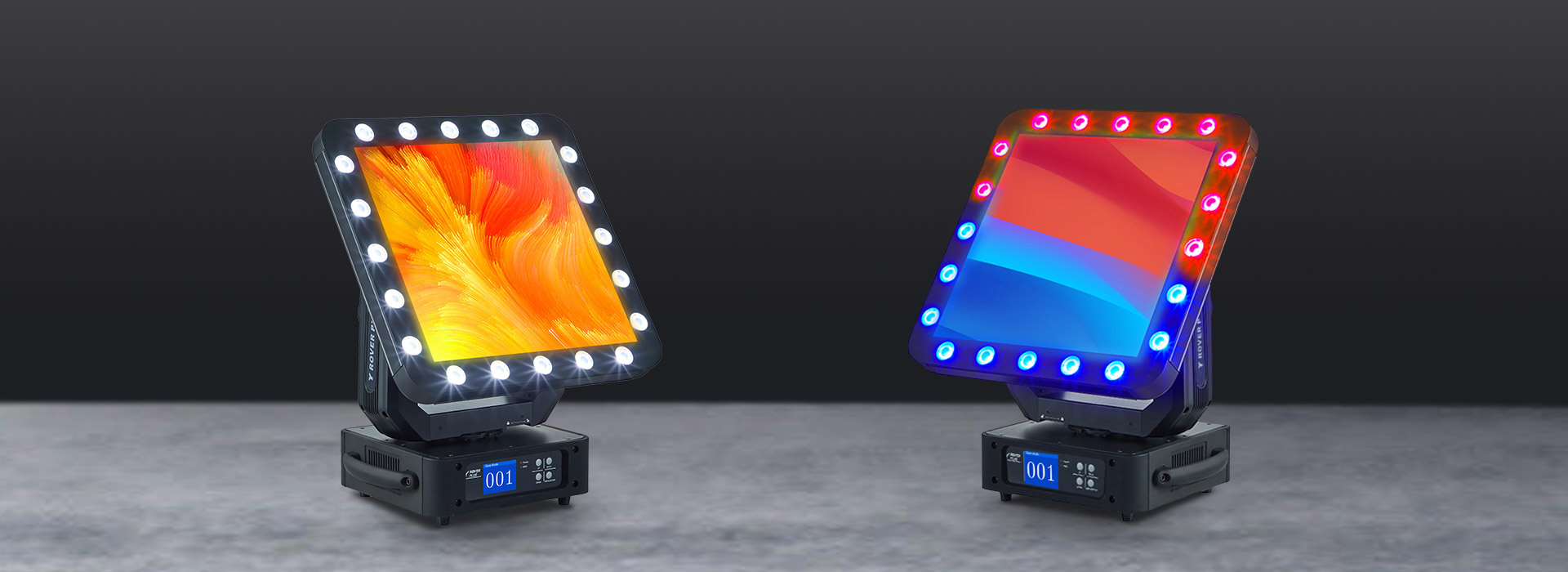

Vivid Images with professional lighting

20pcs high-power RGBW 4-in-1 LEDs with 8° beam angle high-quality PMMA lenses, 16-bit dimming, and sharp beams, demonstrating professional style.

Adopting international standard video/lighting protocols for easy control

Lighting control: international standard USITT DMX 512 protocol to control movement of LED screen and LED spot luminaires.

Supports RDM, Art-Net SCAN and other protocols. Stand-alone mode, master/slave mode and 2 DMX modes (32 to 96 DMX channels) optional.
Video control: Supports DVI, HDMI signals and general LED screen control system.

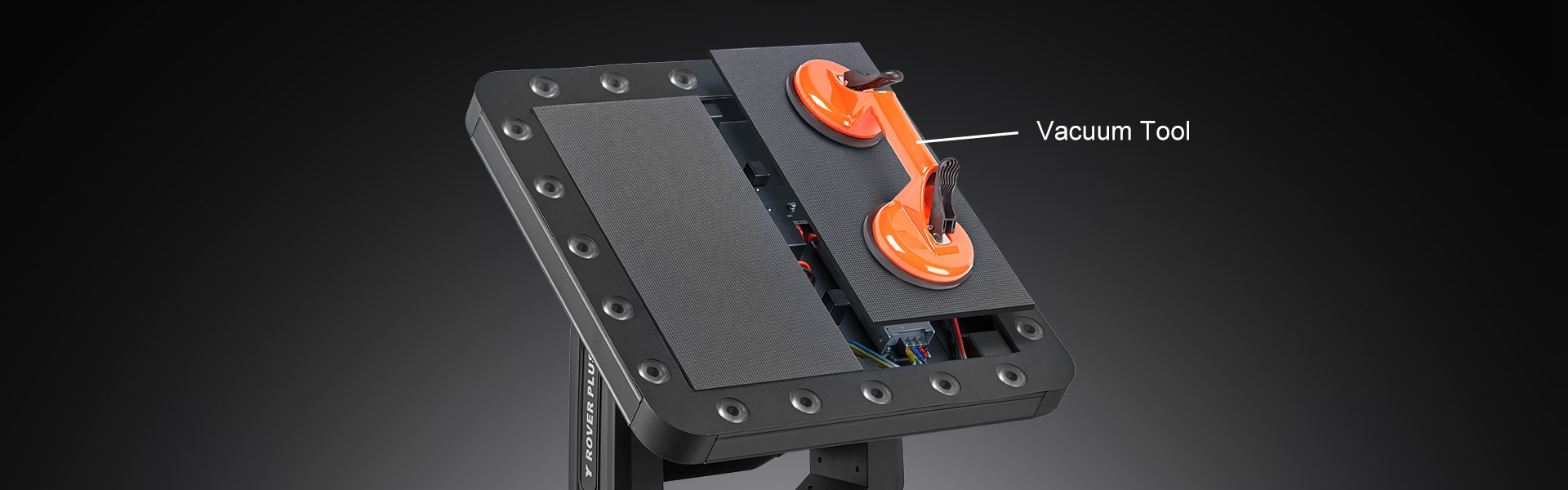

LED screen support front maintenance

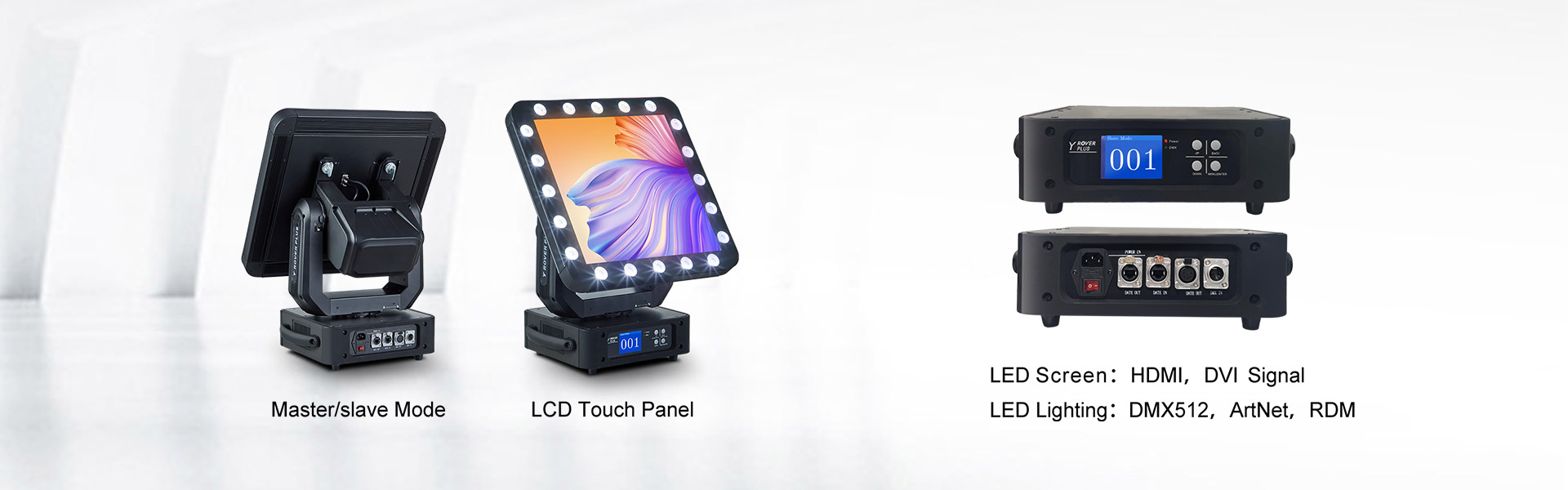

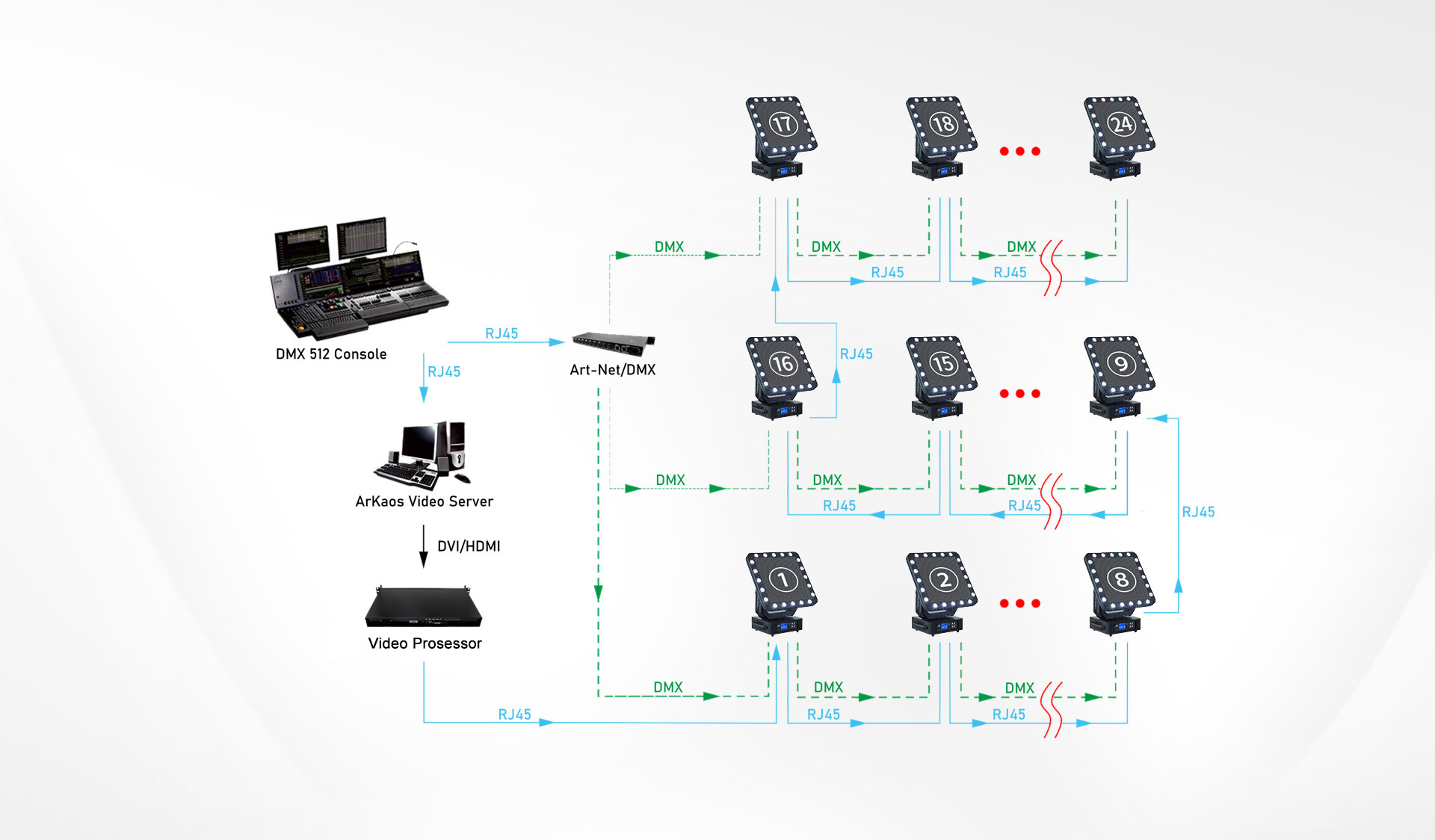

Control System Layout

DMX512 console and video processor optional.

Modular design and mold forming with professional style

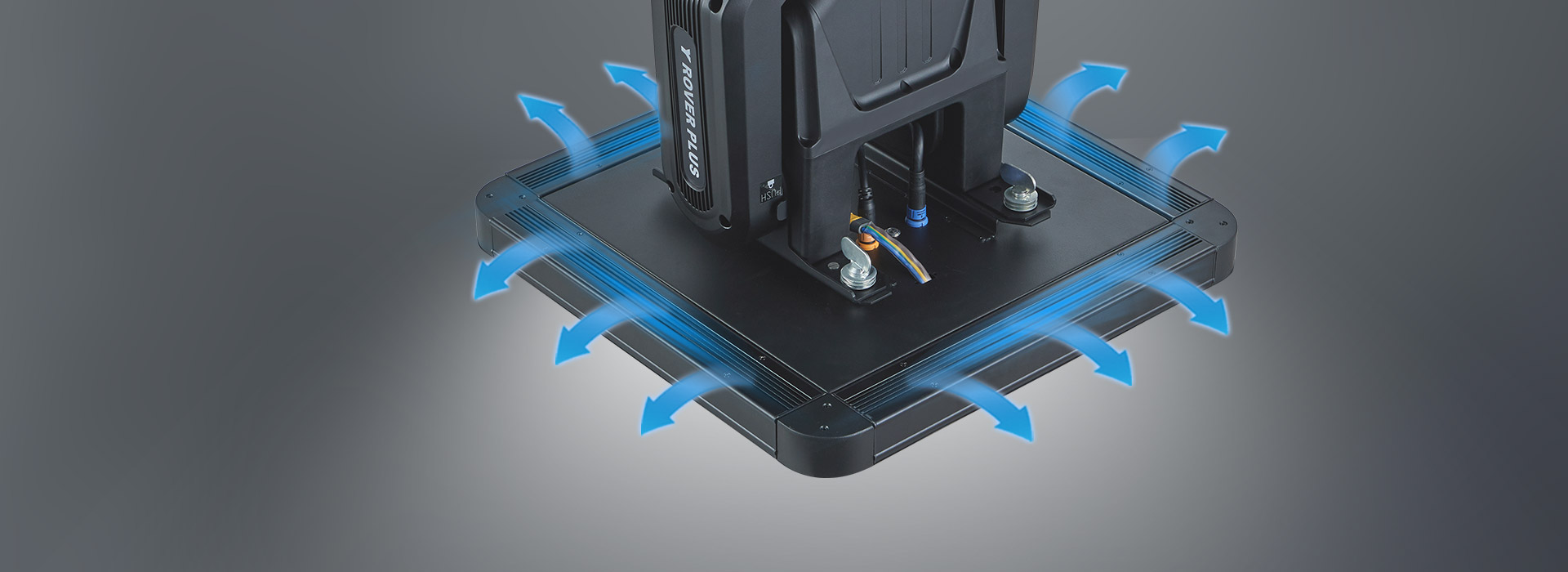

The body of the spotlights adopts aluminum profile heat dissipation, ensuring the stable and reliable operation of high-power LED spotlights and LED screens.

Specification

Model	Y Rover
LED Screen	Pixel pitch	2.6mm
	Resolution	144x144Pixels
	Screen size	375x375mm 14.76'' x 14.76''
	Brightness	4000 nits
	Screen Power(Max)	150W
	View angle(Hor/Vert)	160°/ 160°
	Refresh rate	3840Hz
	Gray scale	14bit
	Signal input	HDMI,DVI
	Control system	Nova
	Maintenance	Front
Led Spot Luminaire	LED Pitch	80mm
	Light souce	15 Watt RGBW 4-in-1
	Beam aperture	8°(15°Optional)
	Lens	32mm diameter, PMMA Optics
	Strobe	1-20 flashes per sceond
	Dimmer	16 bits
	Working Voltage	DC 12V
	Power consumption（Max）	400W
	Body material	Aluminum profile
	Life span	≥50000 H
	Movement	Pan:540°, Tilt:120°; 100°/s
	Control	DMX512,RDM, Art-Net, Scan Protocal
Others	DMX channels	32/96
	Body material	Alumnium alloy，Nylon+Fiber
	Weather protection	IP 20
	Power input	100~240VAC/50~60Hz
	Power consumption（Max）	650W
	Size	485x485x470 mm
	Flight Case	510x55x730mm
	Net Weight	≈26.5 kg \| 58.4 lb
	Operating temperature	-40~+60℃
	Storage temperature	-40~+60℃
	Certification	CE,FCC,RoHS

Related Tags :

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : High Brightness Moving Head LED Display Y Rover

Related Products

All-in-one Curved LED Screen Raptor Pro Series

Raptor Pro series is HUASUNY’s latest intelligent flexible LED display. It adopts patented automatic drive mechanics technology,making a new era of all-in-one screen with rigidity and flexibility. Features: 1. Automatically bending concave & convex angles up to 30°. 2. LCD screen displays precise bending angle and parameters 3. Magnesium alloy frame, light weight only 7.5kg/cabinet. 4. Versatile rigid-flexible screens, seamless splicing, and cost-saving. 5. Up to 5000nits brightness and IP65 rated.

Flexible Carbon Fiber Rods LED Screen LEgenD Flex

1.Innovative and aesthetic design, 2019 reddot award winner product. 2. Ultra flexible for different shapes of LED screens, and with all functions of traditional rigid LED cabinets. 3. Unique hinge technology design can keep pixel pitch constant when bending, no distinct bright and dark lines. 4. Magnesium alloy and carbon fiber frame, thin , light weight and reliable.

Rotating LED Poster Digital LED Signage Pirotate Series

Integrated with video display and rotation, Pirotate uses intelligent control technology on traditional LED screen and opens a new era of HD display industry.It is an eye-catching poster expands small pitch LED display technology to various scenes and deliver commercial information in all aspects.Intelligent, lightweight, portable and humanized, the best display solution for business, shopping mall, entertainment, exhibition and various activities.

All-in-One Flexible LED Display Raptor Series

Raptor series is HUASUNY’s latest intelligent flexible LED display. It adopts patented automatic drive mechanics technology,making a new era of all-in-one screen with rigidity and flexibility. Features: 1. Automatically bending concave & convex angles up to 30°. 2. LCD screen displays precise bending angle and parameters 3. Magnesium alloy frame, light weight only 6.8kg/cabinet. 4. Versatile rigid-flexible screens, seamless splicing, and cost-saving.

Flexible LED Display Module Ribbon Series

1. Made by soft PCB and rubber material, it’s soft enough to make different shapes for any creative applications. 2.With 5mm thickness ,magnetic connection,they can be fixed according to the frame structures,such as round, circle ,cylinder,etc. 3. Integrated seamlessly with a variety of other video products to reduce installation expenses and improve aesthetics ,it's lighter and thinner than traditional LED display.

Unique Design Soft LED Display Transparent LED Curtain Crystal Series

1. Originality design transparent LED curtain looks as clear as crystal. 2. Ultra soft and light LED strips, 16mm thickness only and weight is less than 6kg/sq.m. 3. Simple and clean style, no visible frames and cables, transparency up to 80%. 4. Unparalleled flexibility is suitable for versatile shapes LED screens. 5. Unique double-sided LED design can display both sides. 6. Plug-and-play service for easy installation and cost saving.

Creative Video Grid LED Display

1. Video grid is a kind of creative LED module, small size and flexible installation 2. You can install them on the wall, lobby, and ceiling to achieve a variety of creative application or as a large LED display. 3. Applying in creating customized LED video solutions with its artistic flexibility , the Video Grid’s compact size makes it extremely suitable for stage designs, set elements, creative ceilings, lobbies, night clubs, and much more.

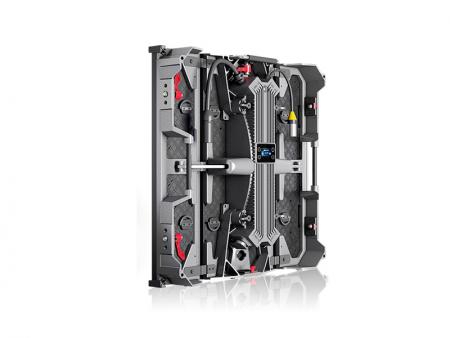

HD LED Display Video Wall X/XO Panel
