Portable High Definition Indoor Flexible LED display Galaxias Series

1.The Galaxias series targets both indoor and outdoor applications.

2.The pixel pitch varies from 3.9mm to 12mm that provides an optimal viewing distance from 3 to 20 meters, which satisfies most of the applications.

3. The Galaxias series is characterized with the following features: flexibility, ultra lightweight, front & rear service, and easy installation.

Inquiry now

Unparalleled Flexibility

Ultra flexilble suitable for any shapes LED screens. Wide ranges pixel pitches from 3mm to 12.5mm.

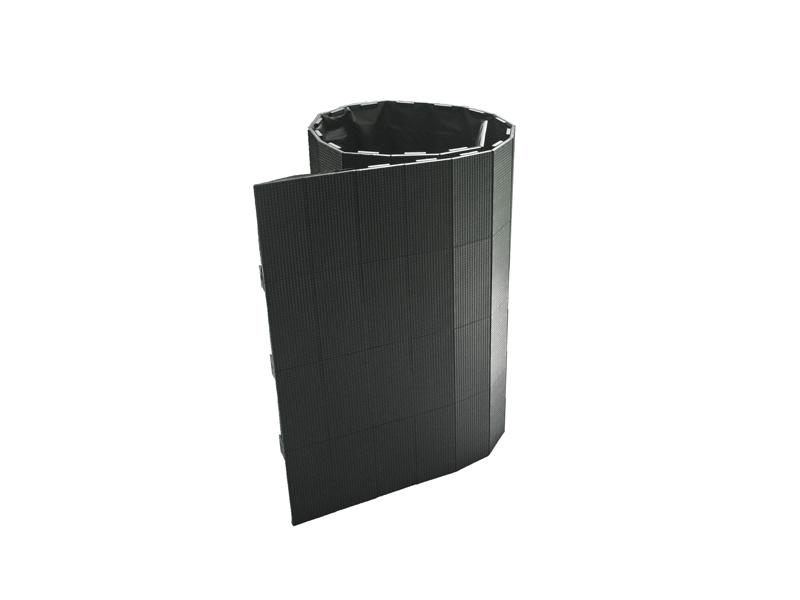

Foldable and Rollable, Perfect for Touring

15sq.m LED screen puts in one flight case, small volume and can save cost of transportation and labor.

Easy and Fast Combination

Different panels are connected by quick- locks and magnetic systems. Easy to set up big LED video wall and dismantle.

Various Mounting Options

It can hang vertically or horizontally for flat or curved screens.

Ultra Thin,Light Weight and Customized Sizes

12mm thickness and less than 12kg/sq.m. Panel size can be customized, 3200x800mm maximum.

Specifiaction

Model	Galaxias 3	Galaxias 4	Galaxias 6	Galaxias 7	Galaxias 9	Galaxias 12
Pixel Pitch (mm)	3.9	4.6	6.25	7.8	9.3	12.5
Pixel Density (pixel/㎡)	65536	45512	25600	16384	11378	6400
Pixel Configuration	RGB 3-IN-1 SMD LED
Brightness (Nits)	1000	1000	2100	2000	1950	1500
Optimal Visual Distance (m)	5	6	8	10	12	16
Recommended Size (WxH)	500x1500	600x1200	600x2400	750x2500	600*2400	600x2400
Size can be customized (mm)	500x1500	600x1200	600x2400	750x2500	600*2400	600x2400
Max Power Consumption (w/㎡)	500	500	450	400	400	300
Average Power Consumption (w/㎡)	170	170	150	130	130	100
Weight (kgs/㎡)	11.5	11.5	11.8	12	11.5	9.8
Power Input	100V ~ 240V AC/50-60Hz
Gray Scale (bit)	14
Refresh Rate (Hz)	3840
View Angle	Horizontal:160°; Vertical: 140°
Drive Mode	Constant Current
Signal Input	AV, S-Video, VGA, CVBS, HDMI, DVI, etc.
Body Material	DFR velvet drapery
IP Rating	IP 40
Operating temp/Humidity	-40~+60℃/10%~90% RH
Installation	Hang
Package	Flight cases
Certification	CE,FCC,RoHS
