Magic Foldable LED Display Rubik Series

With magnetic self-lock design, the Rubik series is super light weight and easy to install, and is suitable for indoor and outdoor application of any customized size. The special structure design ensures wind pass through the panel gently, no problem for windy environment. The folding technology like a book largely reduces the packing space and shipping cost. Providing maximum convenience and value to clients.

Inquiry now

Ultra Thin And Light Weight

12mm thickness and 10kg/sq.m

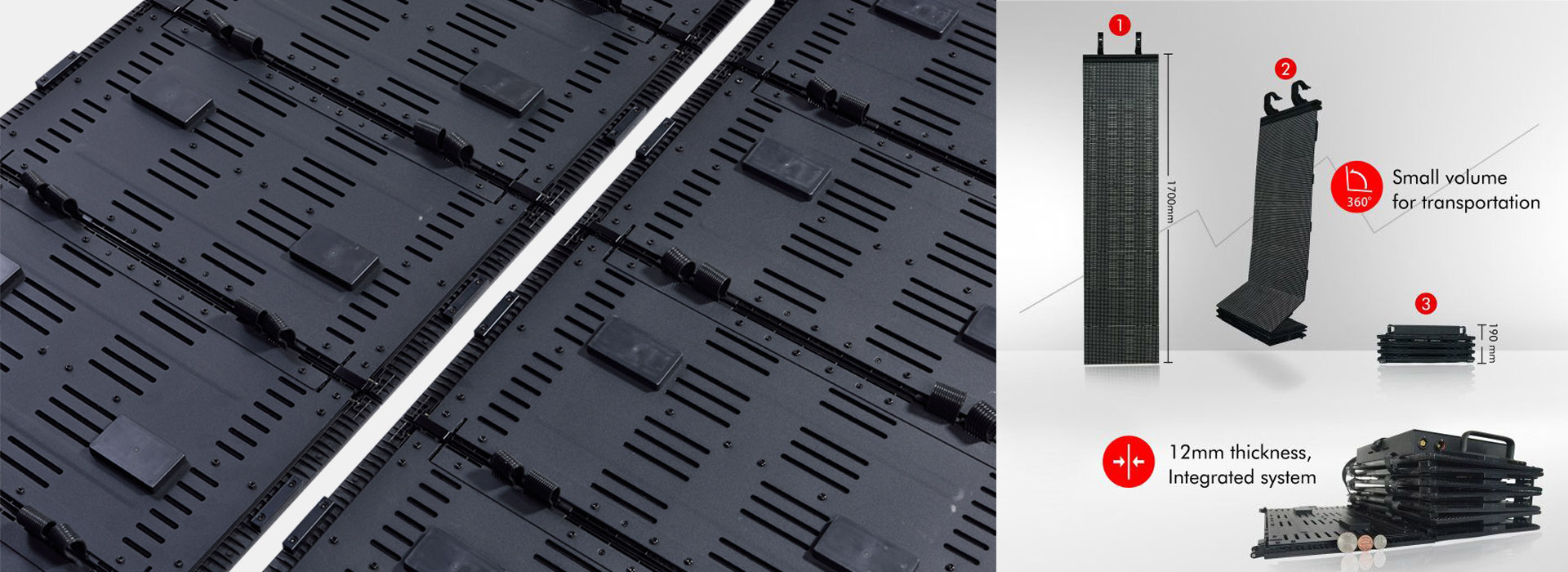

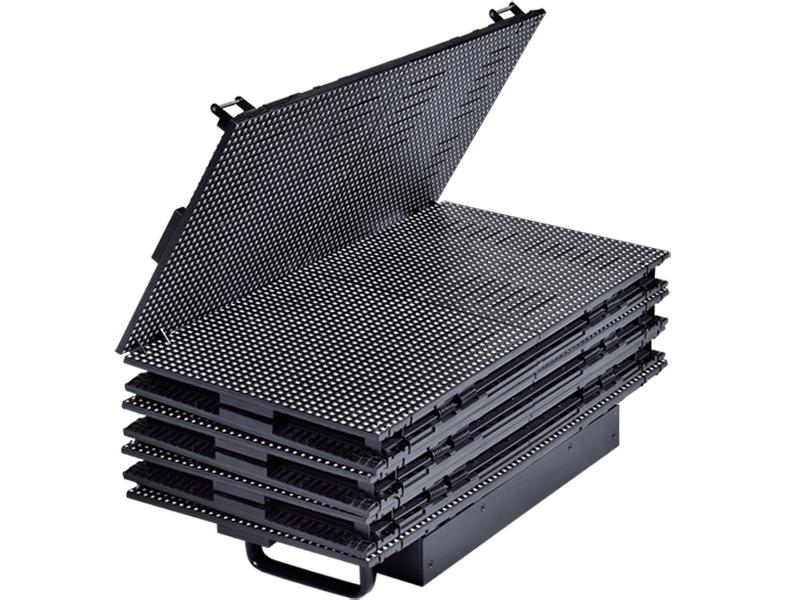

Foldable Structure,Space -Efficient Package

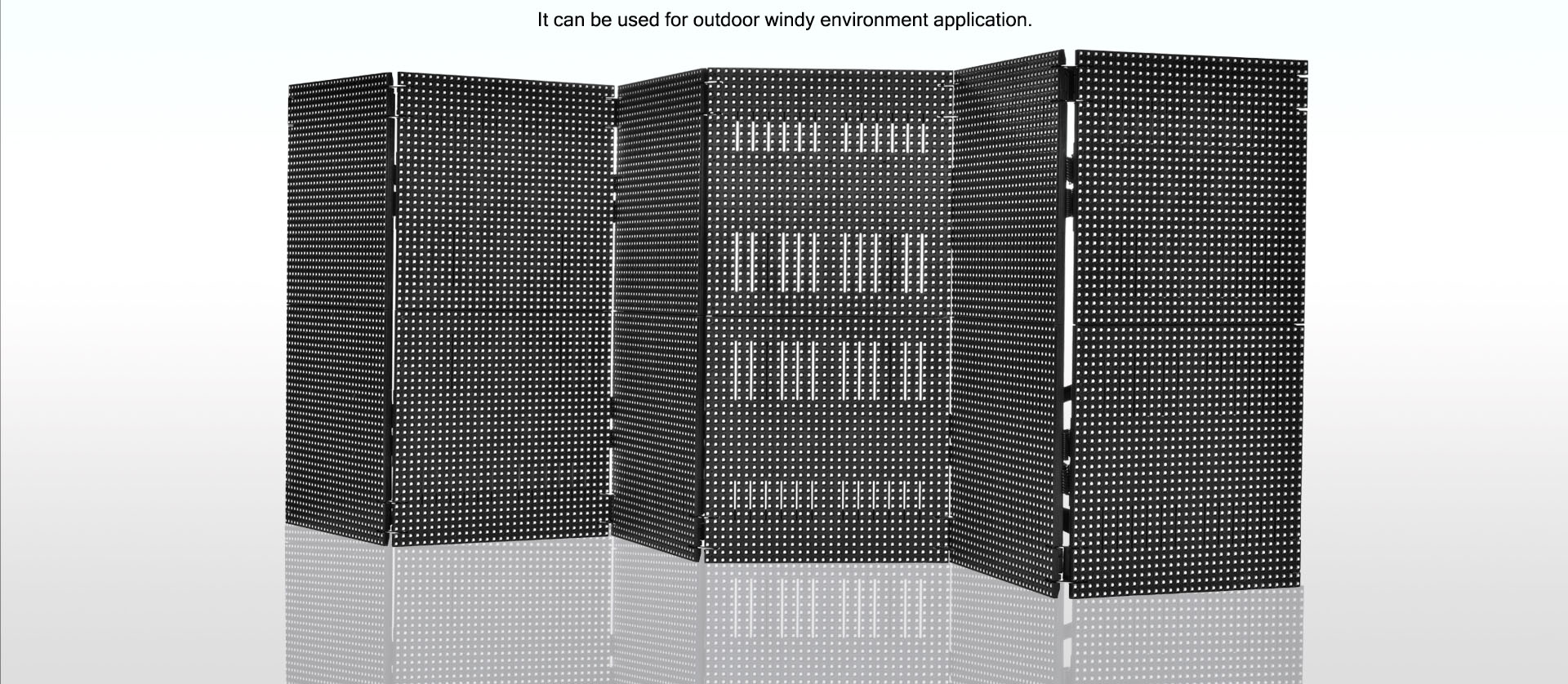

Semi-Transparent For Outdoor Windy Weather

Quick Magnetic Self-Locks Combination

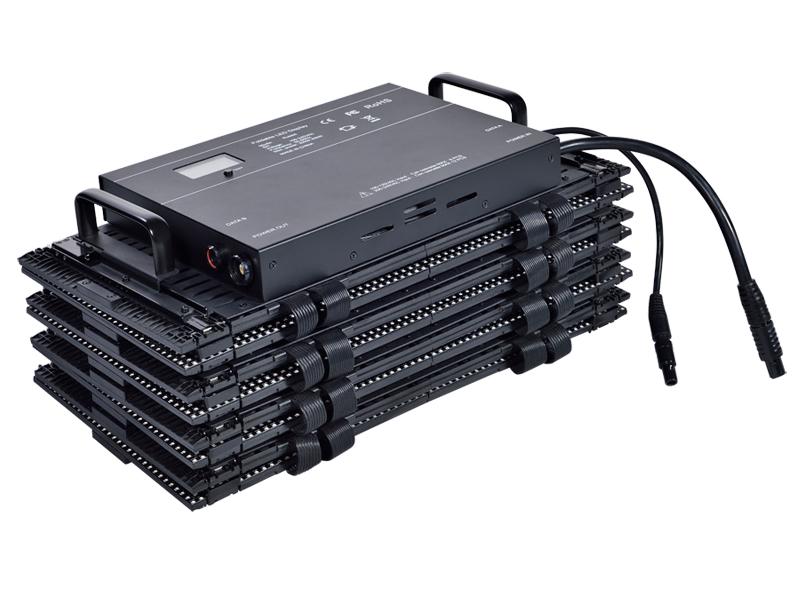

Power box and receiving card in the controller box is integrated with the panel, magnetic systems for easy installation and dismantle.

Specification

Model	Rubik-6	Rubik-10
Pixel Pitch (mm)	6.64	10
Pixel Density (pixel/㎡)	22682	10000
Pixel Configuration	RGB 3-IN-1 SMD LED	RGB 3-IN-1 SMD LED
Brightness (Nits)	1000	1000
Optimal Visual Distance (m)	8	12
Module Size （mm）	L 425*W 212.5	L 320 *W 160
Recommend Size (WHT)	425170018	320128025
Size can be customized (mm)	425170018	320128025
Max Power Consumption (w/㎡)	280	370
Average Power Consumption (w/㎡)	93	125
Weight (kgs/㎡)	10.5	9.7
Power Input	100V ~ 240V AC, 50/60Hz	100V ~ 240V AC, 50/60Hz
Gray Scale (bit)	16	16
Refresh Rate (Hz)	3840	3840
View Angle	Horizontal:120°; Vertical: 120°	Horizontal:120°; Vertical: 120°
Drive Mode	Constant Current	Constant Current
Signal Input	AV, S-Video, VGA, CVBS, HDMI, DVI, etc.	AV, S-Video, VGA, CVBS, HDMI, DVI, etc.
Body Material	Plastic, metal	Plastic, metal
IP Rating	IP 40	IP 40
Operating Temp./Humidity	-40℃ ~ +60℃/10%-90% RH	-40℃ ~ +60℃/10%-90% RH
Installation	Hang	Hang
Package	Flight case	Flight case
Certificate	CE, FCC, RoHS	CE, FCC, RoHS

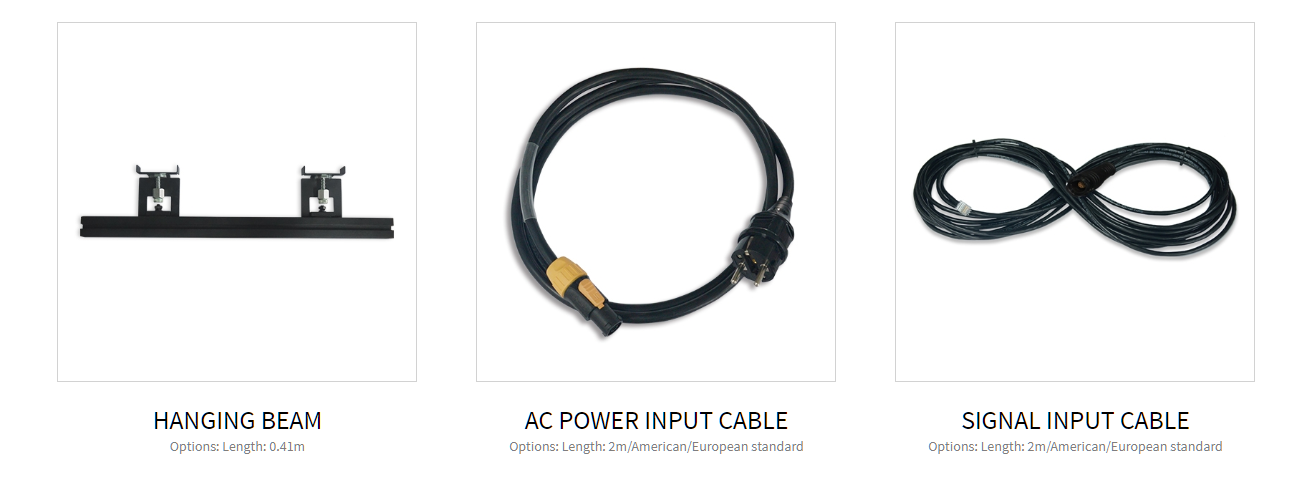

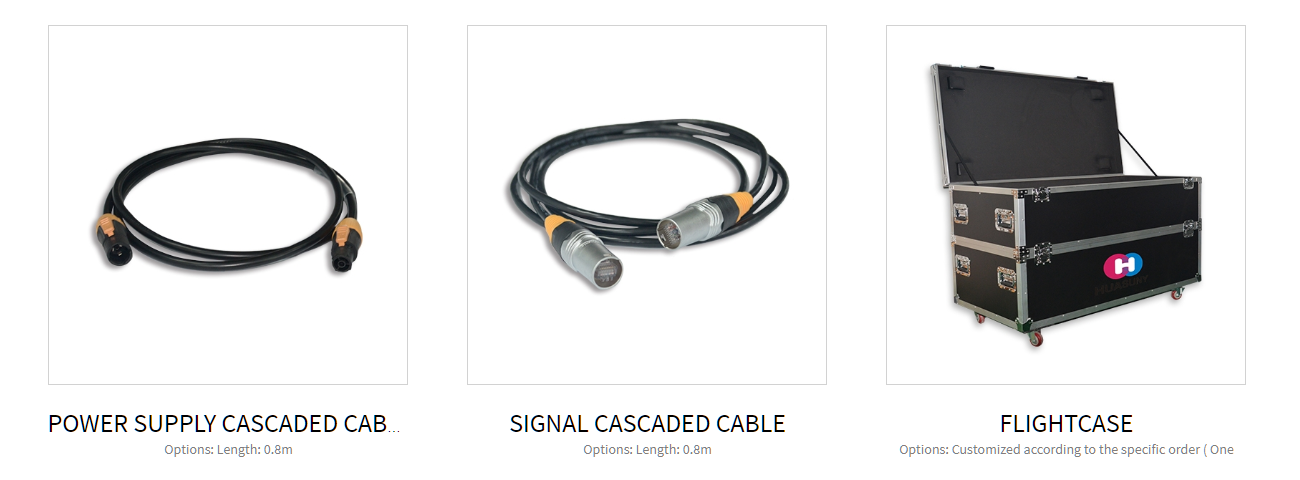

Accessories
