Indoor Fine Pitch LED Display MiniFlex

1.Adopts breakthrough innovative technology to achieve the real seamless splicing LED video walls.

2.Fine pitch LED displays are providing solutions for dispatching center, command center, broadcasting room, TV center, meeting room, stock exchange, press conference, etc.

3. Light weight and ultra thin, the perfect combination of appearance and function will surely lead the industry trend.

Inquiry now

Ultra High Definition Fine Pitch LED Display

MiniFlex uses HDR technology to restore natural colors and deliver vivid and stunning picture quality.

Simple Style, 16:9 Aspect Panel

Innovative originality design and super thin aluminum die-casting body; 16:9 golden ratio panel easily to achieve 2K, 4K and 8K video walls.

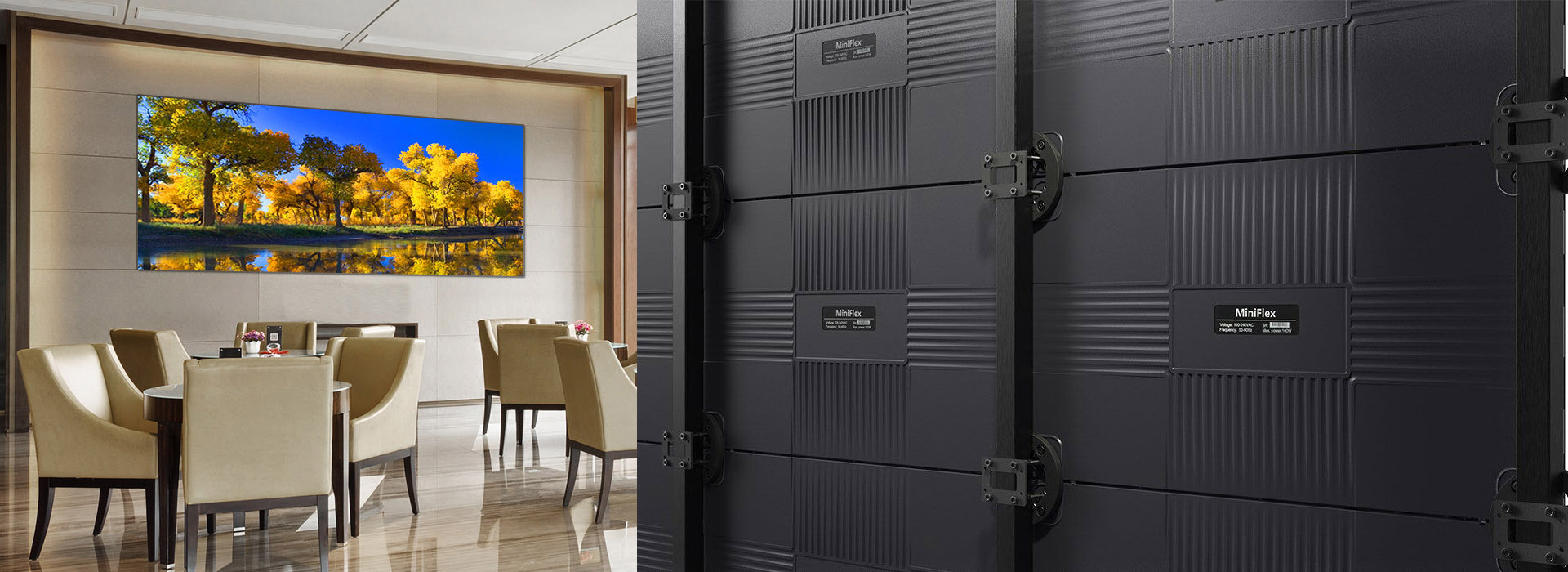

Ultra Thin, Seamless Splicing Video Wall

28mm thickness perfect for lobby,conference room, museum etc.

Simple assembling and low installation cost supports wall mounted, ground stack or hanging installation.

Modular Design,Unlimited Creativity

Easy Maintenance

Fast installation and dismantled, front access maintenance for easily service.

DIY Portable All-in-One Smart Solution

Specification

MiniFlex	1.25	1.56	1.875	2.5
Pixel pitch	1.25mm	1.5625mm	1.875mm	2.5mm
LED Module	150x168.75
LED Module resolution	120x135Pixels	96x108Pixels	80x90Pixels	60*67Pixels
Pixel density	640000Pixels/m²	409600Pixels/m²	284440Pixels/m²	160000Pixels/m²
Cabinet resolution	480*270Pixels	384*216Pixels	320*180Pixels	240*135Pixels
Panel size	600mm x 337.5mm x 28mm
Brightness	600-800nits	600-800nits	600-800nits	600-800nits
View angle（Hor/Vert）	140°/140°		140°/140°
Optimal visual distance	1.5m	2m	2.3m	3m
Refresh rate	≥3840Hz
Gray scale	14bit
Contrast	5000:1
Scan model	1/45	1/48	1/32	1/32
Power consumption（max/avg）	650/200 W/m²
Power input	100~240VAC/50~60Hz
Working Voltage	DC 4.2V
Signal input	AV,S-Video,VGA,CVBS,HDMI,DVI
Control system	Nova
IP rating	IP43
Body material	Die-casting Aluminum
Panel weight	≈4.5kg	≈4.5kg	≈4.5kg	≈4.5kg
Life span	≥50000 H
Operating temperature	-20~+50℃
Maintenance	Front
Certificate	CE,FCC,RoHS
