Flexible LED Mesh Screen

1. Designed with modular structure, different shapes are available because of the flexibility and foldability of Mesh series. Connection without lock, magnet suction and automatic splicing over a large area ,saves you 90% assembly time. 60% transparency, hollow out design for windproof and light weight , suitable for outdoor windy environment.

2. IP65, suitable for full weather conditions. High-power led spot light is available to create multiple visual effect，offer you more creative ideas for the stage design.

Inquiry now

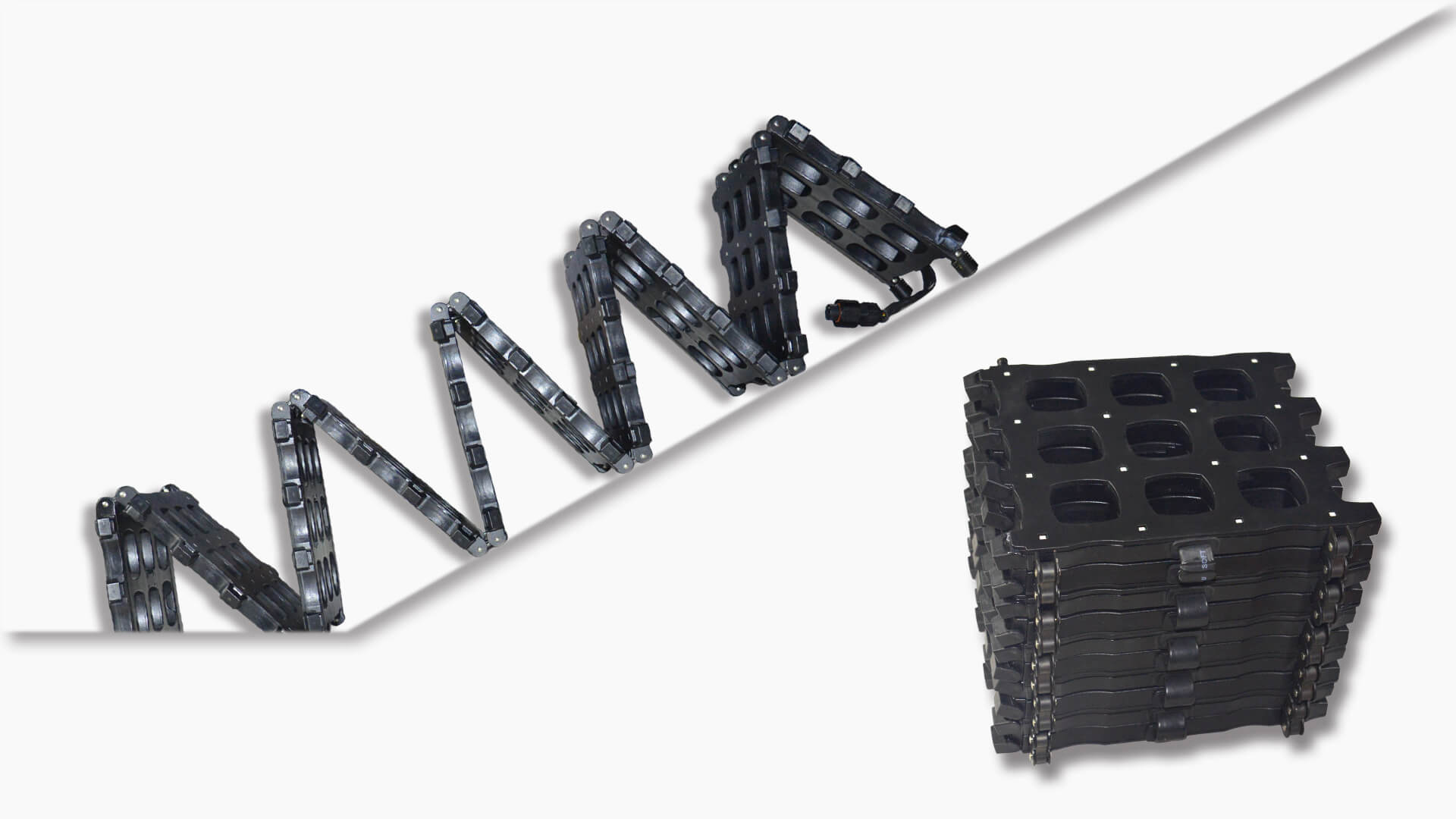

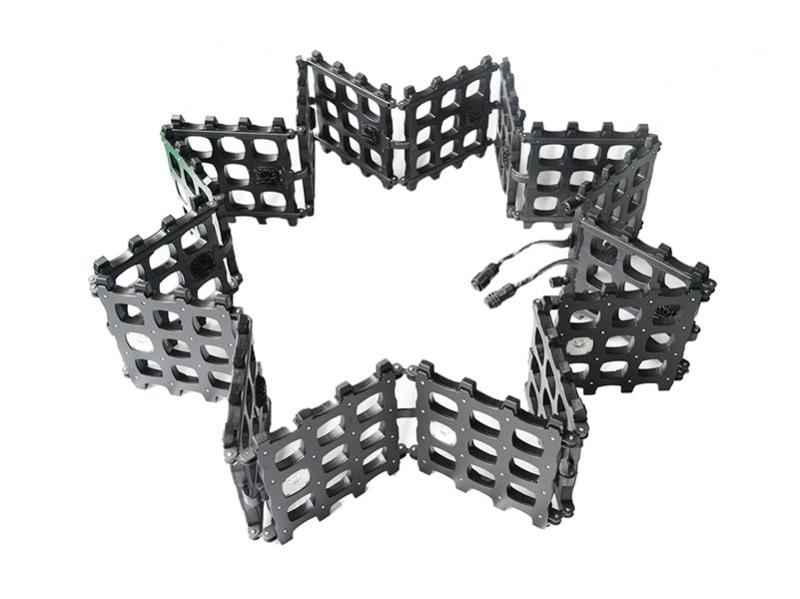

Modular Structure Design, Foldable With Excellent Flexibility

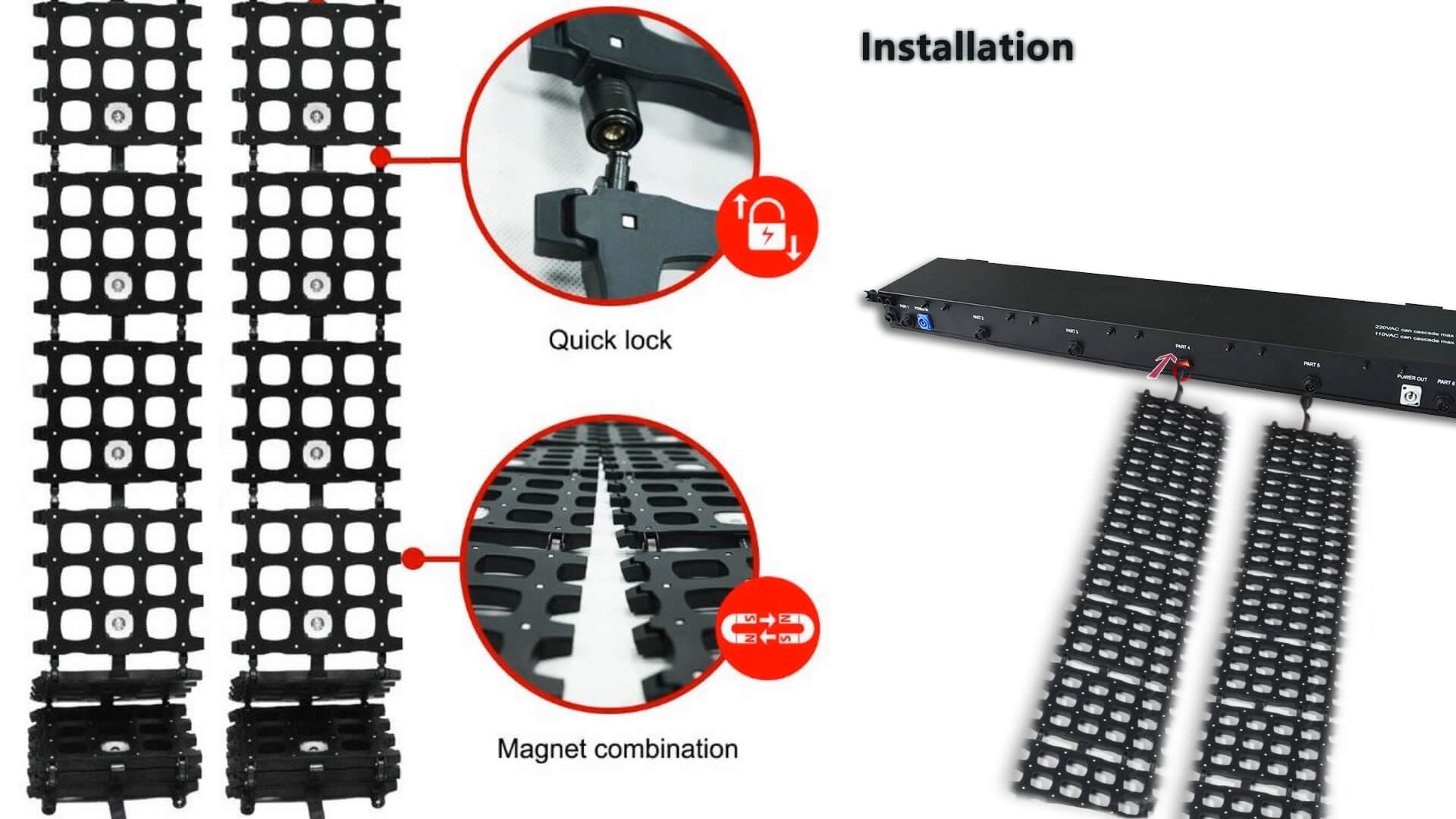

Magnetic Connection Without Locks, Automatic Splicing To Large LED Screen

Light Weight,Only 2.8kg For One Panel

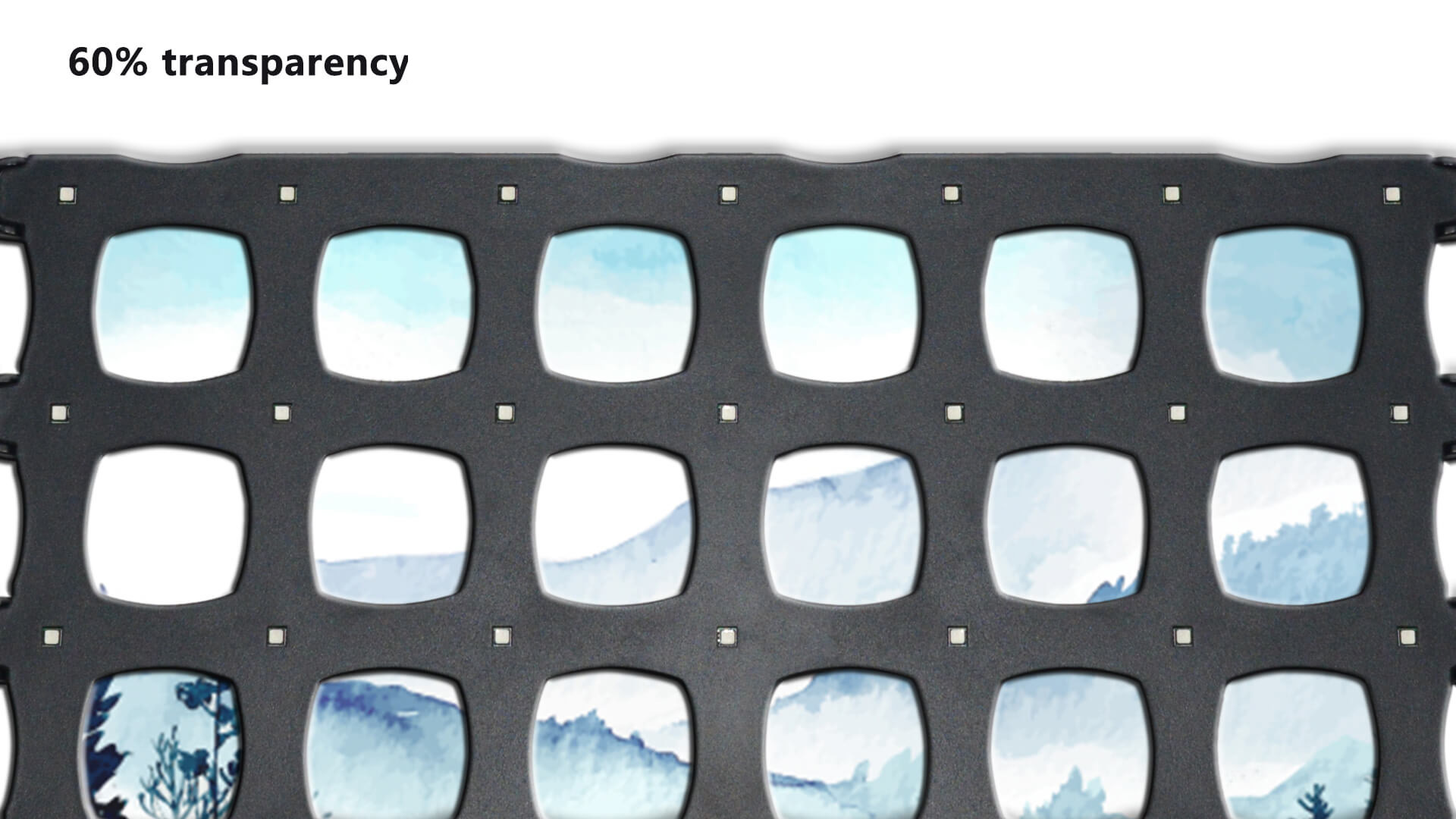

High Transparency & Windproof

IP 65 For All Weather Conditions

Easy Installation And Fast Maintenance

Specification

Model	Mesh-50
Tile	Mesh LED Display	LED spotlight(Optional)
Pixel pitch (mm)	50	200
Pixel configuration	RGB 3 IN 1 SMD LED	SMD LED (RGBW)
Brightness (White, Nits)	750
Pixels / tile	4×4	1×1
Weight (kg/tile)	0.33
Transparency	60%	N/A

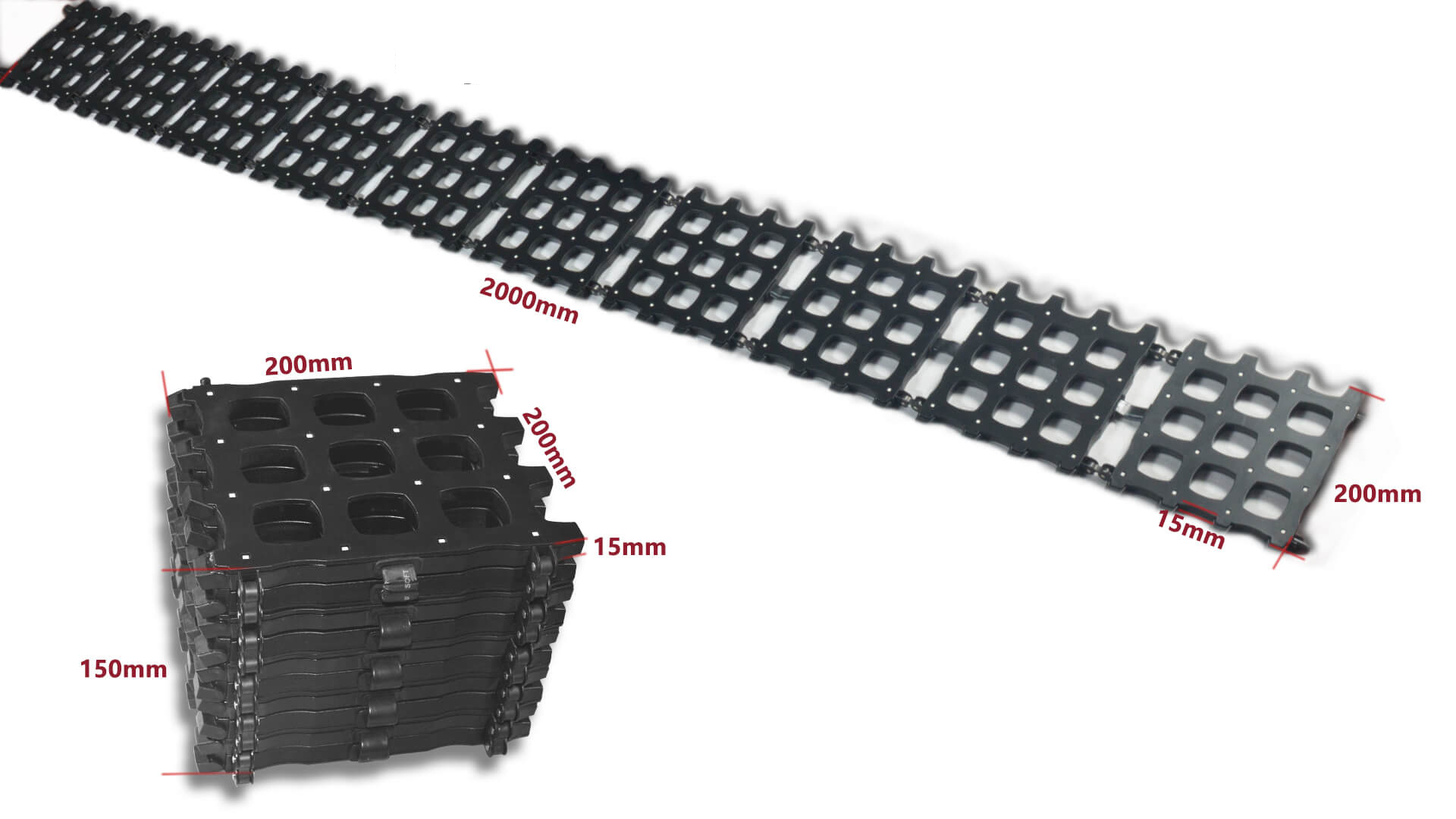

Unit size (WHT, mm)	200×2000×15	N/A
Unit area (m²)	0.4
Weight (kg/unit)	4
Pixels / unit	4×48	1×12
Pixel density (pixel/m²)	400	25
Viewing angle (Horizontal/Vertical)	120°/120°	80°/80°
IP rating (Front/Rear)	IP 65
Gray scale (bit)	12
Drive mode	Static, Constant current	Constant current
Max power (w/ m²/unit)	120	60
Average power consumption (w/ m²/unit)	40	20
Optimal visual distance (m)	60
Certificate	CE, FCC, RoHS

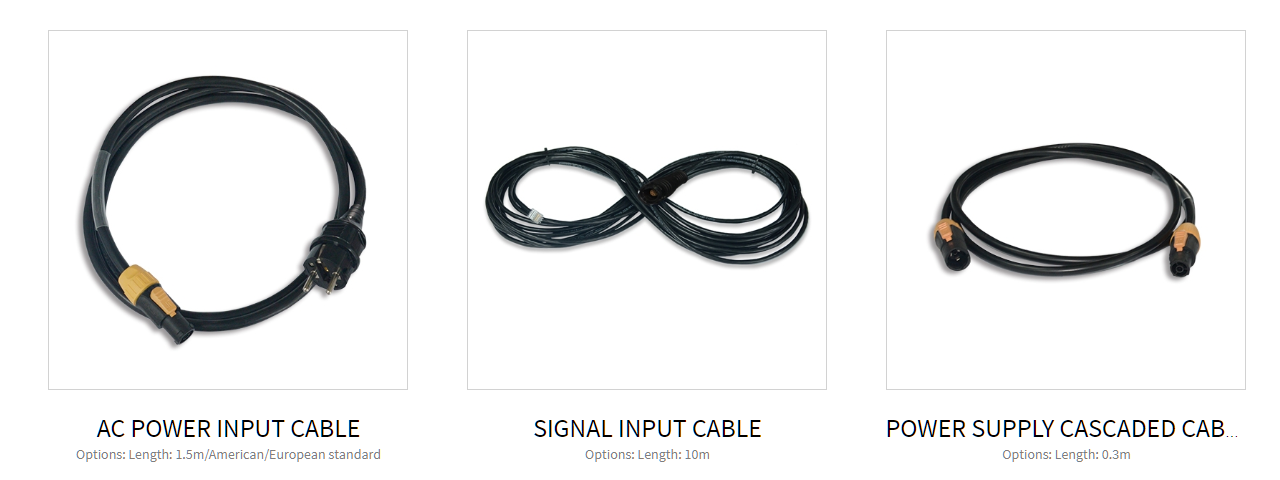

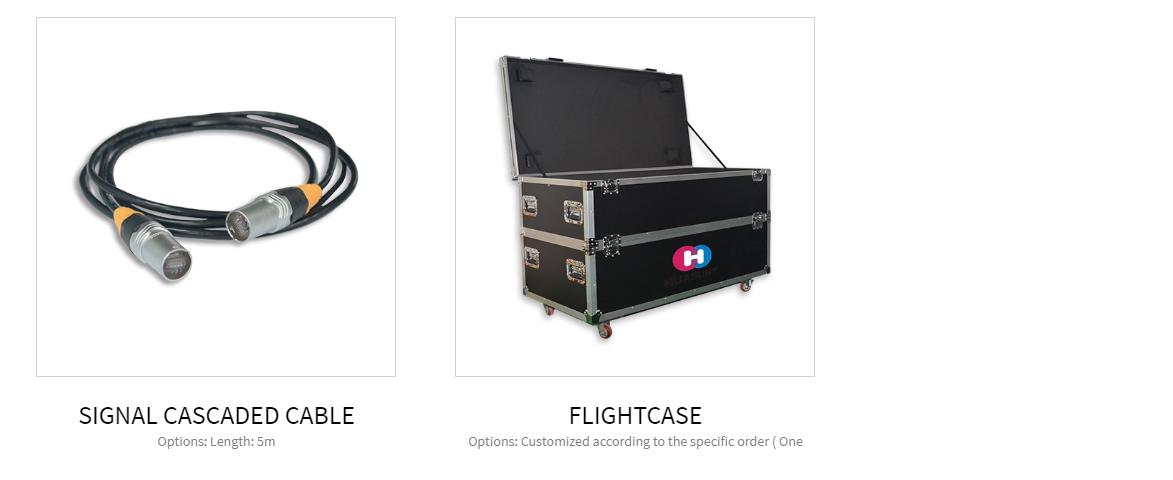

Accessories
