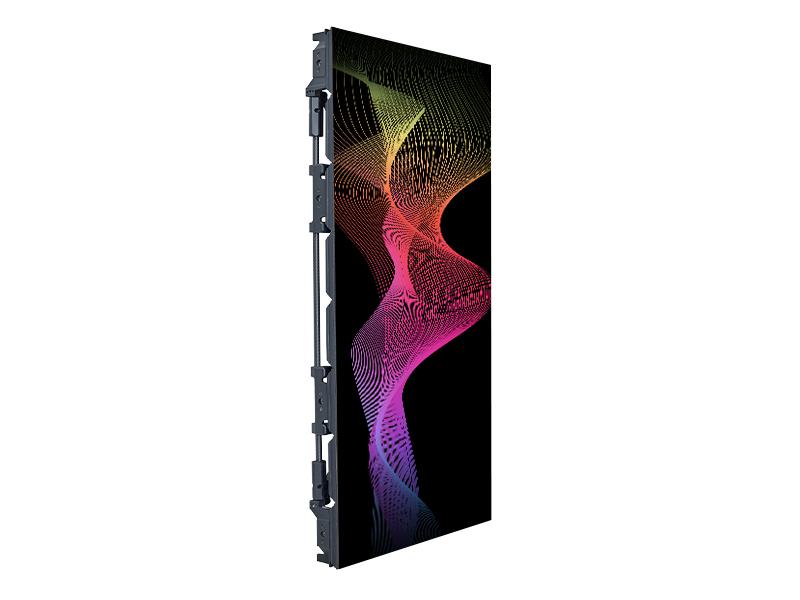

Flexible Carbon Fiber Rods LED Screen LEgenD Flex

1.Innovative and aesthetic design, 2019 reddot award winner product.

2. Ultra flexible for different shapes of LED screens, and with all functions of traditional rigid LED cabinets.

3. Unique hinge technology design can keep pixel pitch constant when bending, no distinct bright and dark lines.

4. Magnesium alloy and carbon fiber frame, thin , light weight and reliable.

Inquiry now Brochure Download

carbon fiber rods led panel
carbon fiber rods led panel carbon fiber rods led panel carbon fiber rods led panel carbon fiber rods led panel


Innovative Design, Meet the Unprecedented

2019 Reddot award winner product. It can be straight or bended, with the combination of technology and art.

fold led screen


Unique Patented Hinge Technology, Unbeatable Flexibility

Adopting the unique Falcon Wing hinge design, Huasuny LEgenD Flex led display screen can achieve perfect curved visual impact without bright and dark lines.

concave led screen


Flexible and Reliable

Magnesium alloy and carbon fiber frame, super thin and light weight. 16kg per panel and supports pulling force of 300kg. Easy to install and transport.

carbon fiber led panel


Ready for All Installation Ways

LEgenD Flex supports vertical hanging, horizontal hanging, and ground stack both for flat and curved LED screens.

led screen fold cart


Special Anti-Collision Corner Protectors Design

High strength protector design can prevent the LEDs of 4 corners and edges from collision,very convenient for the rental market.

outdoor led panel


IP65 for All Weather Applications

Ip65 flexible screen


Modular Design for Front and Rear Maintenance


front service LED screen

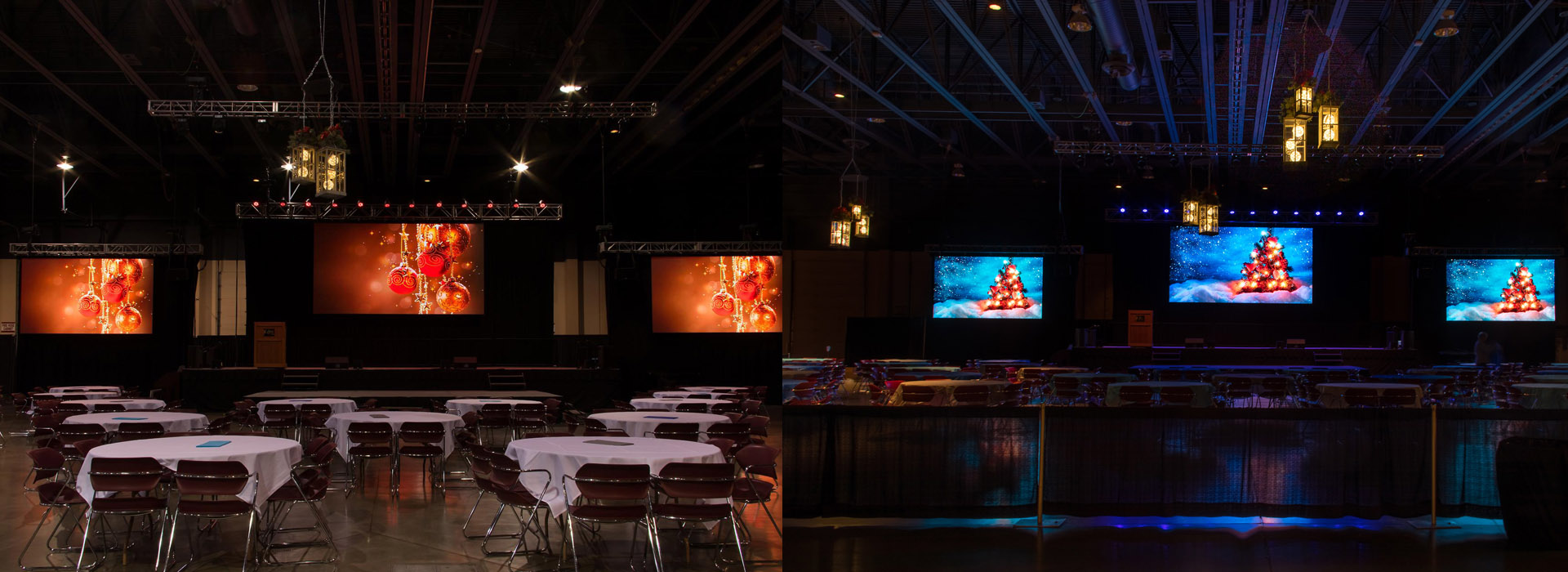

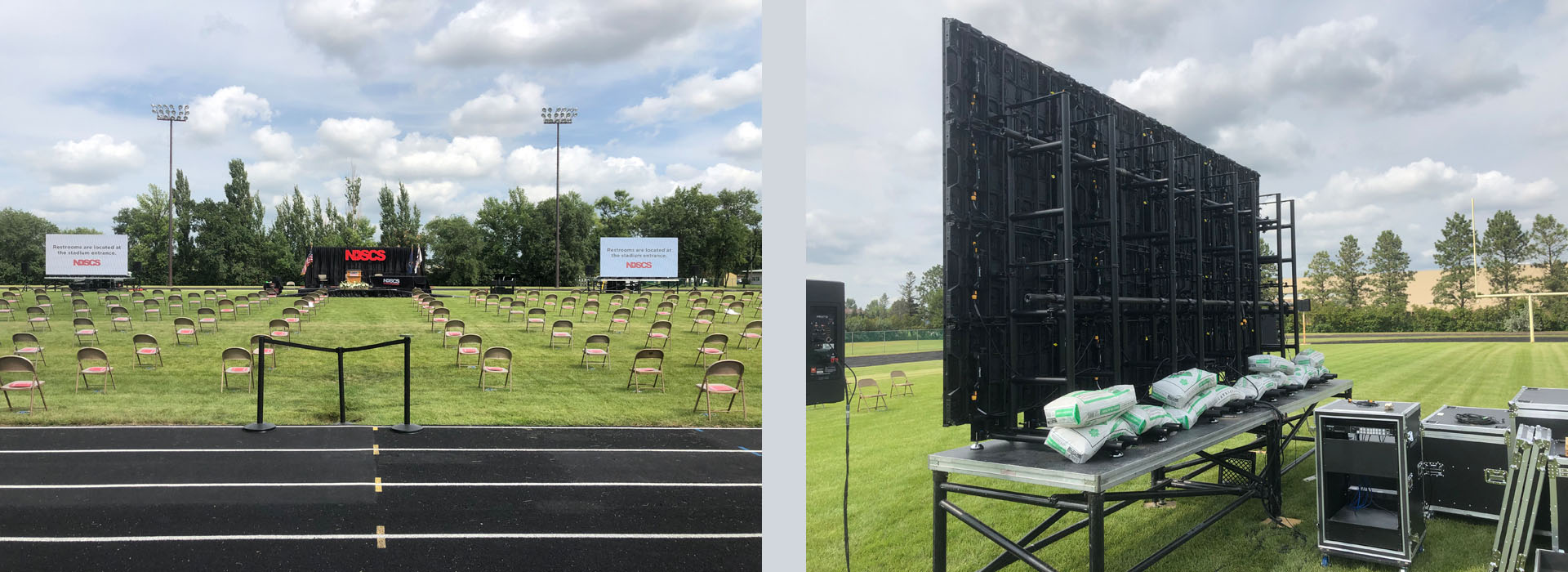

                                                                                            Applications

outdoor drive-in LED screenLED screen for church


Specification


LEgenD Flex - Indoor


Model L-2.3 L-2.8 L-3.7 L-4.6
Pixel pitch (mm) 2.34 2.88 3.75 4.68
LED SMD 1212 SMD 1515 SMD 2020 SMD 2020
Pixel density (Pixels/m²) 181476 120178 71112 45512
Panel resolution (Pixels) 256x512 208x416 160x320 128x256
Module size (mm) 300x150 300x150 300x150 300x150
Panel size(W*H) (mm) 600x1200 600x1200 600x1200 600x1200
Size can be customized
Brightness (Nits) 1000/1200 1000/1200 1000/1200 1000/1200
Optimal visual distance (m) 3 3.5 4.5 6
Scan mode 1/32 1/26 1/20 1/16
Max.Power consumption (W/m²) 620 620 620 620
Typical Power consumption (W/m²) 210 210 210 210
IP rating IP40 IP40 IP40 IP40
Weight (kg/SQ.M) 24 24 24 24
Panel weight (kg/panel) 17 17 17 17
Refresh rate (Hz) 3000 3000 3840 3840
Gray scale (bit) 14 14 14 14
Contrast 5000:1
View angle (Horizontal/Vertical) 160°/140°
Power input 100~240VAC/50~60Hz
Signal input AV,S-Video,VGA,CVBS,HDMI,DVI
Control system Nova
Body material Magnesium alloy, PC+ fiber
Max hanging quantity（Panels） Vertical: 8 panels Vertical: 6 panels
Horizontal: 10 panels Horizontal: 10 panels
Max stacking Horizontal 10 panels
Life span ≥50000 H
Operating/Storage temperature -20℃~+50℃
Maintenance Front & Rear
Certification CE, ROHS, FCC,


---------------------------------------------------------------------------------------------------------------------------------------------------------------------



LEgenD Flex - Outdoor


Model LO-2.8
 LO-3.7 LO-4.6 LO-9.37
Pixel pitch (mm) 2.88
 3.75 4.68 9.375
LED      SMD 1515
 SMD 1921 SMD 1921 SMD 2727
Pixel density (Pixels/m²)      120178
 71112 45512 11236
Panel resolution (Pixels)      208x416
 160x320 128x256 64x128
Module size (mm) 300x150
 300x150
Panel size(W*H) (mm) 600x1200
 600x1200
Size can be customized
Brightness (Nits) 3500/4500
 3500/5000 3500/5000 4500
Optimal visual distance (m) 3.5
 4.5 6 7.5
Scan mode 1/26
 1/20 1/16 1/4
Max.Power consumption (W/m²) 620
 620 620 620
Typical Power consumption (W/m²) 210
 210 210 205
IP rating IP65
 IP65 IP65 IP65
Weight (kg/SQ.M) 24
 24 24 22
Panel weight (kg/panel) 17.5
 17.5 17.5 16
Refresh rate (Hz) 3840
 3840 4920 4920
Gray scale (bit) 14
 14
Contrast 5000:1
 5000:1
View angle (Horizontal/Vertical) 160°/140°
 160°/140°
Power input 100~240VAC/50~60Hz
 100~240VAC/50~60Hz
Signal input AV,S-Video,VGA,CVBS,HDMI,DVI
 AV,S-Video,VGA,CVBS,HDMI,DVI
Control system Nova
 Nova
Body material Magnesium alloy,PC+ fiber
 Magnesium alloy,PC+ fiber
Max hanging quantity（Panels） Vertical: 8 panels
 Vertical: 8 panels
Horizontal: 10 panels
 Horizontal: 10 panels
Max stacking Horizontal
 10 panels
 10 panels
Life span
 ≥50000 H ≥50000 H
Operating/Storage temperature
 -20℃~+50℃ -20℃~+50℃
Maintenance
 Front&Rear  Front&Rear
Certification
 CE, ROHS, FCC, CE, ROHS, FCC,
