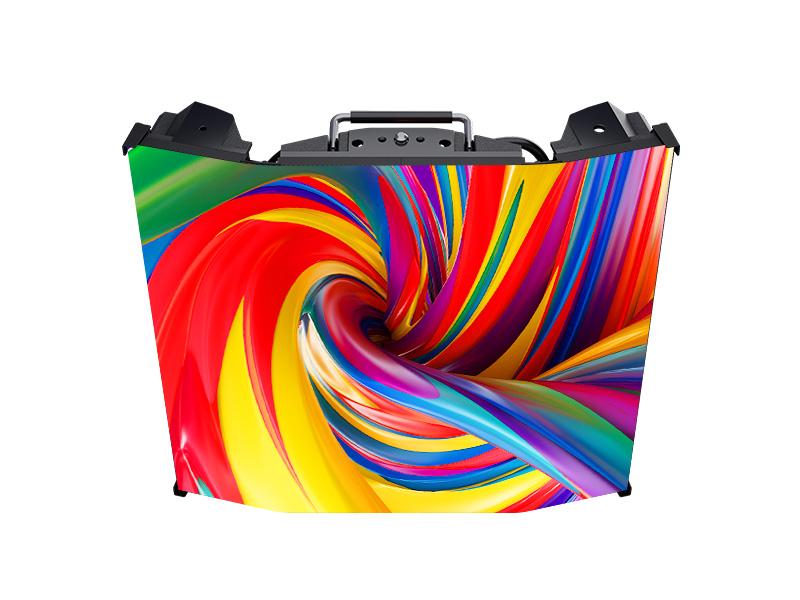

All-in-One Flexible LED Display Raptor Series

Raptor series is HUASUNY’s latest intelligent flexible LED display. It adopts patented automatic drive mechanics technology,making a new era of all-in-one screen with rigidity and flexibility.

Features:

1. Automatically bending concave & convex angles up to 30°.

2. LCD screen displays precise bending angle and parameters

3. Magnesium alloy frame, light weight only 6.8kg/cabinet.

4. Versatile rigid-flexible screens, seamless splicing, and cost-saving.

Inquiry now Brochure Download

The LED Screen Ahead

Raptor series flexible LED display uses advanced AI technology to make it bend to any angles automatically. It is the screen of future with a new experience in excellent visual quality, rigid-flex options , intelligent control, and unique design. Multifunctional and cost-saving LED panel meets all your design requirements.

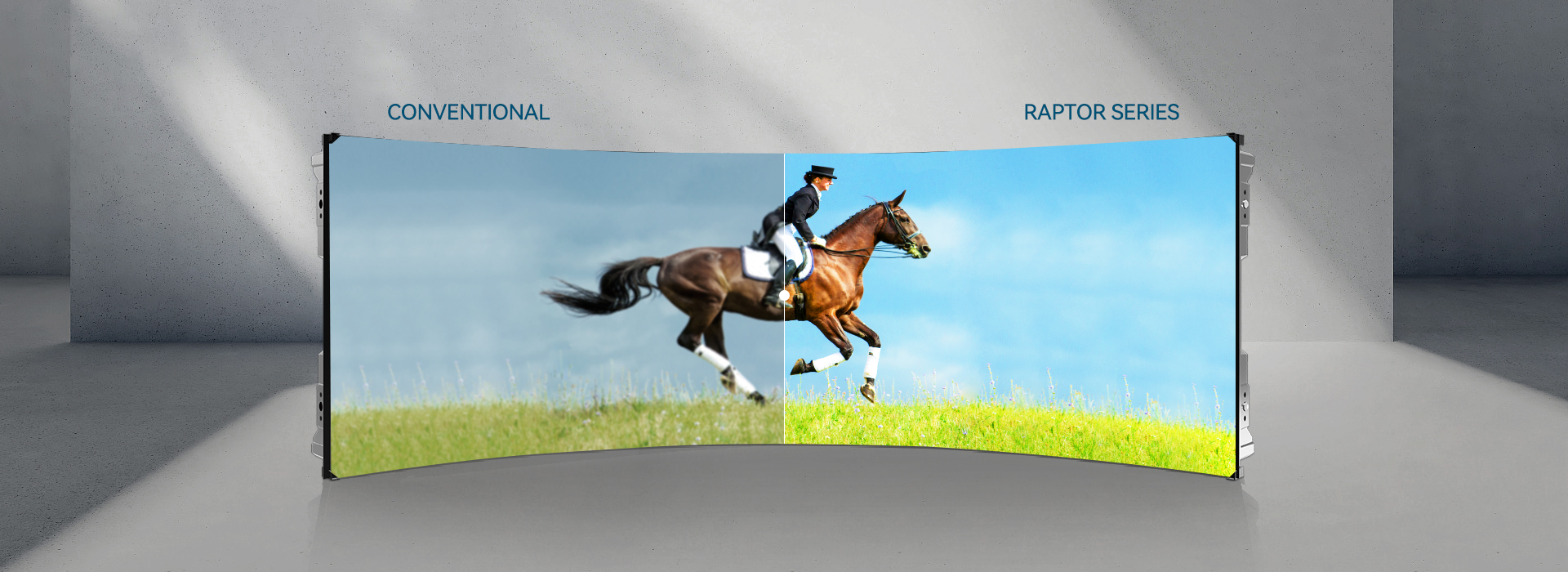

Stunning Visual Experience

HDR technology,low reflection, and high contrast delivers true color.

Automatically Bending To Any Angle with One Button

Raptor adopts patented automatic drive mechanics technology to make it automatically bend concave & convex angels up to 30°and keep 100% consistent in different curved cabinets. Its LCD screen can display precise bending angles and parameters.

Unparalleled Flexibility

Raptor flexible LED display can easily create curves up to ±30 degrees, ideal for various shapes with seamless splicing,including flat, curve, or circular etc.

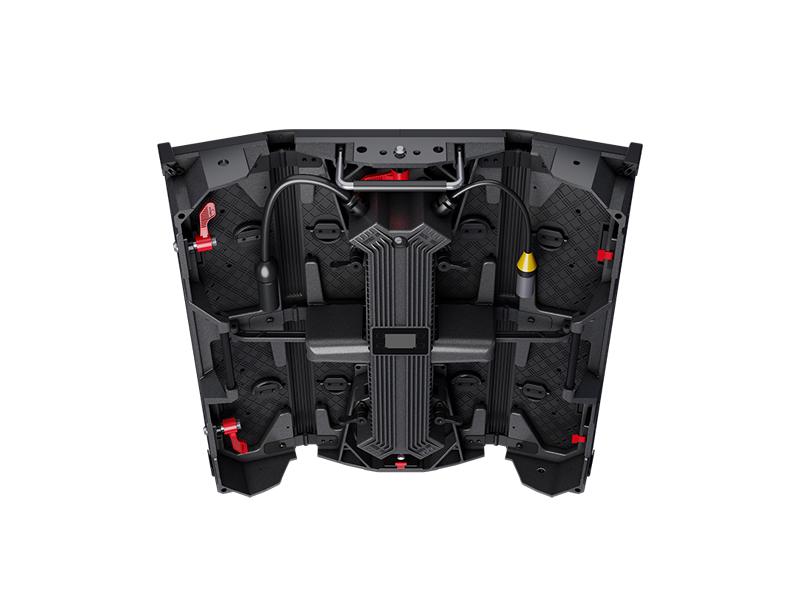

Front And Rear Module Service

Raptor led panel allows for both front and rear service, making maintenance easy and cost-effective.

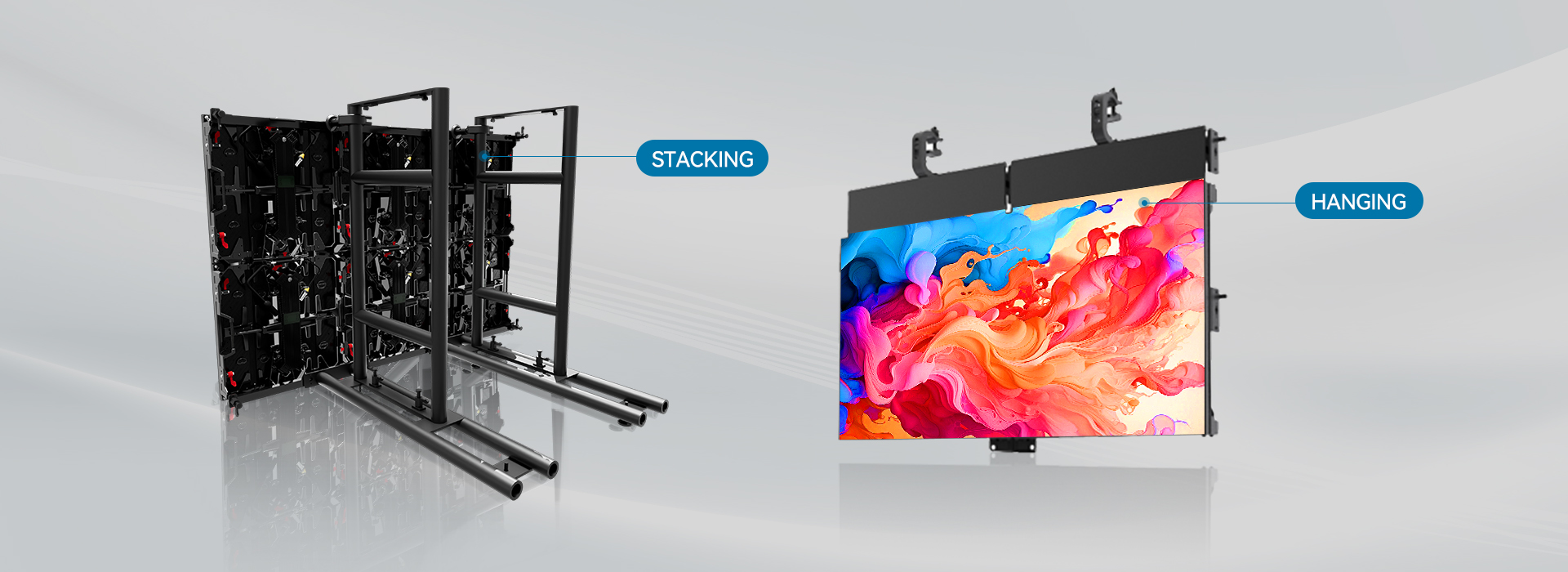

Stacking And Hanging System

Specification

Raptor (Indoor)
Raptor	R 1.9	R 1.9	R 2.6	R 2.9
Pixel pitch	1.95mm	1.95mm	2.6mm	2.98mm
LED	SMD 1212	4-IN-1 Common Anode	SMD 1515	SMD 1515
LED module size	250×250mm	250×250mm	250×250mm	250×250mm
Pixel density	262144 Pixels/m²	262144 Pixels/m²	147456 Pixels/m²	112896 Pixels/m²
Module resolution	256×256	256×256	192×192	168×168
Panel size	500×500mm 19.7'' x 19.7''	500×500mm 19.7'' x 19.7''	500×500mm 19.7'' x 19.7''	500×500mm 19.7'' x 19.7''
Brightness	1200nits	1200nits	1200nits	1200nits
Refresh rate	3840Hz	3840Hz	7680Hz	3840Hz
Scan model	1/32	1/32	1/16	1/28
Gray Rate	14bit	14bit	14bit	14bit
Curving (Concave & Convex)	Concave 30°~Convex 30°
View angle（Hor/Vert）	160°/140°
Power consumption （max/avg）	720/240 W/m²
Power input	100~240VAC/50~60Hz
Working Voltage	DC 4.6V
Signal input	AV,S-Video,VGA,CVBS,HDMI,DVI
Control system	Nova
IP rating	IP40, Indoor
Frame material	Megnesium Alloy
Panel weight	6.8kg \| 15 lb
Operating temperature/ Humidity	20°~45°C, 10~90%RH
Serviceability	Front/Rear
Certifications	CE,FCC,RoHS
