Unique Design Soft LED Display Transparent LED Curtain Crystal Series

1. Originality design transparent LED curtain looks as clear as crystal.

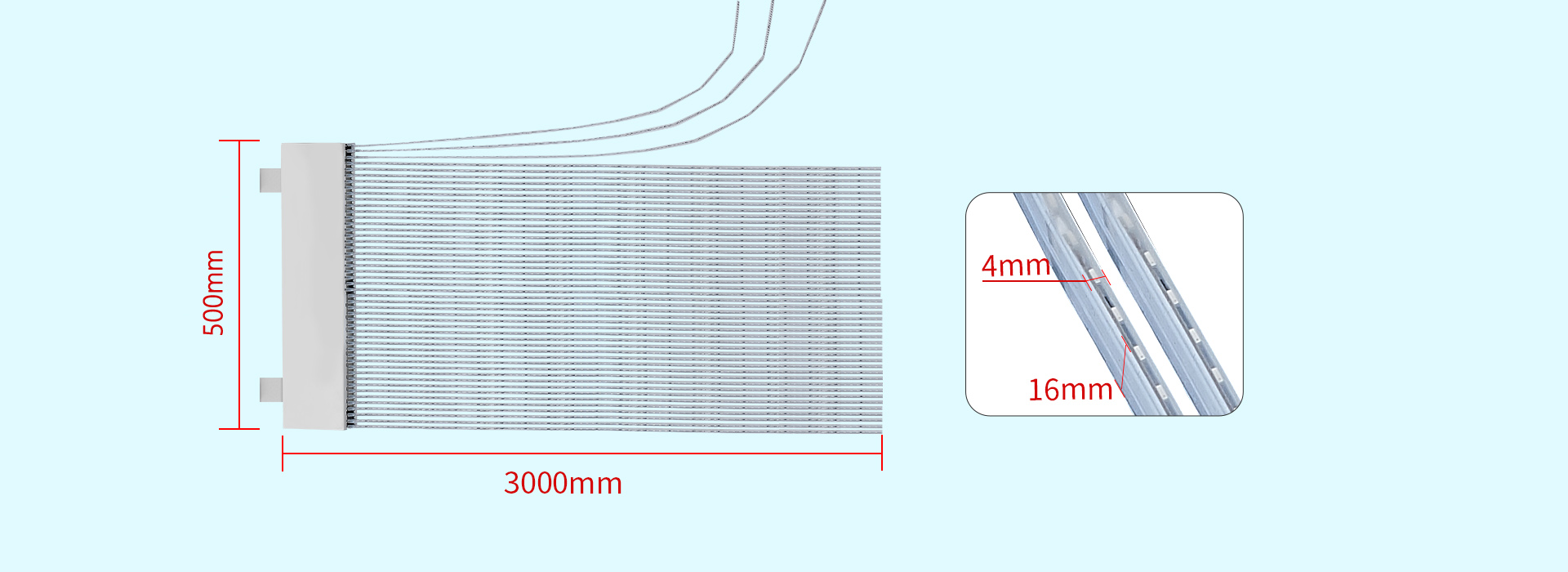

2. Ultra soft and light LED strips, 16mm thickness only and weight is less than 6kg/sq.m.

3. Simple and clean style, no visible frames and cables, transparency up to 80%.

4. Unparalleled flexibility is suitable for versatile shapes LED screens.

5. Unique double-sided LED design can display both sides.

6. Plug-and-play service for easy installation and cost saving.

Inquiry now

The Perfect Combination of Technology and Culture

Completely out of traditional rigid LED display products, Crystal series comes from the idea of Chinese bead curtains cultural elements, and combine modern technology to present elegant visual impact.

Super Thin And Light

Weight less than 6kg/m², and 16mm thickness only. Slim LED strips and high transparency creates perfect image quality and light efficiency. It is the best choice for commercial display, architectural applications, and stage performance.

Simple Style, No Visible Frame

Clean design completely without frames and cables on the display screen. It appears a beautiful curtain even not working.

Double Sided Design, More Than One Screen

With Huasuny unique patented technology, Crystal can display different images on both front and back sides at the same time, and can set different brightness, which not only meets different display needs, but also saves cost.

Easy Installation And Maintenance

Length of LED curtain can be customized and maximum 6m long. It supports plug-and-play service and very easy to replace single strips.

Good Waterproof Performance

Special flexible transparent casing can protect the LED strips from ultraviolet rays and rain. Keep clear and reliable even working in a long period.

Specification

Model	Single Side LED Display			Double-sided LED Display
Model	Crystal-7.8	Crystal-10.4	Crystal-15.6	Crystal-7.8	Crystal-10.4	Crystal-15.6
Pixel pitch	Px:10.4; Py:7.8	10.4mm	15.6mm	Px:10.4; Py:7.8	10.4mm	15.6mm
LED Type	SMD3510
Pixel density	12288Pixels/m²	9216Pixels/m²	4096Pixels/m²	12288x2Pixels/m²	9216x2Pixels/m²	4096x2Pixels/m²
Module resolution	64x384Pixels	48x288Pixels	32x192Pixels	64x384Pixels	48x288Pixels	32x192Pixels
Panel size	500x3000x16.5	500x3000x16.5	500x3000x16.5	500x3000x16.5	500x3000x16.5	500x3000x16.5
Brightness	3000nit	3000nit	3000nit	1500nit	1500nit	1500nit
View angle（Hor/Vert）	160°/140°
Optimal visual distance	8m	10m	15m	8m	10m	15m
Refresh rate	3840Hz
Gray scale	14bit
Transparency	55%	55%	70%	55%	55%	70%
Scan model	Static
Power consumption （max/avg）	500/167W/m²
Power input	100~240VAC/50~60Hz
Working Voltage	DC 5V
Signal input	AV,S-Video,VGA,CVBS,HDMI,DVI
Control system	Novastar
IP rating	IP40
Body material	silicon rubber case
Weight	≈6.3kg/m²	≈6kg/m²	≈5.6kg/m²	≈6.3kg/m²	≈6kg/m²	≈5.6kg/m²
Life span	≥50000 H
Operating temperature	-20~+50℃
Maintenance	Rear
Certification	CE, FCC,RoHS
