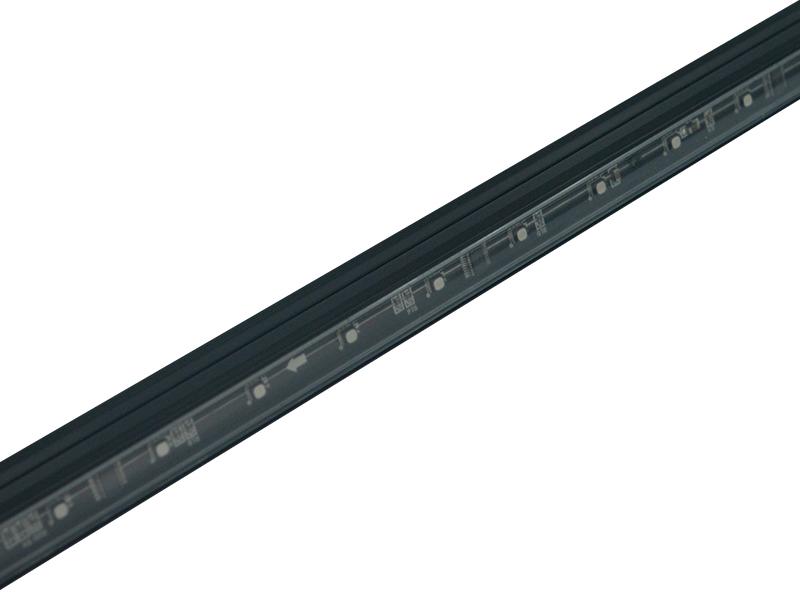

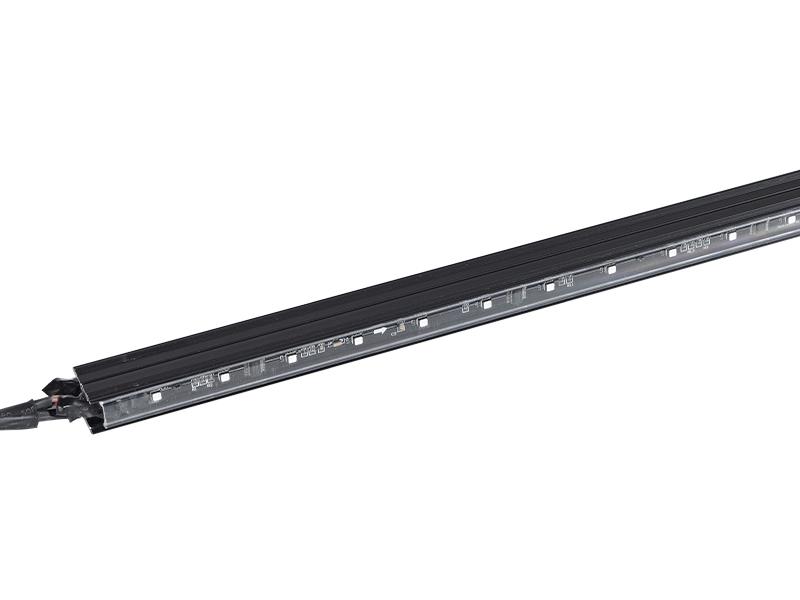

Customized RGB Pixel Strips LED Display PS Series

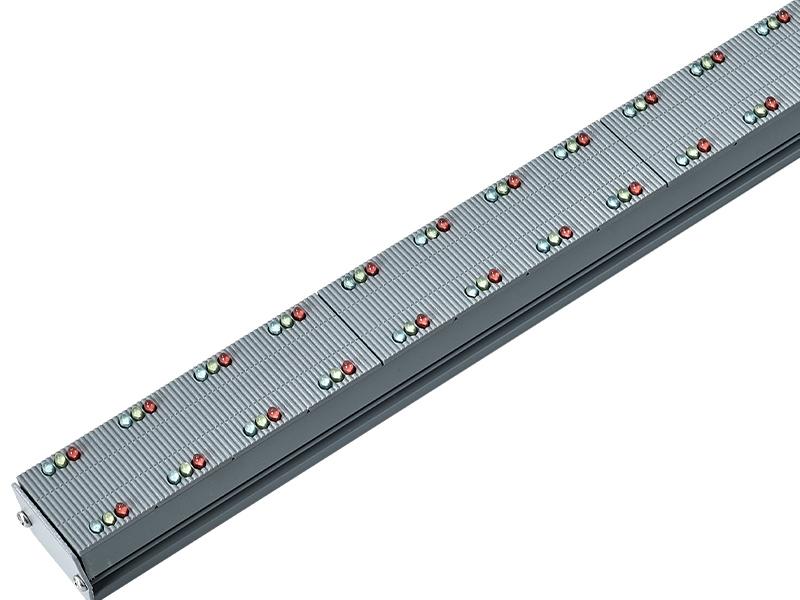

1. Pixel Strip series led display was designed in 2015. The main structure is Aluminum, with SMD led or DIP led. It can be suitable for indoor or outdoor.

2. Its transparency can reach at 60%, it can give people more visual space.

3. It also can be made into double-sides according to your need.

4. It is thin, light, easy to install and maintain.

5. The size can be custom-made, as well as the shapes. to make beautiful LED video wall.

6. Pixel Strip is widely used in different projects such as exhibition ,shopping mall, restaurant live shows, etc.

Inquiry now Brochure Download

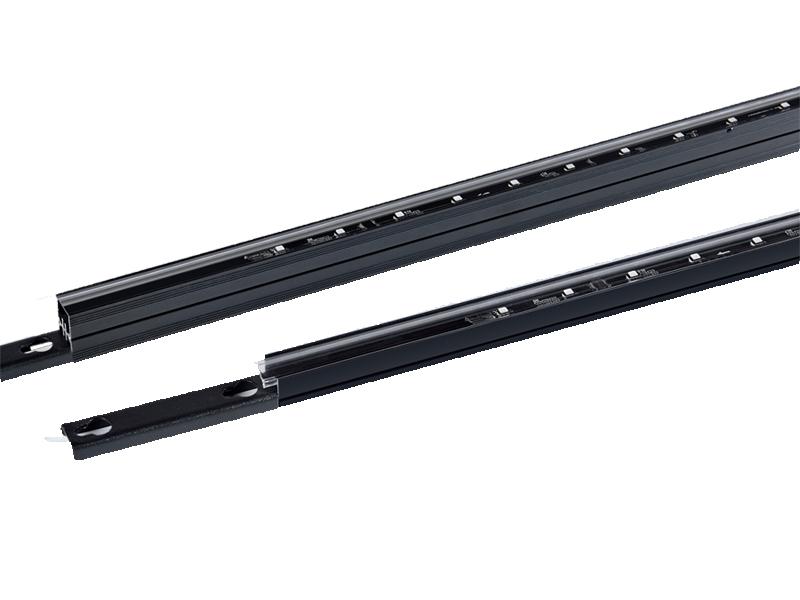

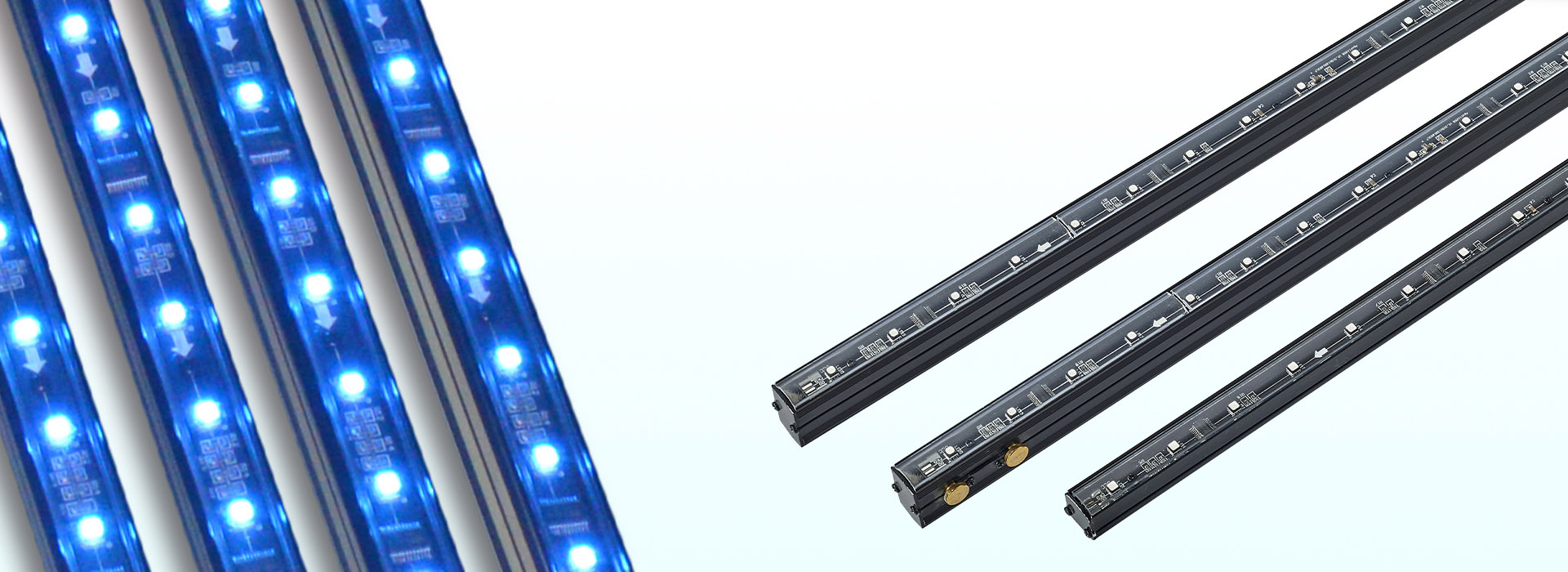

Aluminum Housing With PC Mask, Strong and Durable

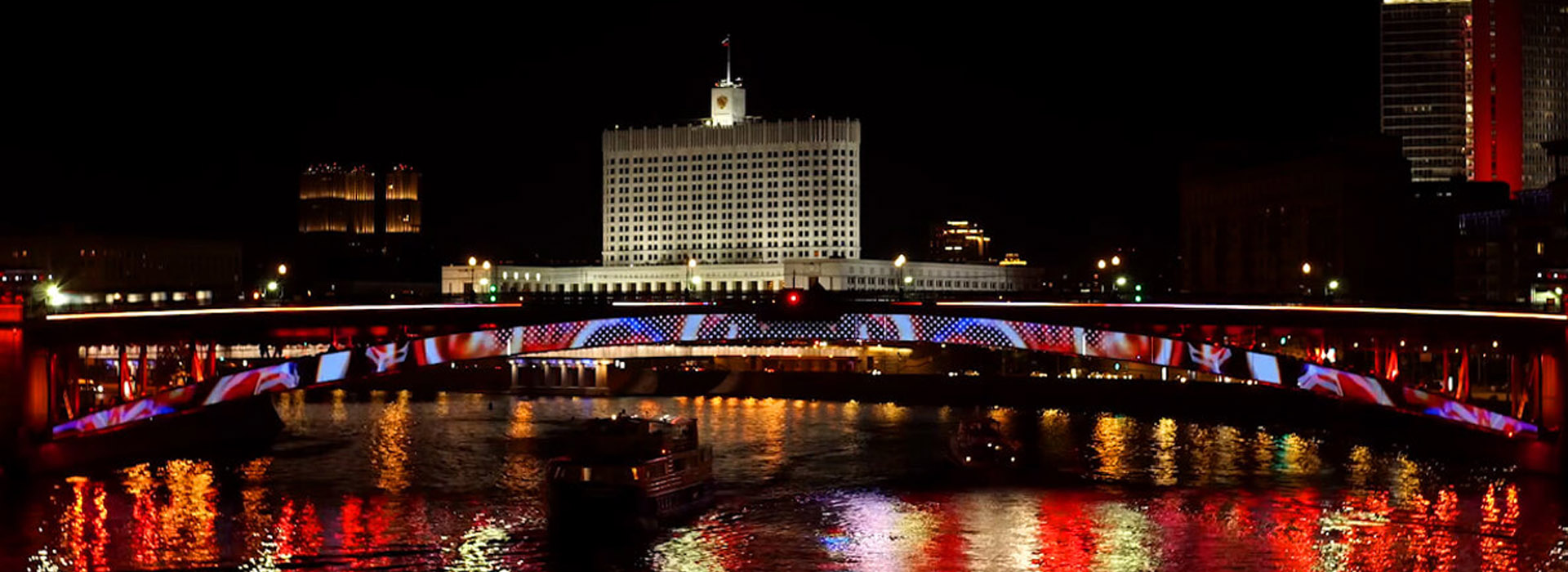

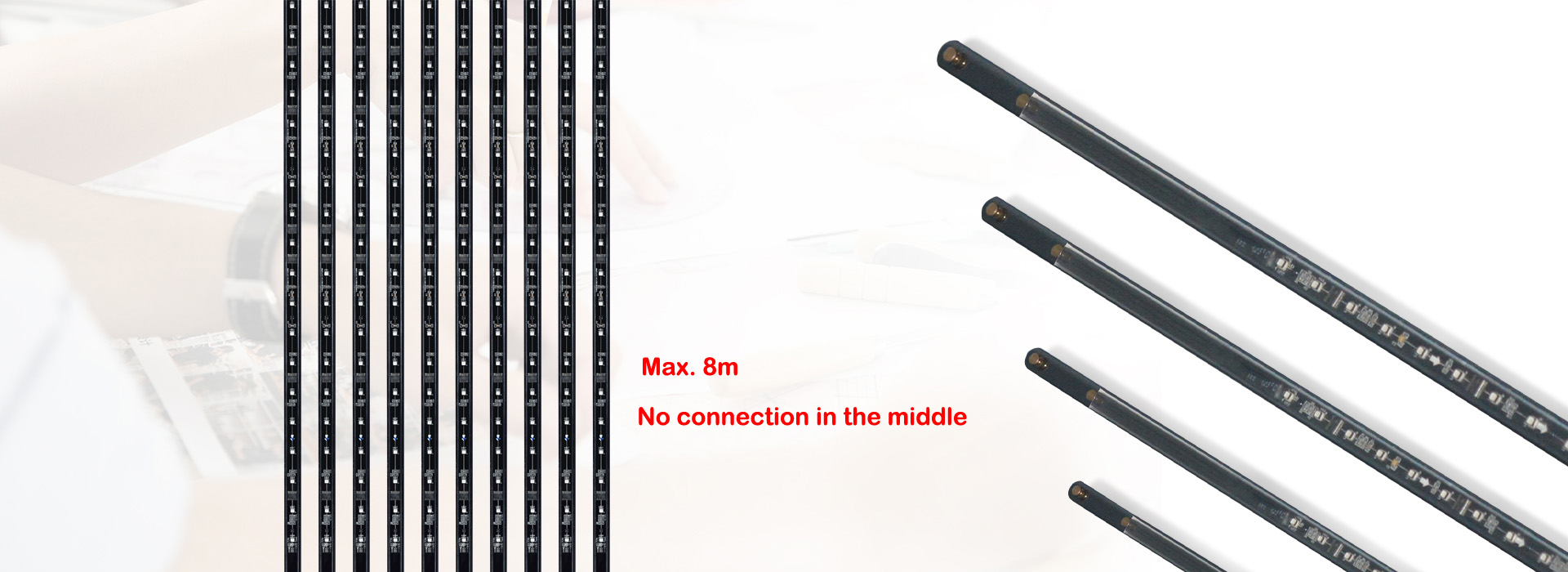

Customized Sizes

The Length of strips can be customized, maximum 8 meter, widely used in different projects such as exhibition ,shopping mall, restaurant live shows, etc.

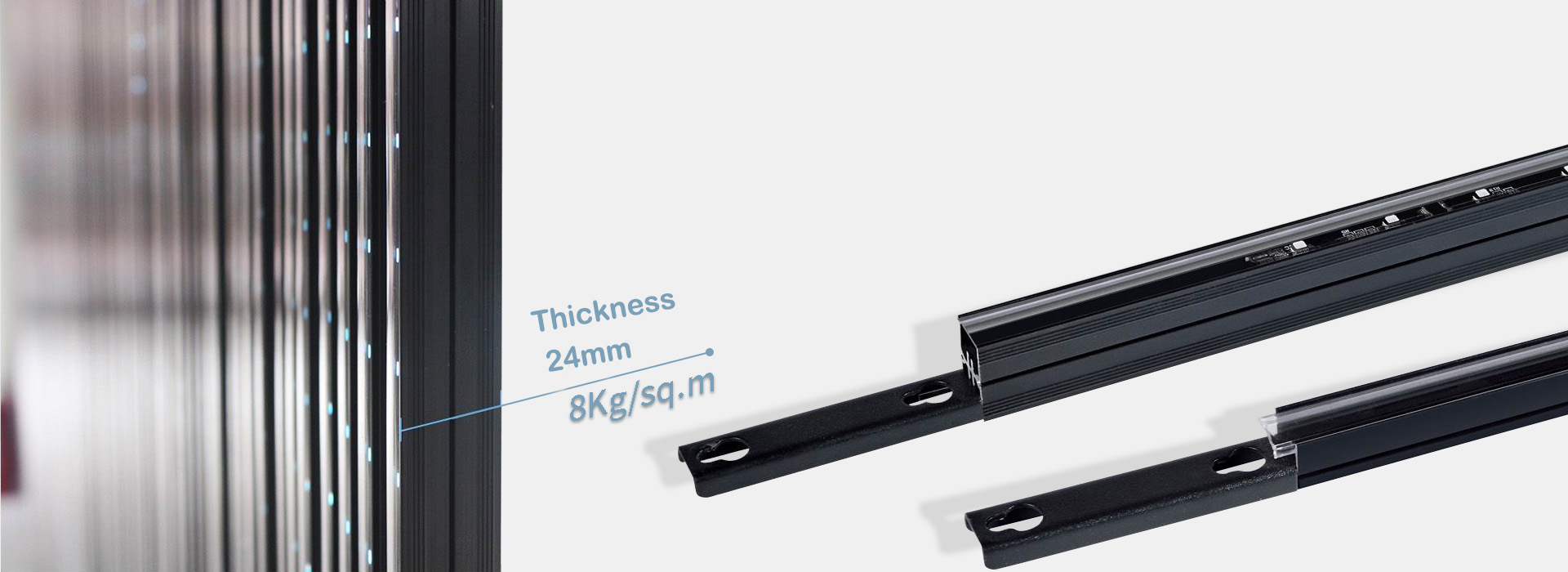

Double-sided LED Display

One screen, two images.Thickness 24mm, weight 8kg/sq.m

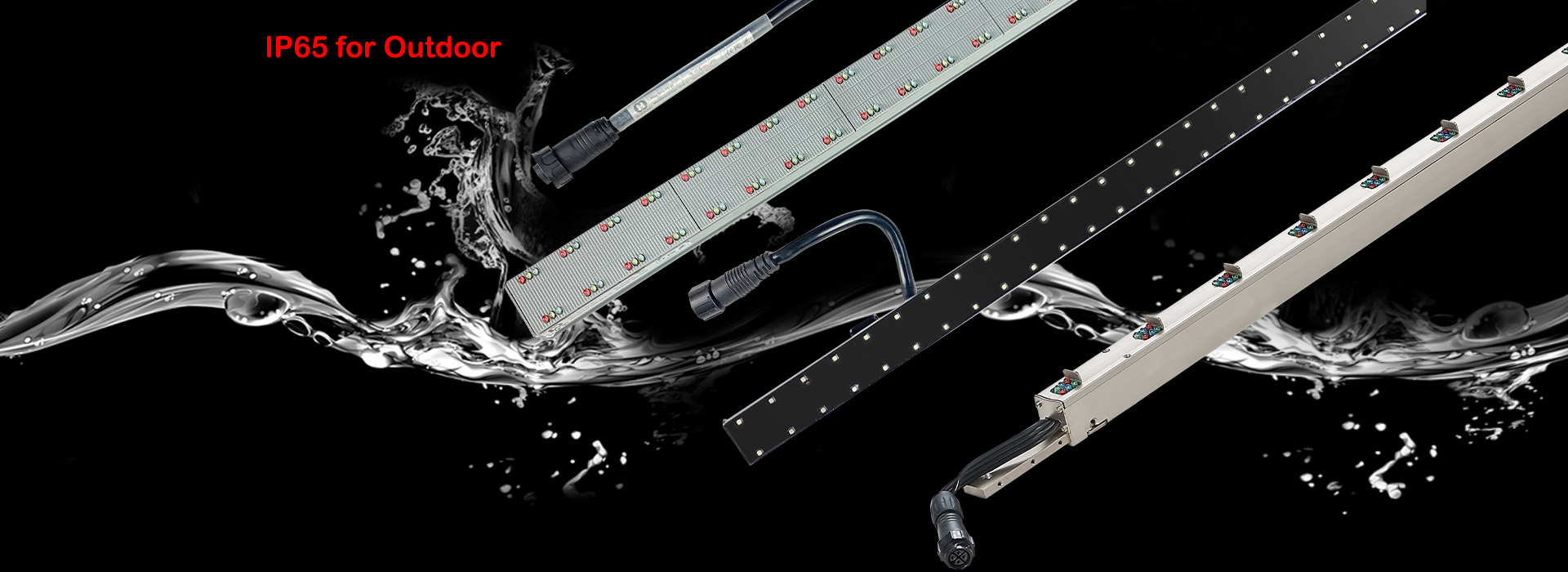

High Transparency and IP65 for All Weather Applications

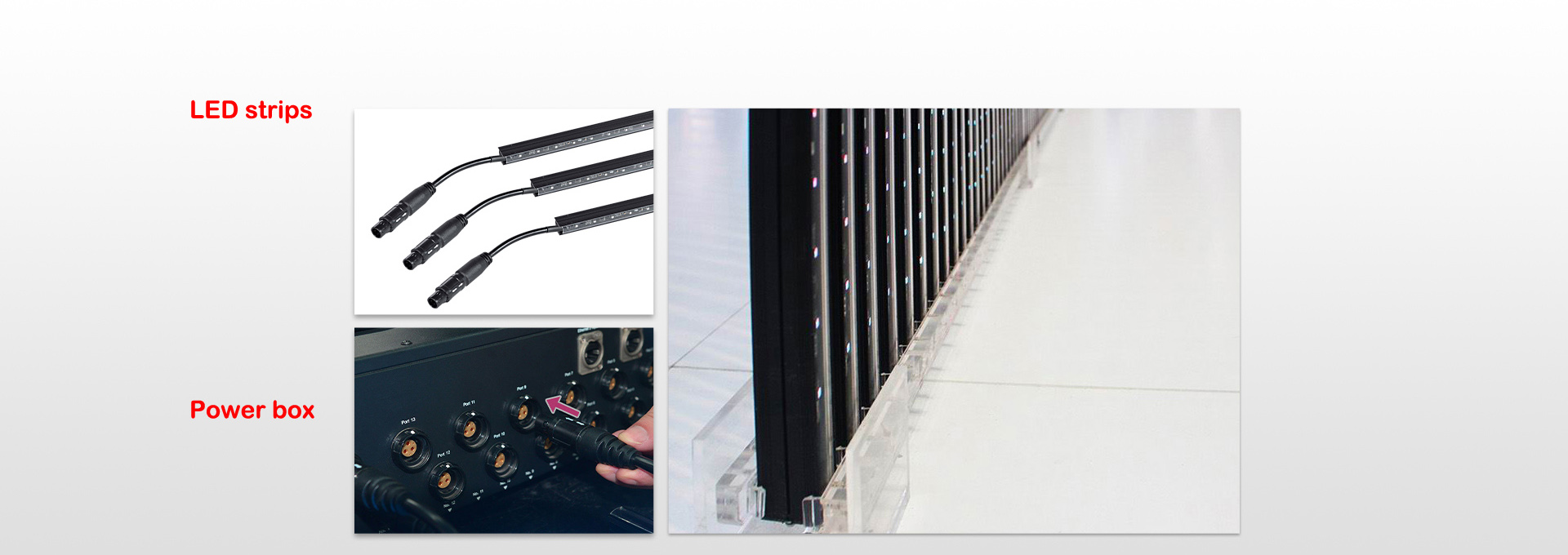

Easy For Installation

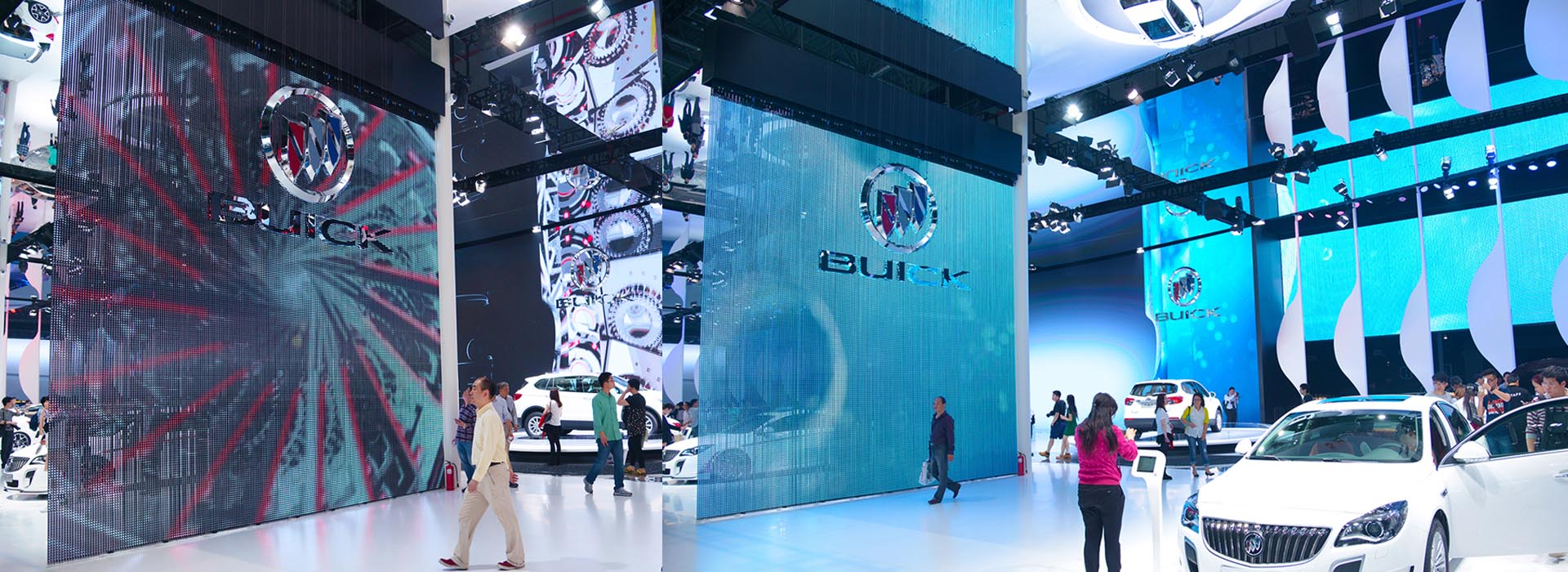

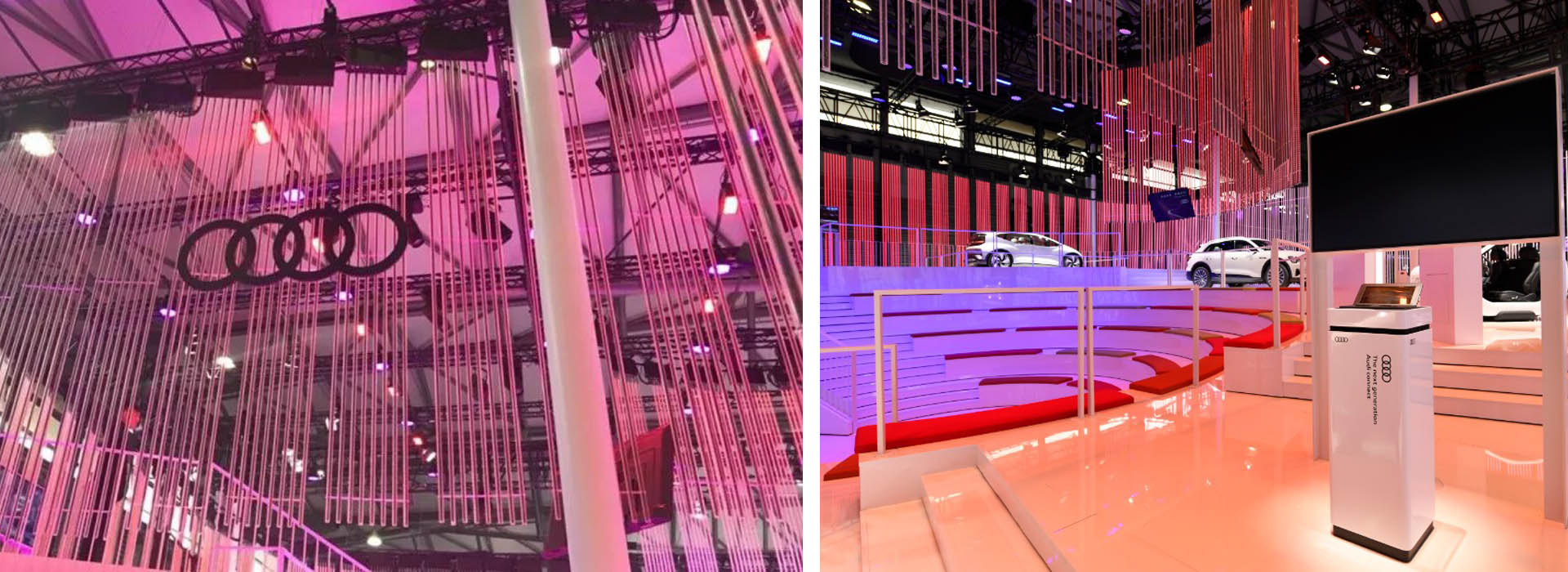

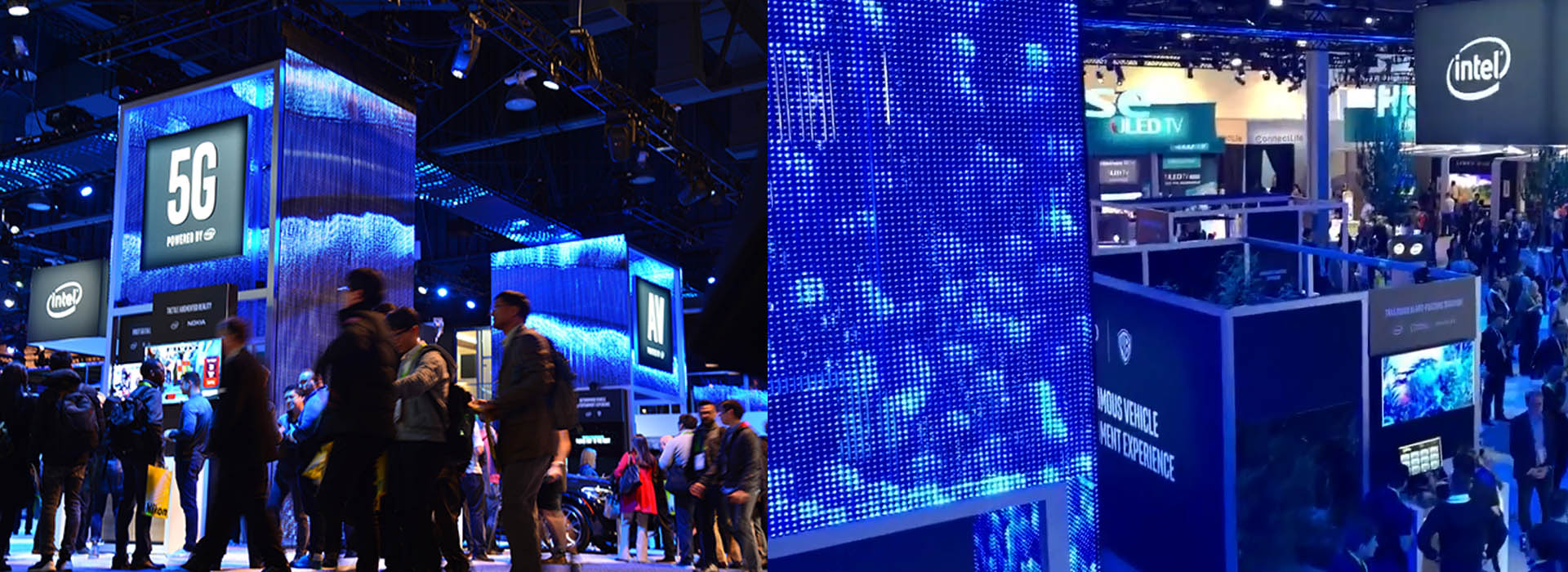

Ingenuity for Brand Display

Specification

Model	PS-10	PS-18	PS-20	PS-25	PS-31.25	PS-100
Pixel pitch (mm)	10.42	18.75	20	25	31.25	100
Pixel density (Pixels/m²)	9216	2844	2500	1600	1024	256
Pixel configuration	RGB /DIP 3-IN-1 SMD LED
Brightness White (Nits)	1500nits-5000nits
Optimal visual distance (m)	10	15	18	31	39	78
Transparency	20%	32%	40%	45%	55%	60%
Recommended size (W*H)(mm)	500x3000	500x3000	500x3000	600x3200	750x3000	1500x994
Max power consumption (W/m²)	500	480	480	480	300	180
Average power consumption (W/m²)	170	160	160	160	100	60
Weight (kgs/m²)	10	9.7	9.5	9	7	11
Work voltage	DC 5V	DC 5V	DC 5V	DC 5V		DC 24V
Gray scale (bit)	16
Refresh rate (Hz)	3840
View angle	Horizontal:120°;Vertical:120°
Drive mode	Constant current
Signal input	AV,S-VIDEO,VGA,CVBS,HDMI,DVI,ect
Body material	Aluminium
IP rating	IP40/IP 65
Operating temp/Humidity	-40~+60℃/10%~90% RH
Installation	Hang
Package	Wooden Crates/Flight cases
Certificate	CE,FCC,RoHS

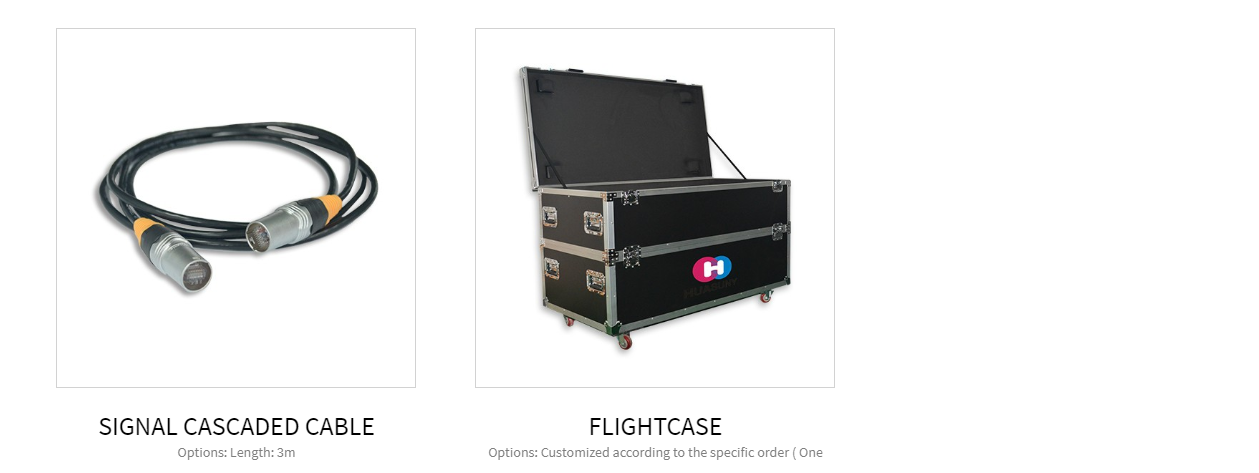

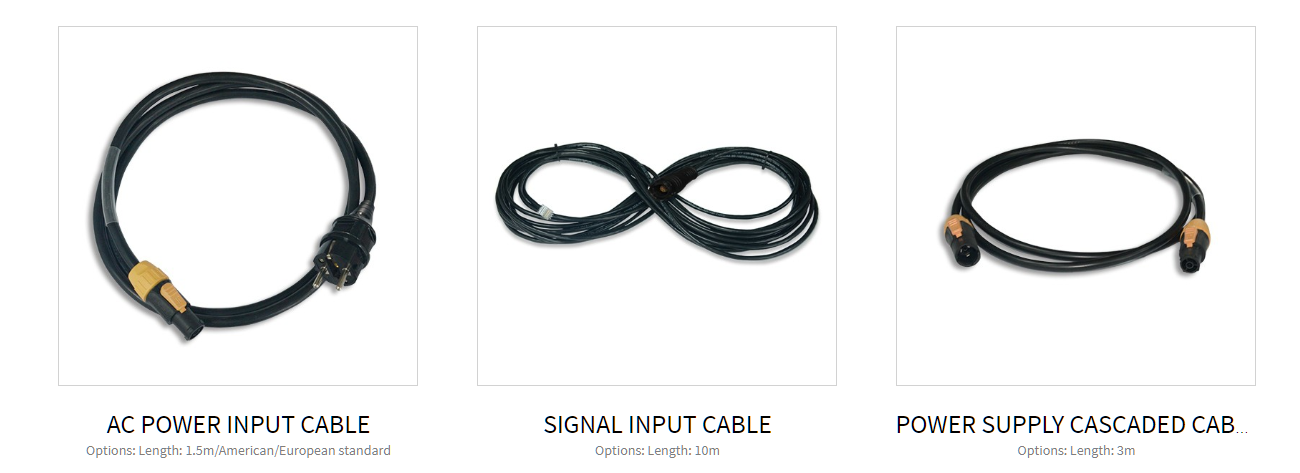

Accessories
