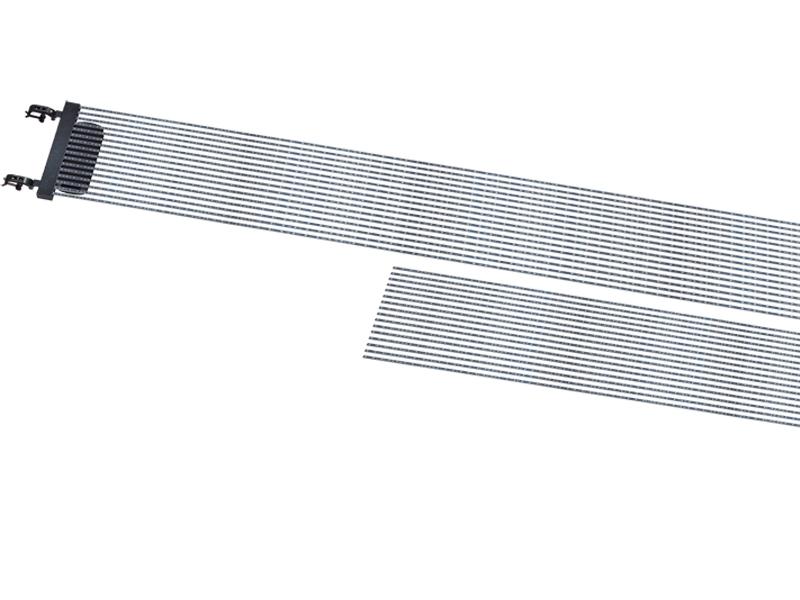

Rollable Transparent Soft LED Curtain Apollo Series

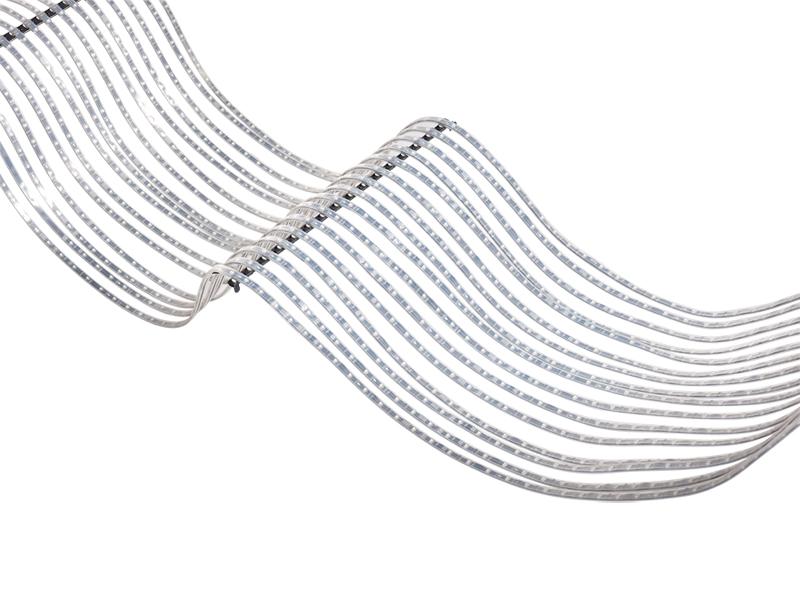

1.Apollo series flexible LED displays are composed of softLED strips which have FPC and silicone rubber coating, so it is very soft and flexible and higher transparent.

2.It looks like a crystal curtain to bring more creative application.

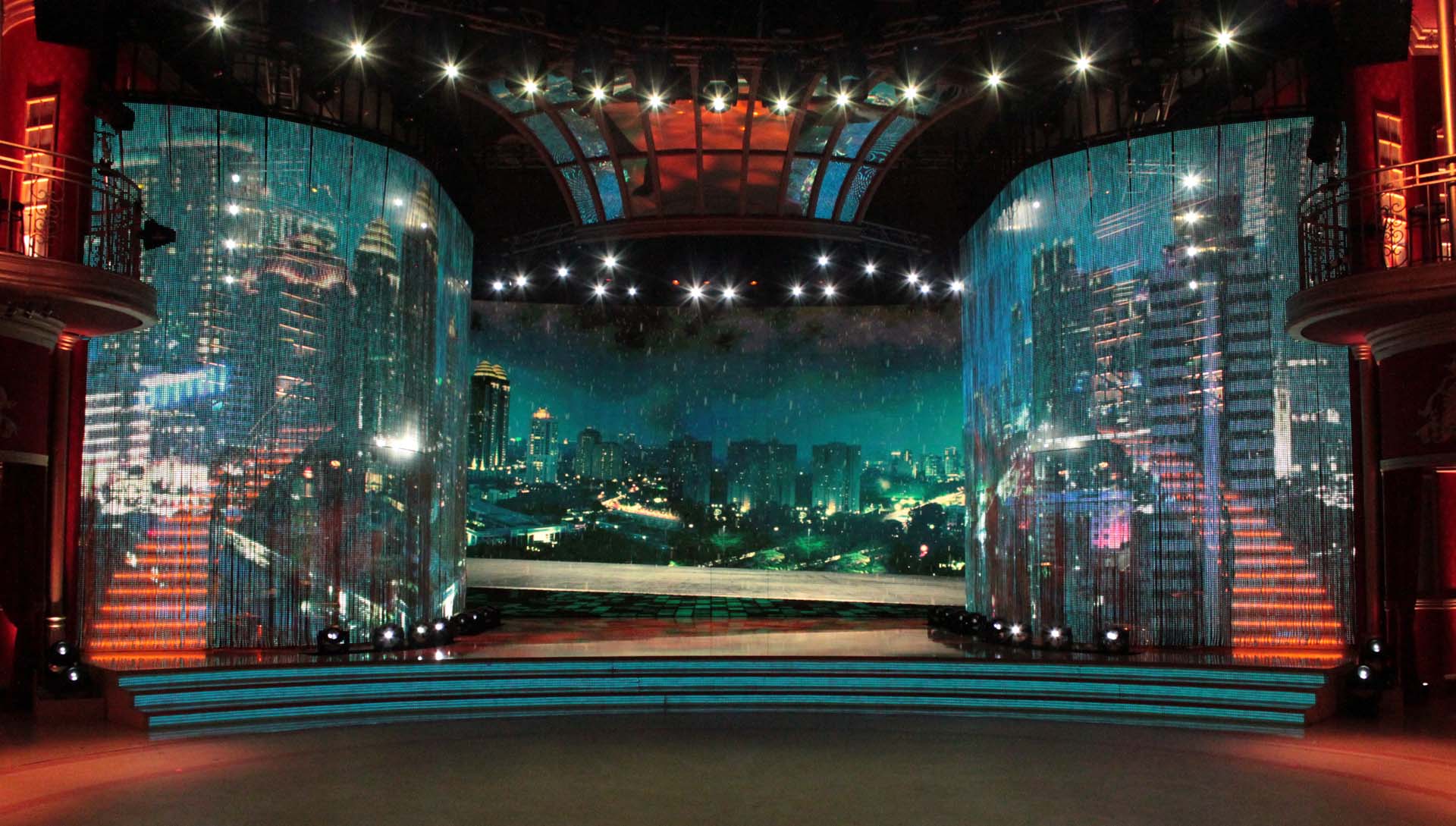

3. It is applied in fashion shows, trade shows, theme parks, music concerts, visual stage, shopping mall advertising, video wall, indoor decoration and more.

Inquiry now Brochure Download

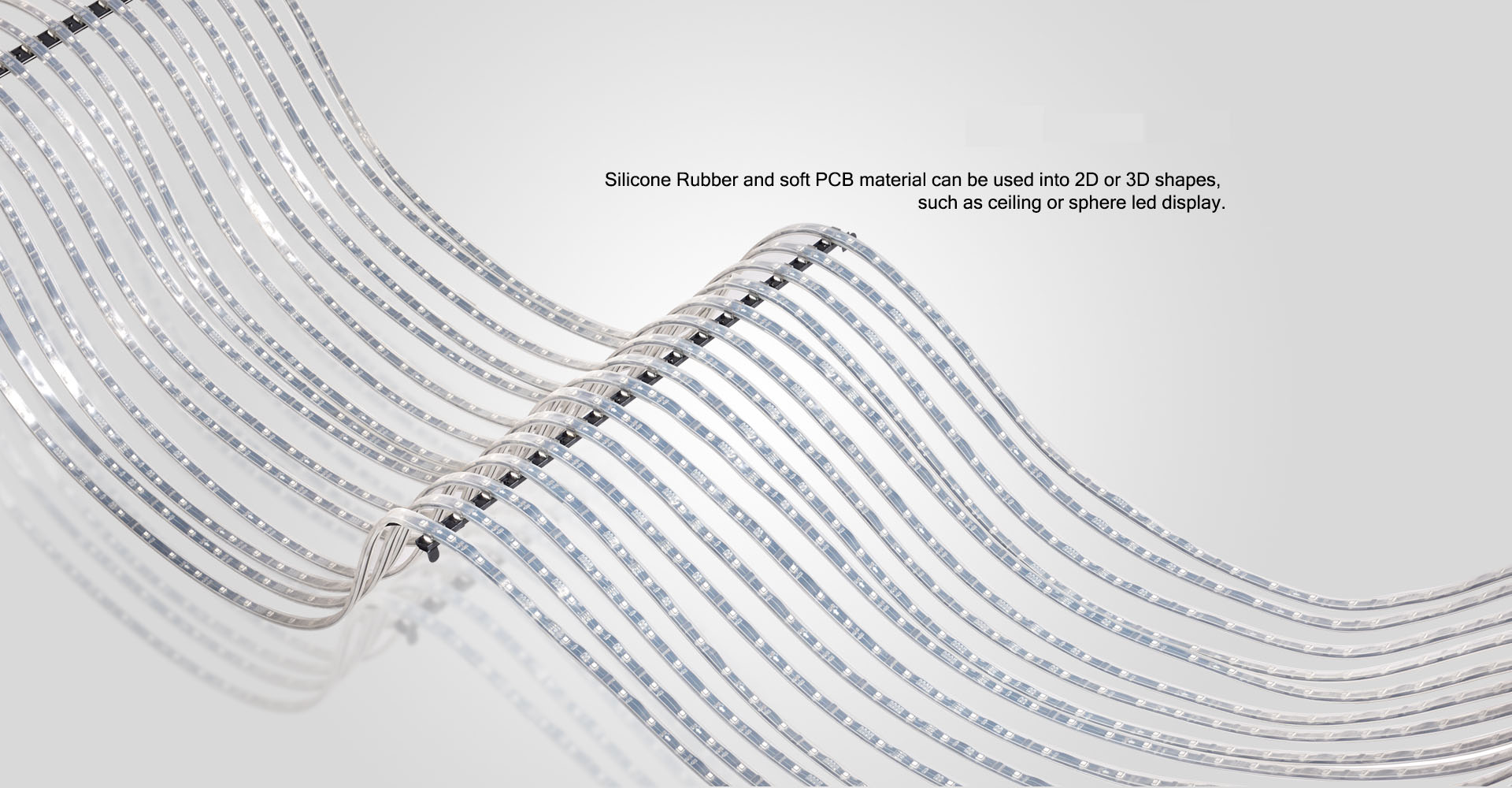

Extremly Soft for Creaitve Design

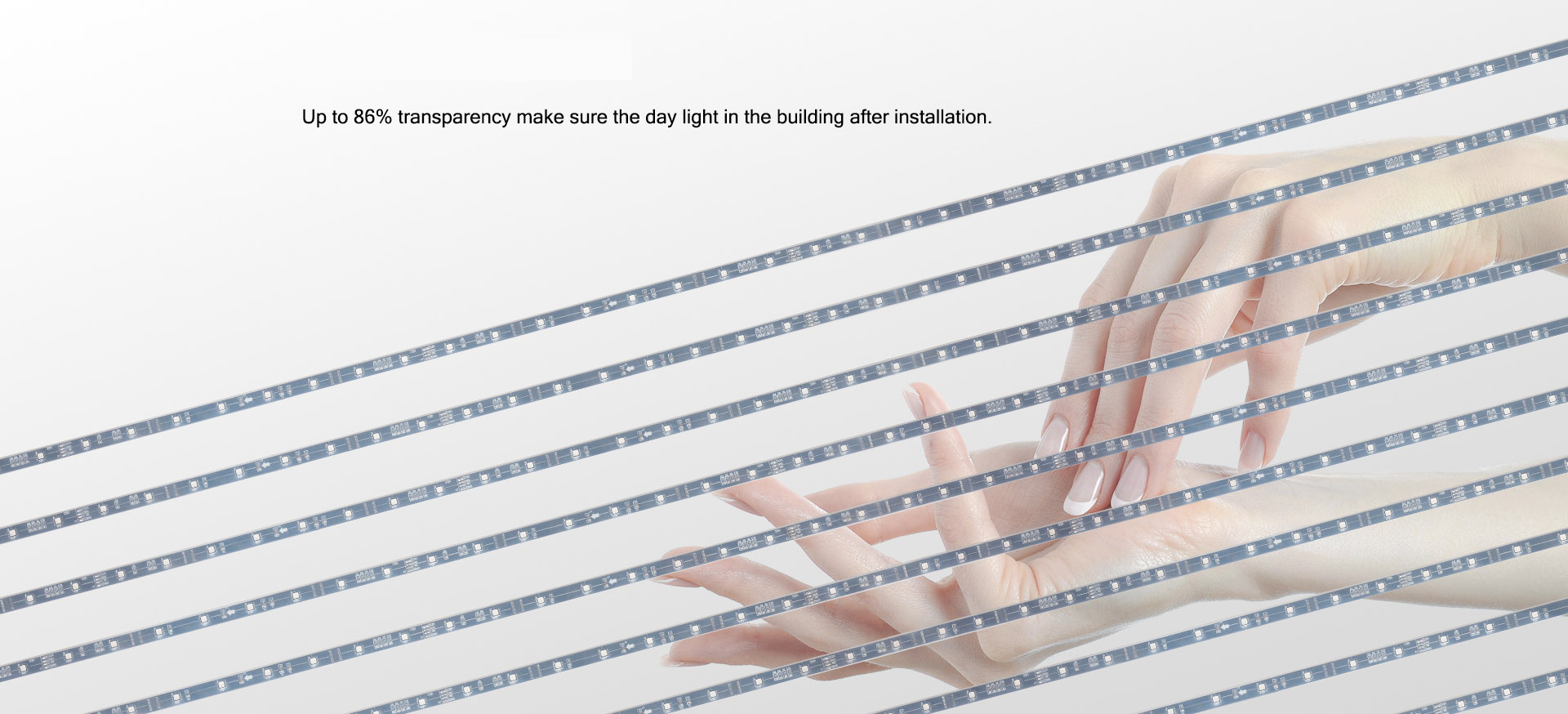

High Transparency

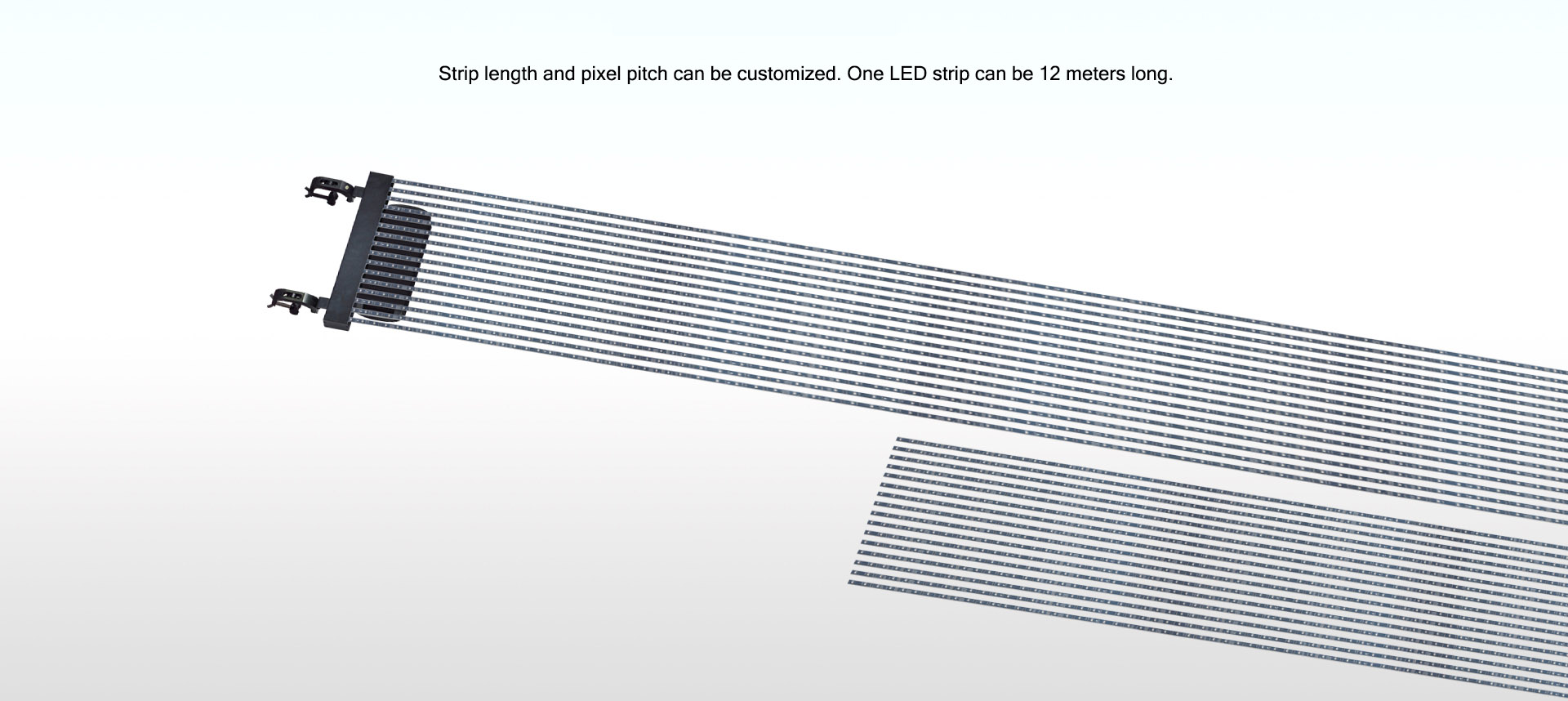

Customized Sizes

Ultra Light And Slim

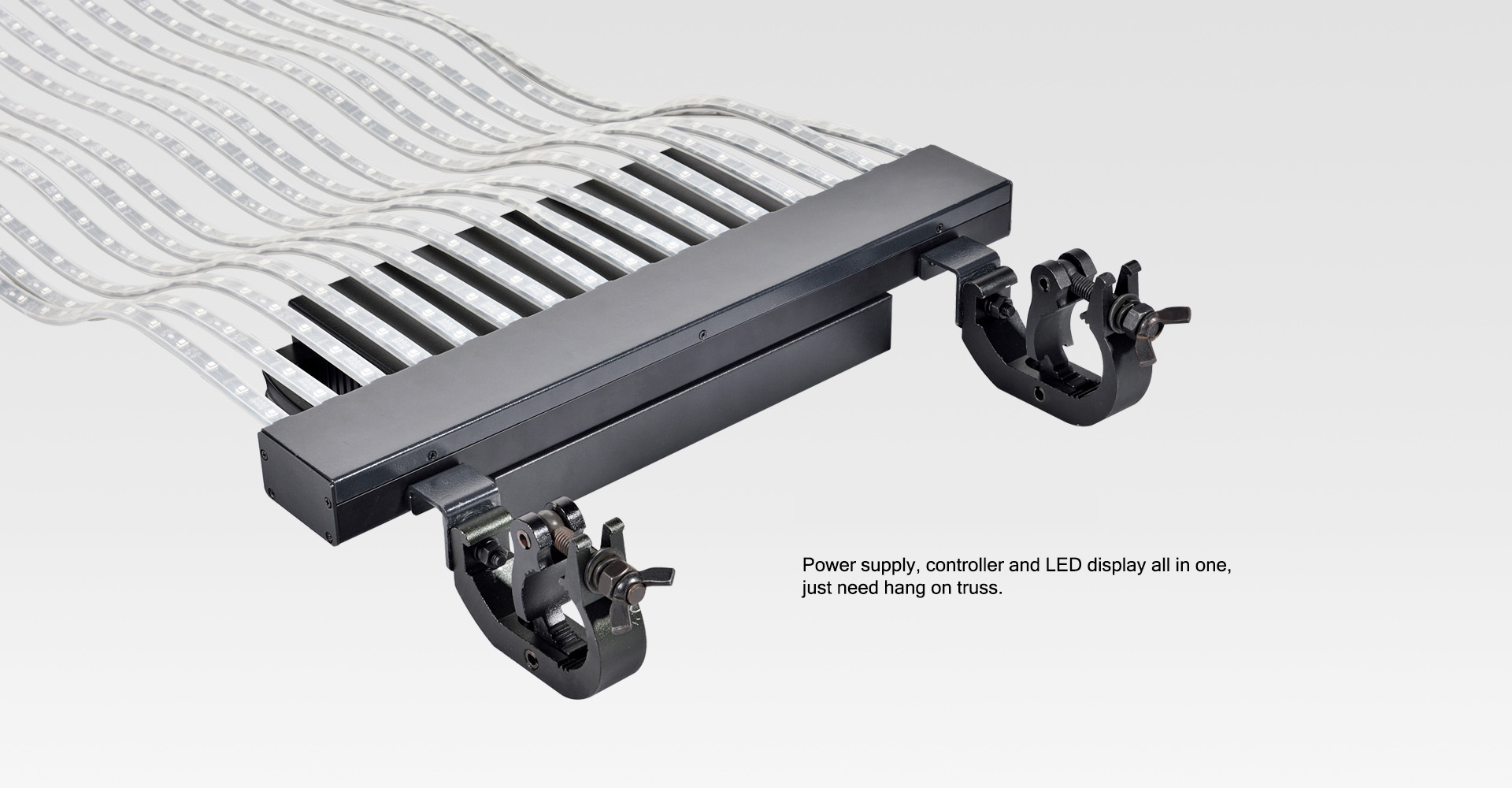

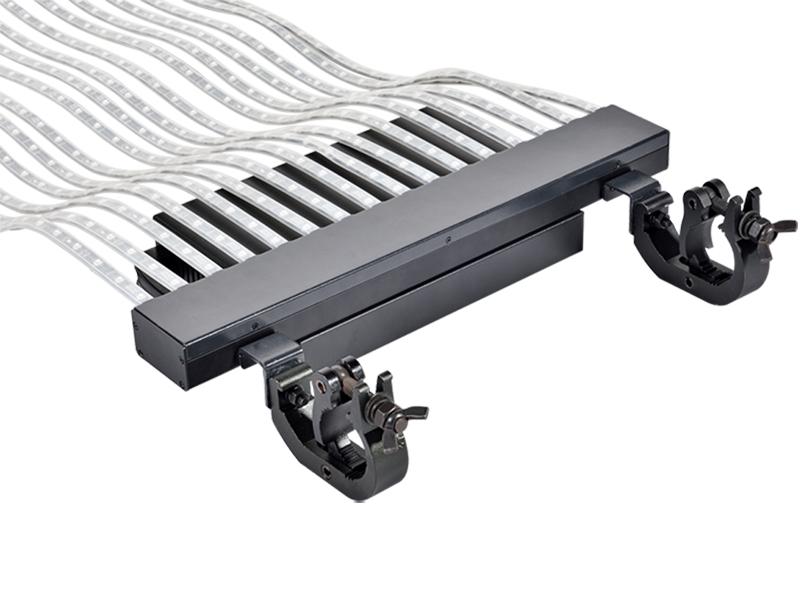

Easy Installation

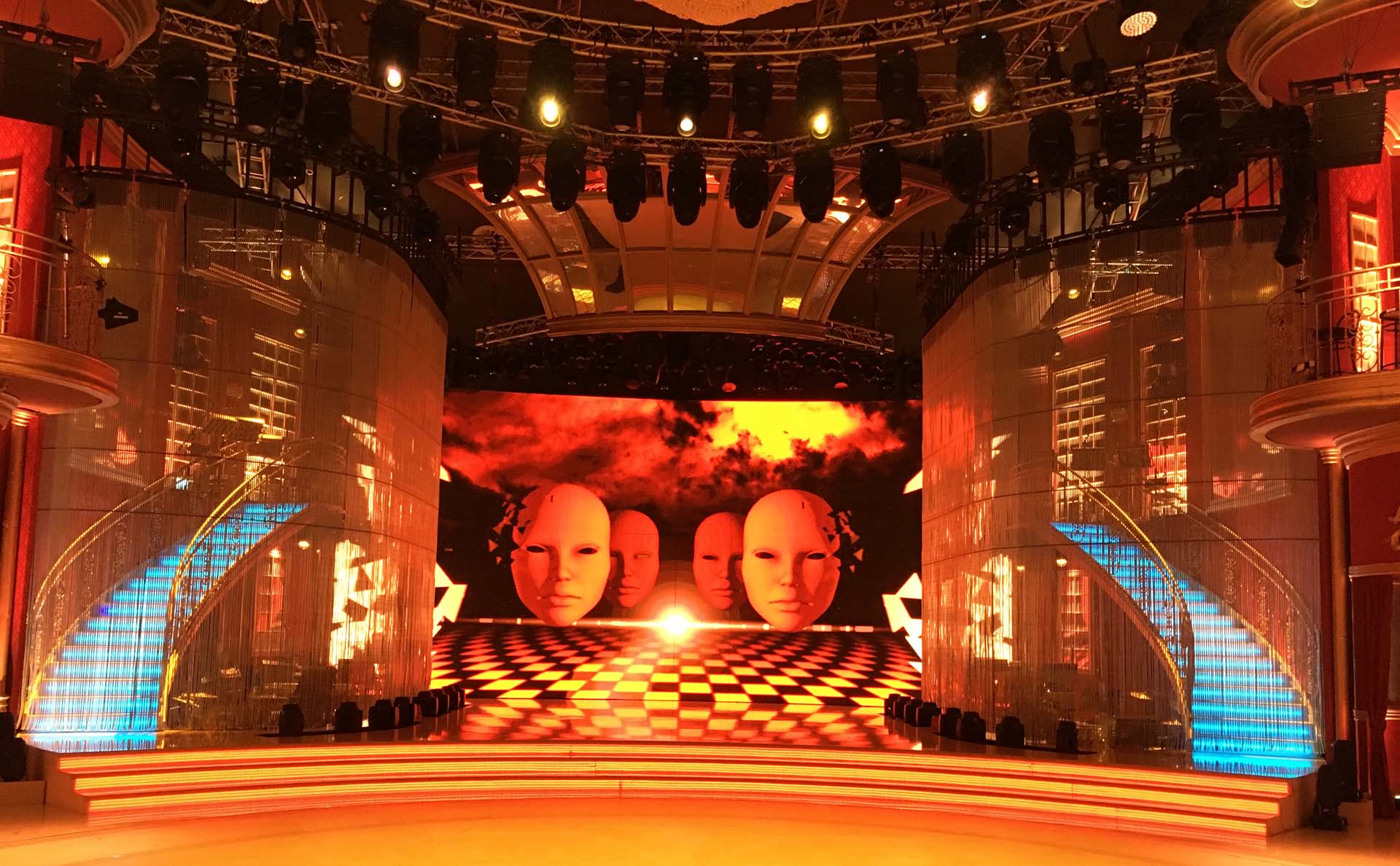

Applications

Specification

Model	Apollo 20	Apollo 25		Apollo 30		Apollo 37
Pixel Pitch	20.83	25		31.25		37.5
Brightness	2700 nits	1700 nits		1700 nits		1200 nits
Panel Dimensions	500*2000	600*2400		500*2500		600*3000
Panel Material	FPC + Silicone Rubber Coationg
Panel Weight (kgs/㎡)	3.8	3.2		2.8		2.5
Pixels	SMD RGB 3-IN-1 SMD LED	RGB 3-IN-1 SMD LED		RGB 3-IN-1 SMD LED		RGB 3-IN-1 SMD LED
Transparancy	40%		55%		60%		70%
Panel Resolution	24*96	24*96		16*80		16*80
Pixel Density (pixel/㎡)	2300	1600		1024		711
Refresh Rate	2040
Grayscale	14 bit
Viewing Angle(H/V)	120°/120°
Ingress Protection	IP40
Power(max/ ave.)	680/230	480/160		450/150		315 / 105
Drive mode	Constant Current
Installation	Hanging

Related Tags :

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : Rollable Transparent Soft LED Curtain Apollo Series

Related Products

UHD Commercial Small Pitch LED Screen MiniFlex

1.Adopts breakthrough innovative technology to achieve the real seamless splicing LED video walls. 2.Small pitch P1.2/P1.5/P1.8/P2/P2.5 are providing solutions for dispatching center, command center, broadcasting room, TV center, meeting room, stock exchange, press conference, etc. 3. Light weight and ultra thin, the perfect combination of appearance and function will surely lead the industry trend.

Light Weight Flexible LED Display Galaxias Series

1.The Galaxias series targets both indoor and outdoor applications. 2.The pixel pitch varies from 3.9mm to 12mm that provides an optimal viewing distance from 3 to 20 meters, which satisfies most of the applications. 3. The Galaxias series is characterized with the following features: flexibility, ultra lightweight, front & rear service, and easy installation.

Stage LED Display X Panel For Touring

1. High quality indoor and outdoor stage LED screen. 2. Unique X structure design, safe and reliable. 3. Magnesium alloy materials frame, light weight and high efficient for installation and transportation. 4. Front and rear maintenance. 5. Pixel pitch P2.9, P3.9 and P4.8, perfect for stage, exhibition,entertainment,sports, large events etc. 6. All Huasuny X/XO panels can be used on X Rover Plus multifuntion LED display integrated with video, lighting and movement.

HD LED Display Video Wall X/XO Panel

IP65 Stainless Steel LED Panel Diamond Series

1. Stainless steel frame makes the led screen life up to 10 years and durable. 2. Simple structure and customized size, different shapes can be spliced easily. 3. High-tech technology signal transmission more than 10 meters between the controller and the LED panel. 4. Unique waterproof mask design suitable for various indoor & outdoor highly humid environments such as building exterior walls, fountains, swimming pools etc.

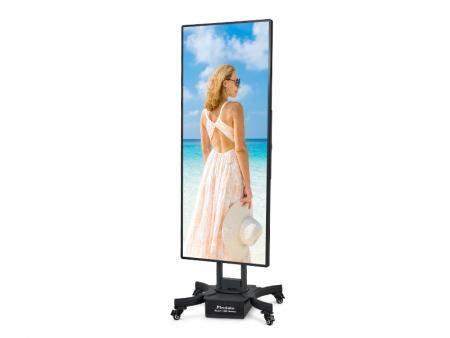

Rotating Advertising Display Smart Poster
