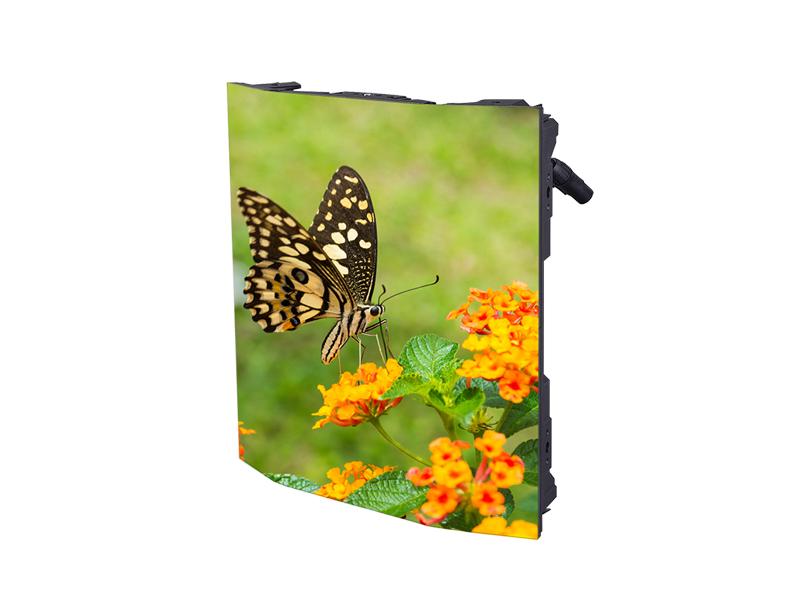

All-in-one Outdoor Rental LED Screen Raptor Pro Series

Raptor Pro series is HUASUNY’s latest intelligent flexible LED display. It adopts patented automatic drive mechanics technology,making a new era of all-in-one screen with rigidity and flexibility.

Features:

1. Automatically bending concave & convex angles up to 30°.

2. LCD screen displays precise bending angle and parameters

3. Magnesium alloy frame, light weight only 7.5kg/cabinet.

4. Versatile rigid-flexible screens, seamless splicing, and cost-saving.

5. Up to 5000nits brightness and IP65 rated.

Inquiry now

The Screen Ahead

Raptor Pro series uses advanced AI technology to make it bend to any angles automatically.

It is the screen of future with a new experience in excellent visual quality, rigid-flex options , intelligent control, and unique design.

Multifunctional and cost-saving LED panel meets all your design requirements.

Stunning Visual Experience

HDR technology,low reflection, and high contrast delivers true color.

Automatically Bending To Any Angle with One Button

Raptor Pro adopts patented automatic drive mechanics technology to make it automatically bend concave & convex angels up to 30°

and keep 100% consistent in different curved cabinets.

Its LCD screen can display precise bending angles and parameters.

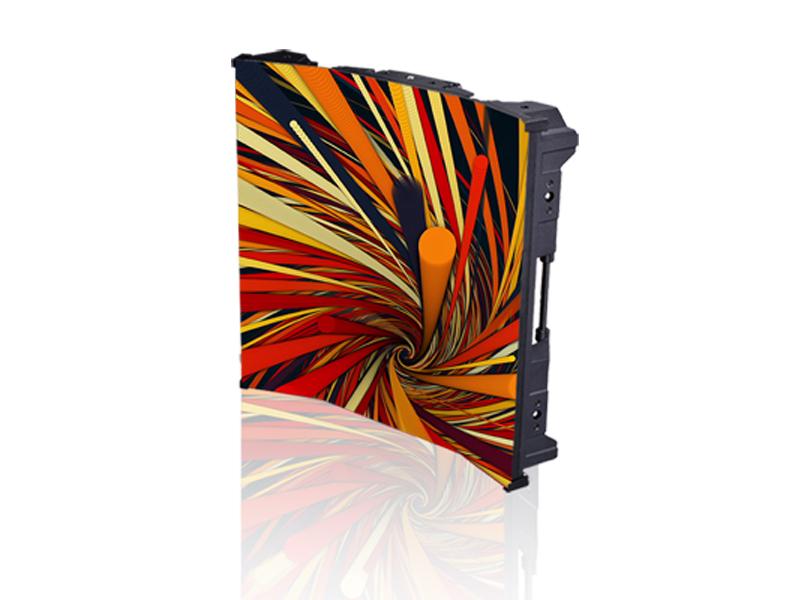

Unparalleled Flexibility

Raptor Pro can easily create curves up to ±30 degrees, ideal for various shapes with seamless splicing,including flat, curve, or circular etc.

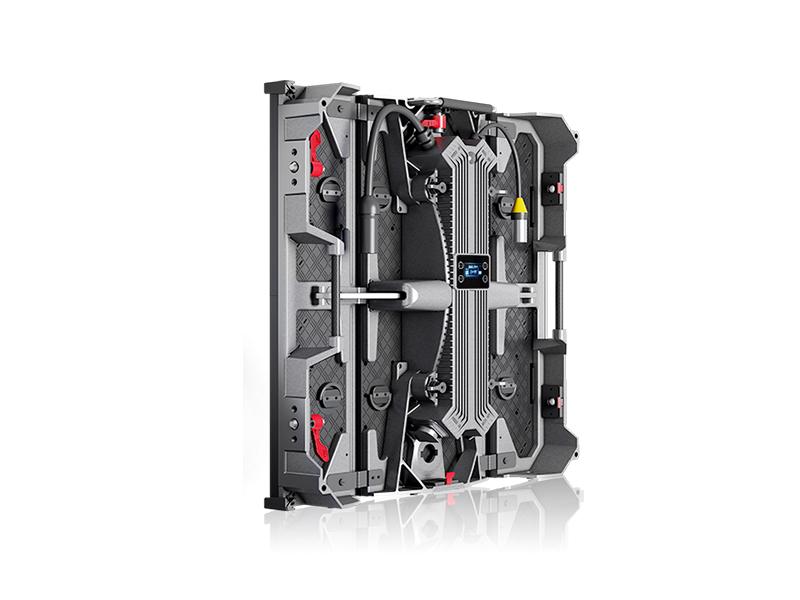

Front And Rear Module Service

Raptor Pro panel allows for both front and rear service, making maintenance easy and cost-effective.

Stacking And Hanging System

IP65 Waterproof

Specification

Raptor Pro (Outdoor)

Raptor Pro	RO 3.9	RO 4.6	RO 5.9	RO 6.9
Pixel pitch	3.9mm	4.6mm	5.9mm	6.9mm
LED	SMD 1921 RGB 3-IN-1	SMD 1921 RGB 3-IN-1	SMD 1921 RGB 3-IN-1	SMD 1921 RGB 3-IN-1
LED module size	250×250mm	250×250mm	250×250mm	250×250mm
Pixel density	65536 Pixels/m²	46656 Pixels/m²	28224 Pixels/m²	20736 Pixels/m²
Module resolution	128×128 Pixels	108×108 Pixels	84×84 Pixels	72×72 Pixels
Panel size	500×500mm	500×500mm	500×500mm	500×500mm
Brightness	5000nits	5000nits	5000nits	5000nits
Refresh rate	3840Hz	3840Hz	3840Hz	3840Hz
Scan model	1/16	1/18	1/7	1/6
Gray Rate	14bit	14bit	14bit	14bit
View angle（Hor/Vert）	160°/140°
Power consumption （max/avg）	720/240 W/m²
Curving (Concave & Convex)	Concave 30°~Convex 30°
Power input	100~240VAC/50~60Hz
Working Voltage	DC 4.6V
Signal input	AV,S-Video,VGA,CVBS,HDMI,DVI
Control system	Nova
IP rating	IP65,Outdoor
Frame material	Magnesium Alloy
Panel weight	7.5kg
Operating temperature/ Humidity	20°~45°C, 10~90%RH
Serviceability	Front/Rear
Certifications	CE,FCC,RoHS
