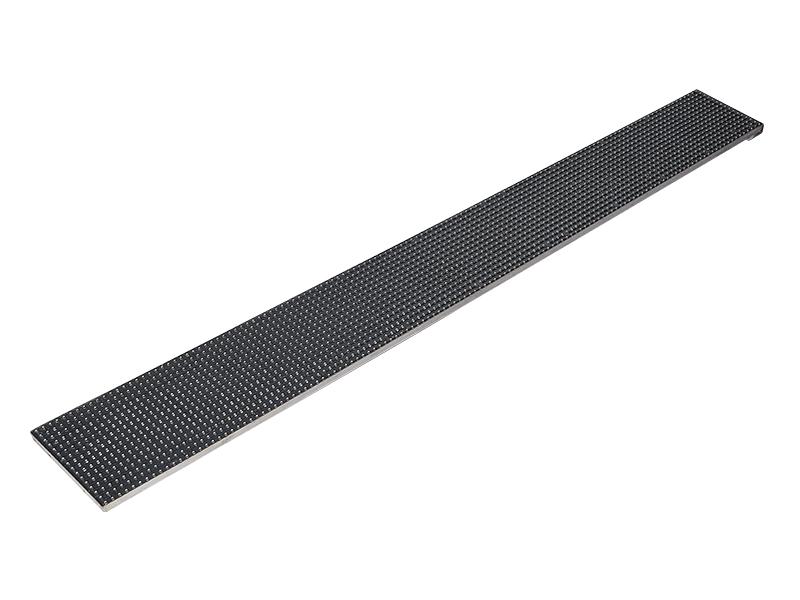

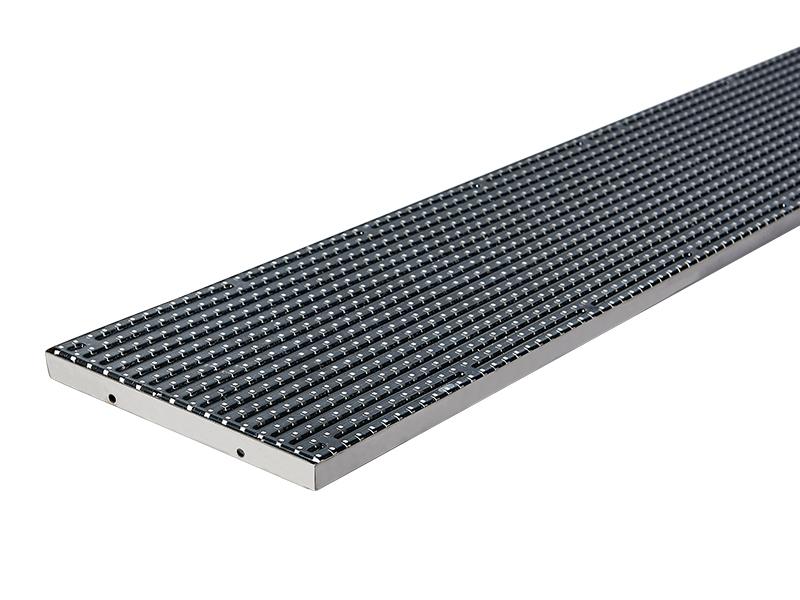

IP65 Stainless Steel LED Panel Diamond Series

1. Stainless steel frame makes the led screen life up to 10 years and durable.

2. Simple structure and customized size, different shapes can be spliced easily.

3. High-tech technology signal transmission more than 10 meters between the controller and the LED panel.

4. Unique waterproof mask design suitable for various indoor & outdoor highly humid environments such as building exterior walls, fountains, swimming pools etc.

Inquiry now

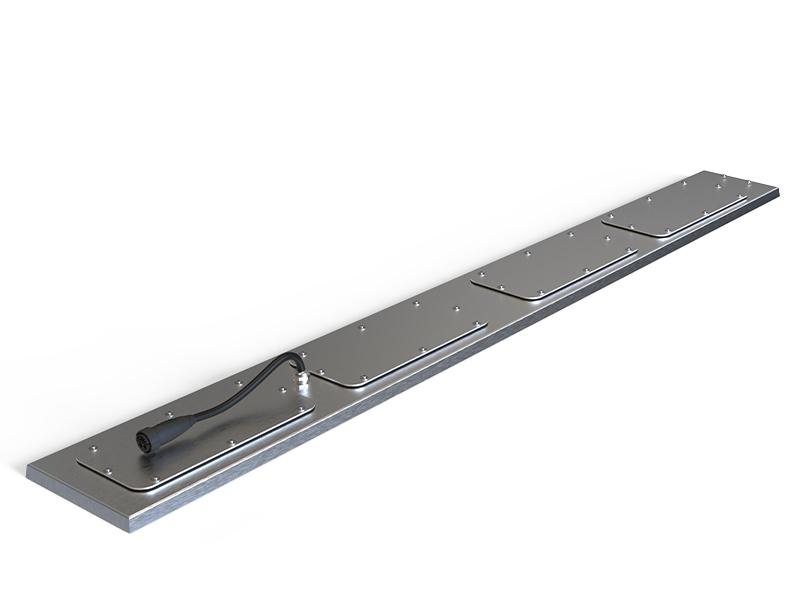

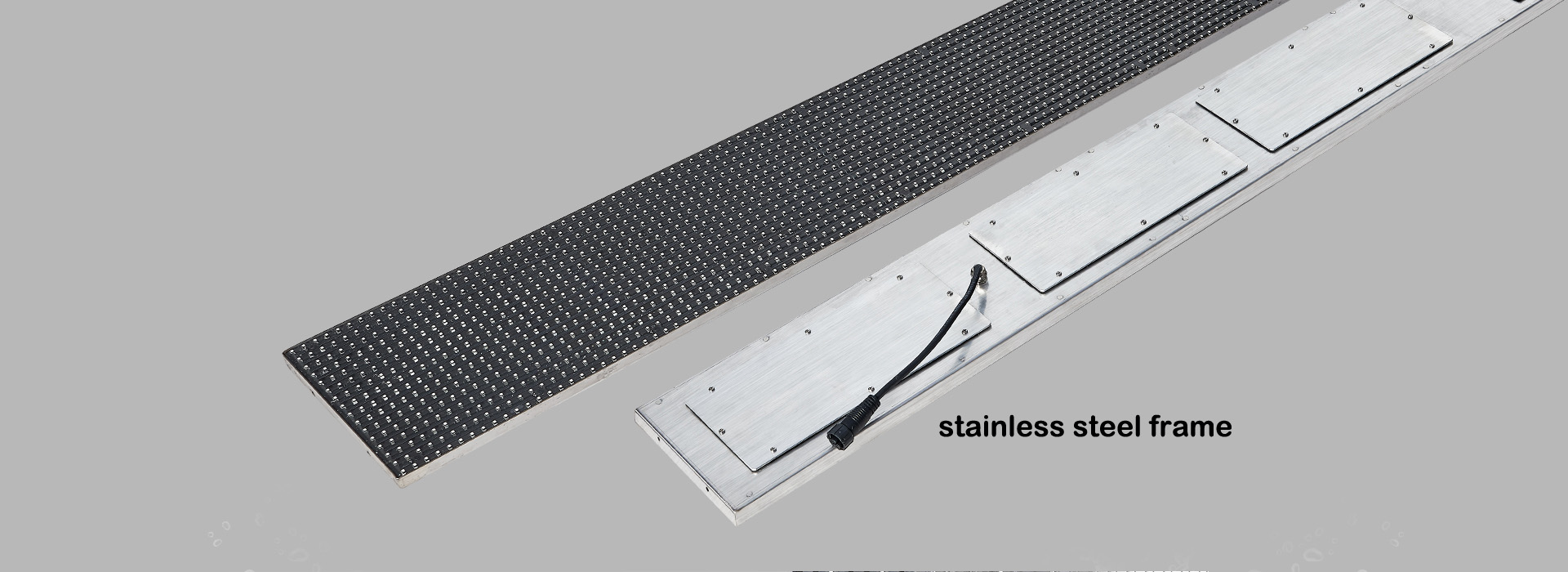

Durable Stainless Steel Frame

Stainless steel frame construction , durable, lifespan up to 10 years.

Specially Designed for High Humidity Applications

Unique mask design with special glue filling technology, IP65 suitable for highly humid conditions.

Ultra Long Transmission Distance For Signal And DC Power

With high-tech signal transmission solution , the transmission distance is more than 15 meters between the controller and the LED panel. Long distance low voltage and directly current supply is for using conveniently and safely.

Simple Structure,Versatile Installations

Customized sizes suitable for various indoor & outdoor application such as building exterior walls, floors, pools,etc.

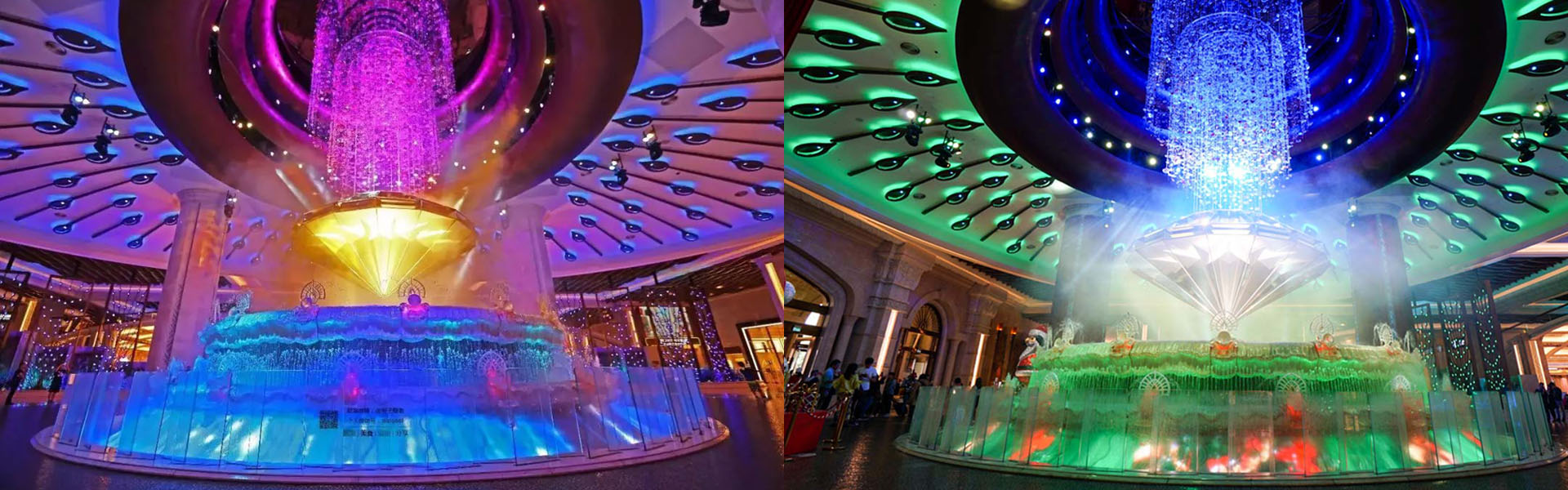

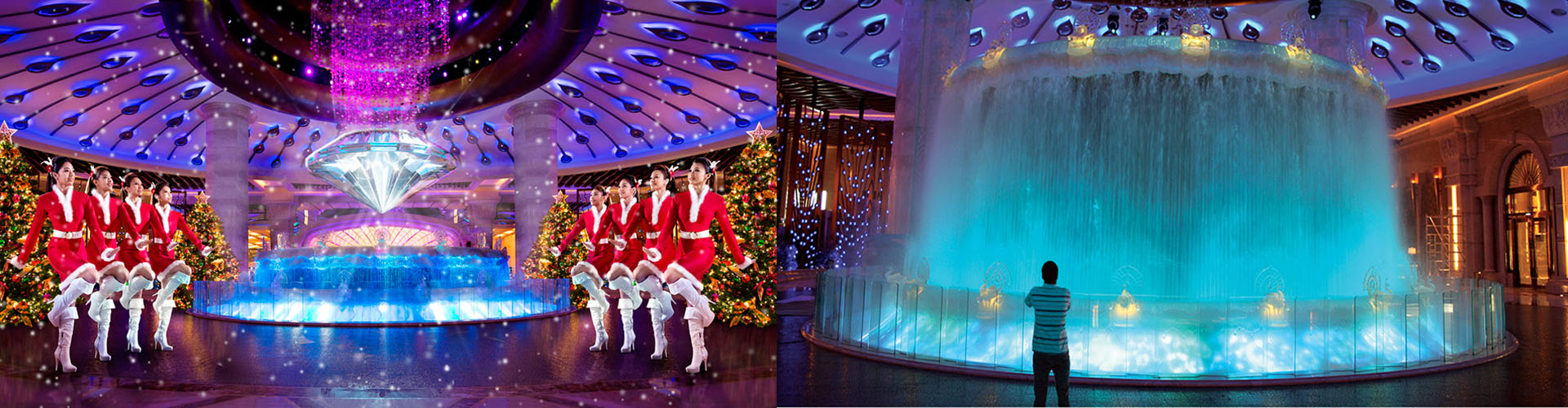

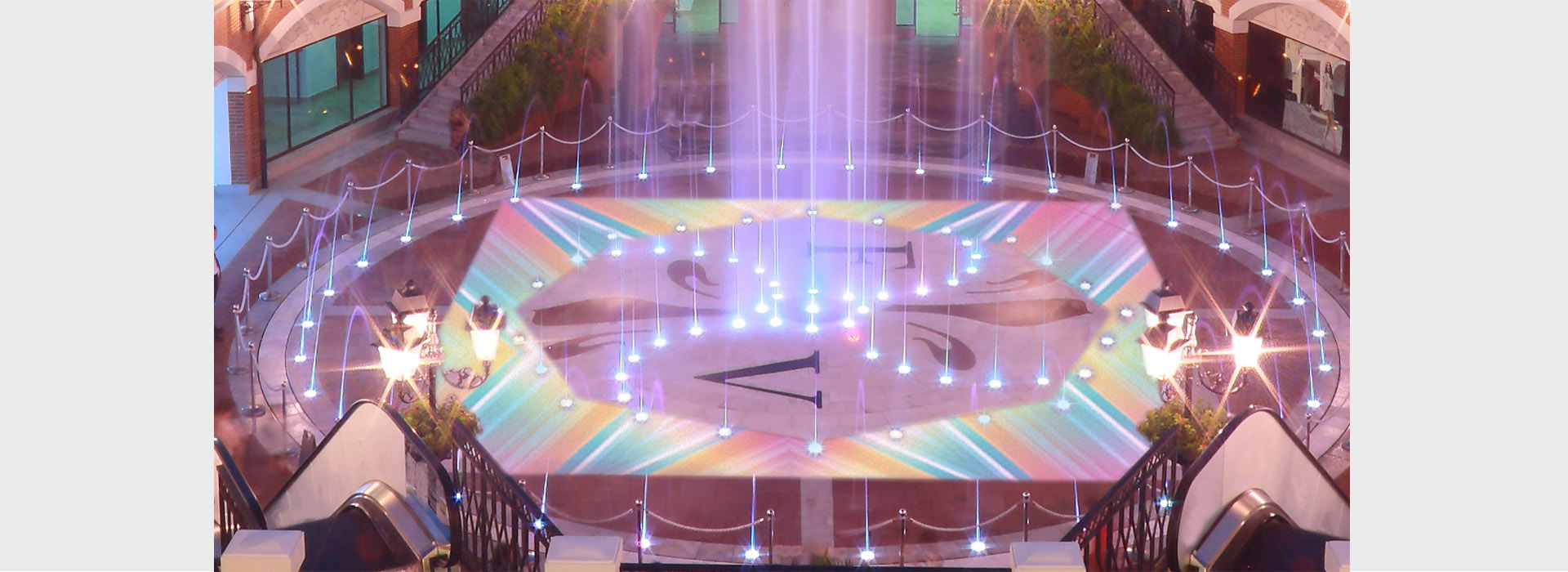

Projects

Specification

Model	Diamond-10	Diamond-20
Pixel Pitch (mm)	10mm	20mm
Pixel Density (pixel/㎡)	10232	512
Pixel Configuration	RGB 3-IN-1 SMD LED
Brightness White (Nits)	2000	3000
Optimal Visual Distance (m)	10	20
Recommend Size (W*H)	172*1332	172*1332
Max Power Consumption (w/m²)	300	300
Average Power Consumption (w/m²)	100	100
Weight (kg/panel)	4.5	4
Power Input	100V ~ 240V AC, 50/60Hz
IP Rate	IP65
