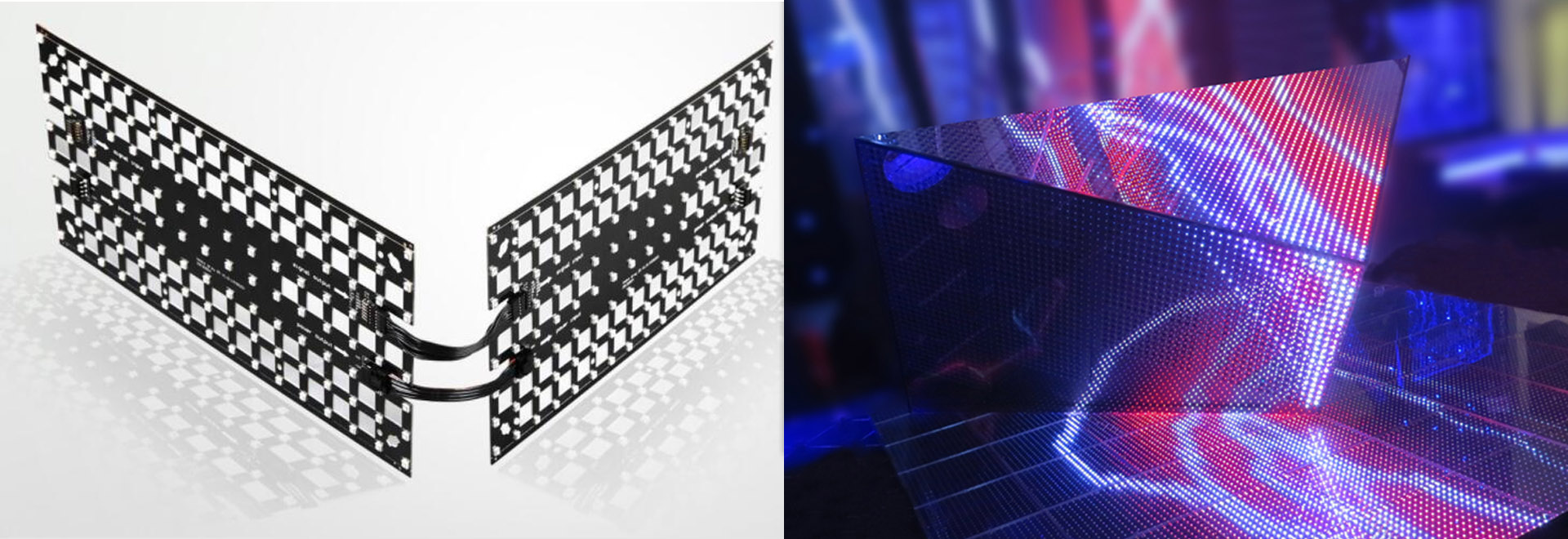

Creative Video Grid LED Display

1. Video grid is a kind of creative LED module, small size and flexible installation

2. You can install them on the wall, lobby, and ceiling to achieve a variety of creative application or as a large LED display.

3. Applying in creating customized LED video solutions with its artistic flexibility , the Video Grid’s compact size makes it extremely suitable for stage designs, set elements, creative ceilings, lobbies, night clubs, and much more.

Inquiry now

Simple Panel, Unlimited Creativity

Easy And Fast Installation

Each module can be connected by two cables. It can be set up quickly and easily with magnets.

Small Volume Saving Transportation Cost

Ultra Thin Design 2mm Thickness Only

Customized Sizes and Pitches For Any Creative Design

Specification

Model	VG-10	VG-25	VG-37
Pixel pitch (mm)	10	25	37.5
Pixel density (Pixels/m²)	10000	1600	712
Pixel configuration	RGB 3-IN-1 SMD LED
Brightness White (Nits)	450	250	180
Transparency	25%	40%	70%
Recommenbed size (WxH)(mm)	320x160	400x200	600x300
Max power consumption (W/m²)	150	65	30
Average power consumption (W/m²)	50	22	10
Weight (kgs/m²)	4	3.3	2.1
Power input	100-240V AC,50/60Hz
Gray scale (bit)	12
Refresh rate (Hz)	1920
View angle	Horizontal:120°;Vertical:120°
Drive mode	Constant current
Signal input	AV,S-VIDEO,VGA,CVBS,HDMI,DVI,ect
Operating temp/Humidity	-40~+60℃/10%~90% RH
Installation	Fixed
Package	Flight case/Carton
Certification	CE,FCC,RoHS
