Outdoor Rotor LED Display XO Rover Plus

1. More than LED display. The perfect combination of video, lighting and movement, provides stunning visual solutions for stage.

2. All X/XO Panels can be used with X Rover Plus.

3. IP65 for all weather applications.

4. Widely uses for concert, touring, exhibitions etc. all indoor and outdoor events.

Inquiry now

Unique Design, Multiple Applications

Integrated with video,lighting and movement 3-in-1 functions,suitable for TV applications and all video recorded events.

Perfect Combination of Art and Technology

Intelligent Control Design

Color touch screen, easy to operate

Super Quiet and Smooth Movements

High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.

High Brightness and Waterproof for Outdoor

Aluminum profile and magnesium alloy die-casting body,light weight and reliable.

Waterproof design for outdoor.

Modular Design, Easy Maintenance

Quick locks make it easy to dismantle and install the LED panel and spot lights.

All In One, Exceed Expectation

X/XO Panels can be used with X Rover Plus, simple panel and cost effective but multiple options.

Specification

Model	X Rover
LED Screen	Pixel pitch	3.9mm
	Resolution	128x128Pixels
	Screen size	500x500mm
	Brightness	4000 nits
	Screen Power(Max)	200W
	View angle(Hor/Vert)	160°/ 160°
	Refresh rate	3840Hz
	Gray scale	14bit
	Signal input	HDMI,DVI
	Control system	Nova
	Maintenance	Front
Led Spot Luminaire	LED Pitch	88mm
	Light souce	15 Watt RGBW 4-in-1
	Beam aperture	8°(15°Optional)
	Lens	32mm diameter, PMMA Optics
	Strobe	1-20 flashes per sceond
	Dimmer	16 bits
	Working Voltage	DC 12V
	Power consumption（Max）	360W
	Body material	Die-cast Aluminum profile
	Life span	≥50000 H
	Movement	Pan:540°, Tilt:120°; 100°/s
	Control	DMX512,RDM, Art-Net, Scan Protocal
Others	DMX channels	32/112
	Body material	Alumnium alloy，Nylon+Fiber
	Weather protection	IP65
	Power input	100~240VAC/50~60Hz
	Power consumption（Max）	550W
	Size	600x600x480 mm
	Flight Case	645x710x730mm
	Net Weight	32kg
	Operating temperature	-40~+60℃
	Storage temperature	-40~+60℃
	Certification	CE,FCC,RoHS

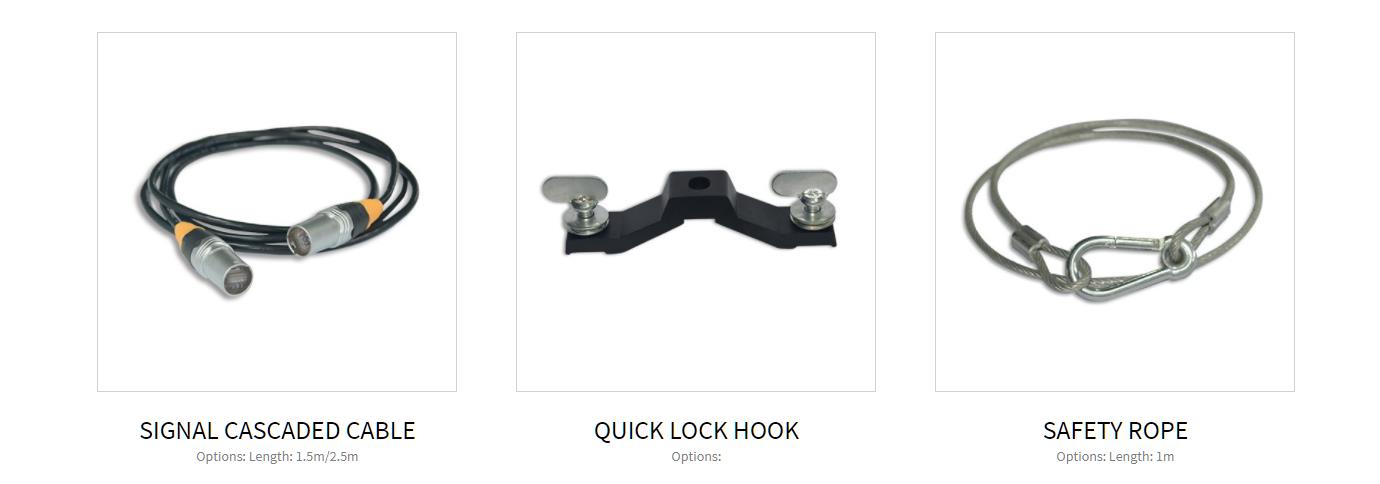

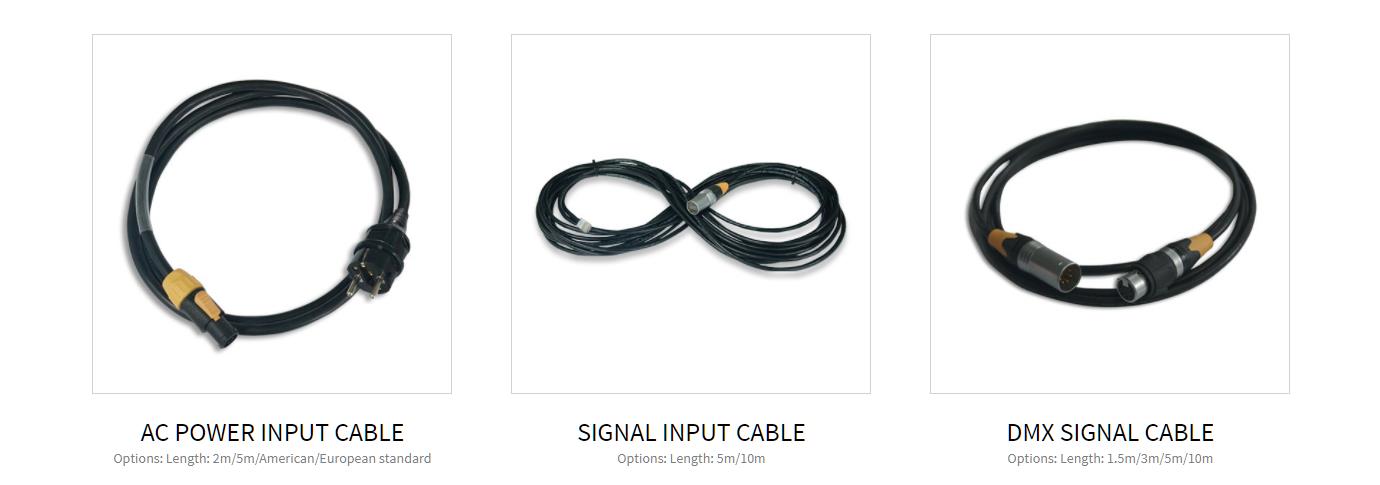

Accessories
