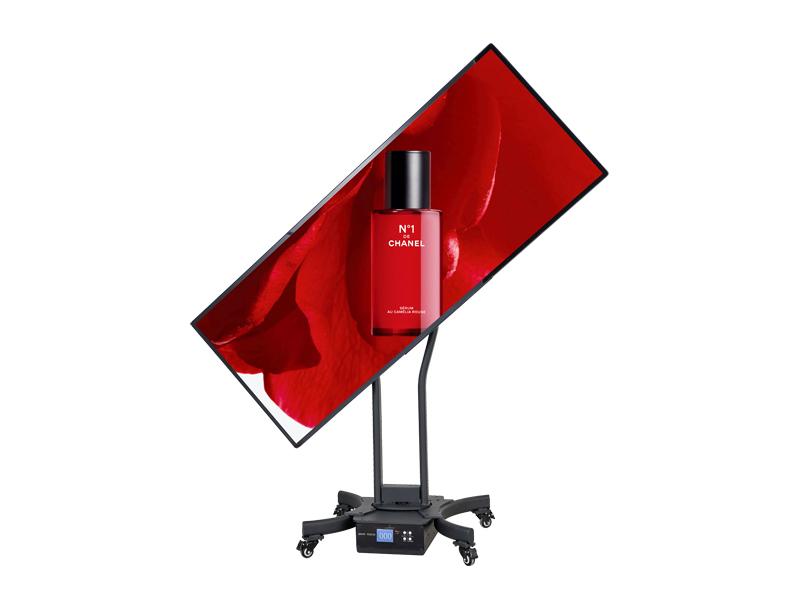

Smart Rotating LED Display Pirotate Series

Integrated with video display and rotation, Pirotate uses intelligent control technology on traditional LED screen and opens a new era of HD display industry. It is an eye-catching poster expands small pitch LED display technology to various scenes and deliver commercial information in all aspects. Intelligent, lightweight, portable and humanized, the best display solution for business, shopping mall, entertainment, exhibition and various activities.

Inquiry now Brochure Download

Automatically Move to Fit Your Contents

Pirotate uses AI identification technology to rotate automatically in both horizontal and vertical directions according to the video contents, and display the images in 360 degrees. This feature is particularly suitable for the application of small pitch LED display in advertising market.

Images Always Keeps Upward

Based on powerful algorithm technology, Pirotate can automatically adjust the direction and the image always keeps upward with good visual experience

Delivers HD and Outstanding Visual Experience

Pirotate uses HDR technology, high-performance driver IC and Flip COB technology to achieve 16 bit grayscale screen and provide an impressive visual experience.

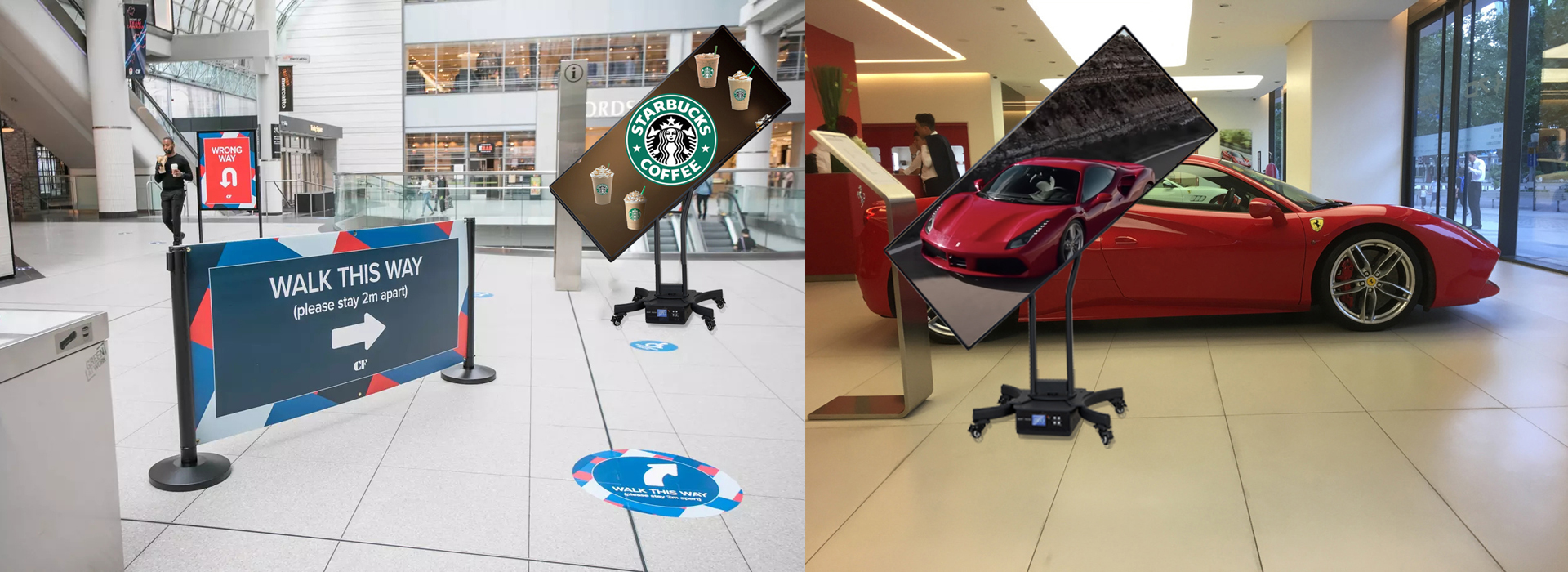

Multiple Installations Methods and Display Everywhere

Different installation ways for widely used in shopping malls, stations, hospitals, exhibitions, stages, pedestrian zones, etc.all indoor and outdoor applications.

Ultra Thin And Light Weight

28mm thickness, slim body, all-aluminum alloy on all sides and ultra-narrow frame can make the screen to a greater extent.

Multiple Control Ways Supports Plug -and-Play Service

● With various interfaces: dual HDMI, USB, RJ 45, and XLR 5-pin for DMX connection etc, suitable for various scenarios.

● Pirotate adopts DMX512 protocol to control the movement and has three control modes: Stand-alone mode, Master/Slave mode and DMX 512 console mode, which are simple and convenient to operate.

● Fast publishing via mobile phone App, U dick, cloud, PC etc.

Specification

Pixel pitch	0.93mm	1.25mm	1.56mm	1.87mm
LEDs	Filp COB	Filp COB	Filp COB	Filp COB
Module size	300mm*168.75mm
Module resolution	320×180 pixels	240×135 pixels	192×108 pixels	640×360 pixels
Unit composition	4*4
Panel size	1200mm675mm40mm
Panel resolution	1280×720 pixels	960×540 pixels	192×108 pixels	640×360 pixels
Pixel density（dot/m²）	1137777	640000	409600	284444
Brightness	600 nits
Optimal visual distance	1m	1.3m	1.6m	1.9m
View angle（Hor/Vert）	170°/170°
Refresh rate	≥3840Hz
Gray scale	14bit-16bit
Color temperature	2000K-12000K
Contrast	10000:1
Scan model	1/64	1/60	1/64	1/54
Power consumption （max/avg）	300 / 120 W/m²	300 / 120 W/m²	300 / 110 W/m²	300 / 110 W/m²
Power supply requirements	AC100-240V(50-60Hz)
IP rating	IP20
weight	15.6Kg
Panel flatness	≤0.1mm
Life span	100000 H
Operating temperature	-10～+45℃
Maintenance	Front
Certificate	CE,FCC,RoHS
interface	WAN,WIFI/4G,HDMI,USB 2.0 ×2
control interface	RJ45,USB-A,DMX512 connector ，APP, WIFI/4G
Installation	Floor standing（standard），Hanging（Optional）
