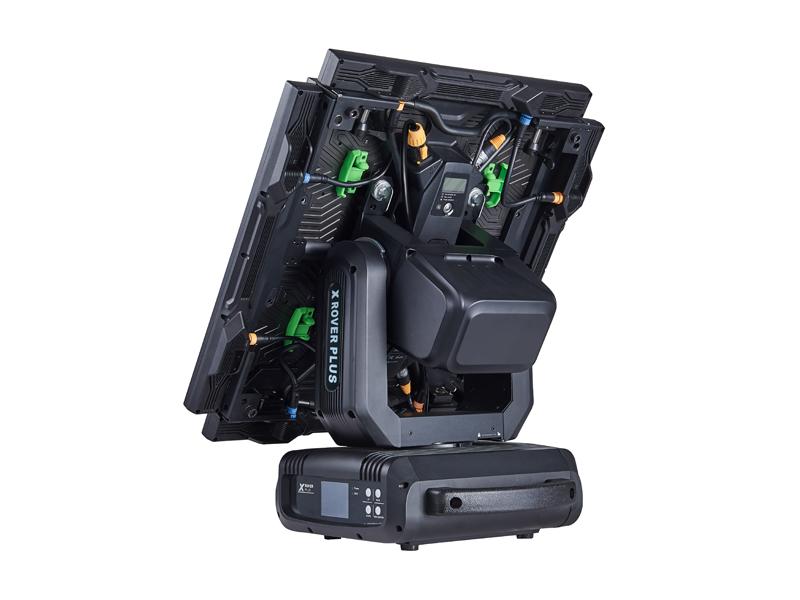

Unique Moving Head LED Display X Rover

A groundbreaking design.

Video,lighting and rotating motor combined,make your stage full of magic.

The maximum rotation angle is 540°,and 100°/s speed rotation speed.

Advanced silent control technology,no noise at work.

Inquiry now Brochure Download

Unique Design, Multiple Applications

Integrated with video,lighting and movement 3-in-1 functions,suitable for TV applications and all video recorded events.

Perfect Combination of Art and Technology

Intelligent Control Design

Color touch screen, easy to operate

Super Quiet and Smooth Movements

High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.

High Brightness and Waterproof for Outdoor

Aluminum profile and magnesium alloy die-casting body,light weight and reliable.

Waterproof design for outdoor.

Modular Design, Easy Maintenance

Quick locks make it easy to dismantle and install the LED panel and spot lights.

All In One, Exceed Expectation

X/XO Panels can be used with X Rover Plus, simple panel and cost effective but multiple options.

Specification

Model	X Rover
LED Screen	Pixel pitch	3.9mm
	Resolution	128x128Pixels
	Screen size	500x500mm
	Brightness	4000 nits
	Screen Power(Max)	200W
	View angle(Hor/Vert)	160°/ 160°
	Refresh rate	3840Hz
	Gray scale	14bit
	Signal input	HDMI,DVI
	Control system	Nova
	Maintenance	Front
Led Spot Luminaire	LED Pitch	88mm
	Light souce	15 Watt RGBW 4-in-1
	Beam aperture	8°(15°Optional)
	Lens	32mm diameter, PMMA Optics
	Strobe	1-20 flashes per sceond
	Dimmer	16 bits
	Working Voltage	DC 12V
	Power consumption（Max）	360W
	Body material	Die-cast Aluminum profile
	Life span	≥50000 H
	Movement	Pan:540°, Tilt:120°; 100°/s
	Control	DMX512,RDM, Art-Net, Scan Protocal
Others	DMX channels	32/112
	Body material	Alumnium alloy，Nylon+Fiber
	Weather protection	IP65
	Power input	100~240VAC/50~60Hz
	Power consumption（Max）	550W
	Size	600x600x480 mm
	Flight Case	645x710x730mm
	Net Weight	32kg
	Operating temperature	-40~+60℃
	Storage temperature	-40~+60℃
	Certification	CE,FCC,RoHS

Accessories

Related Tags :

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : Unique Moving Head LED Display X Rover

Related Products

Stage LED Display X Panel For Touring

1. High quality indoor and outdoor stage LED screen. 2. Unique X structure design, safe and reliable. 3. Magnesium alloy materials frame, light weight and high efficient for installation and transportation. 4. Front and rear maintenance. 5. Pixel pitch P2.9, P3.9 and P4.8, perfect for stage, exhibition,entertainment,sports, large events etc. 6. All Huasuny X/XO panels can be used on X Rover Plus multifunction LED display integrated with video, lighting and movement.

Unique Design Soft LED Display Transparent LED Curtain Crystal Series

1. Originality design transparent LED curtain looks as clear as crystal. 2. Ultra soft and light LED strips, 16mm thickness only and weight is less than 6kg/sq.m. 3. Simple and clean style, no visible frames and cables, transparency up to 80%. 4. Unparalleled flexibility is suitable for versatile shapes LED screens. 5. Unique double-sided LED design can display both sides. 6. Plug-and-play service for easy installation and cost saving.

Light Weight Stage LED Screen LEgenD Flex

1.Innovative and aesthetic design, 2019 reddot award winner product 2. Ultra flexible for different shapes of LED screens, and with all functions of traditional rigid LED cabinets. 3. Unique hinge technology design can keep pixel pitch constant when bending, no distinct bright and dark lines. 4. Magnesium alloy and carbon fiber frame, thin , light weight and reliable.

Outdoor Double Sided Transparent Pixel Strips LED Display PS Series

1. Pixel Strip series led display was designed in 2015. The main structure is Aluminum, with SMD led or DIP led. It can be suitable for indoor or outdoor. 2. Its transparency can reach at 60%, it can give people more visual space. 3. It also can be made into double-sides according to your need. 4. It is thin, light, easy to install and maintain. 5. The size can be custom-made, as well as the shapes. to make beautiful LED video wall. 6. Pixel Strip is widely used in different projects such as exhibition ,shopping mall, restaurant, live shows, etc.

IP65 High Bright Flexible LED Mesh Screen Travi

1. Travi is the fourth generation of HUASUNY’s flexible LED display. 2. The epitome of strength and flexibility 3. Designed to be versatile, allowing you to create any display you can imagine. 4. IP65 for all indoor and outdoors applications.

Rotating LED Display Smart LED Screen Sero Series

Integrated with video display and rotation, Sero uses intelligent control technology on traditional LED screen and opens a new era of HD display industry.It is an eye-catching poster expands small pitch LED display technology to various scenes and deliver commercial information in all aspects.Intelligent, lightweight, portable and humanized, the best display solution for business, shopping mall, entertainment, exhibition and various activities.

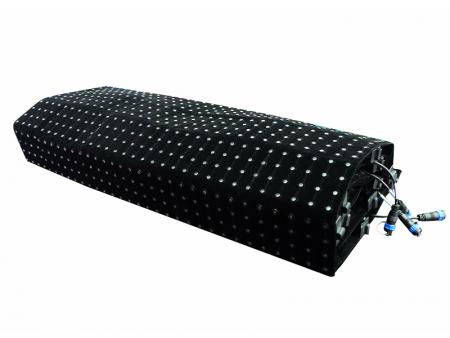

Flexible LED Mesh Screen
